S3N-PR...Wx3
CONTRAST SENSOR
Safety Precautions
Read the precautions for all models at http://www.datasensing.com.
WARNING: This product is not designed or rated to ensure personal safety either
directly or indirectly. Do not us it for such purposes.
WARNING: Do not exceed the rated voltage. There is a possibility of failure and
fire.
CAUTION: Do not use this product above its IP protection ratings. Failing to do so
may damage its components.
CAUTION: DC models shall never be used with AC mains power supply. Failing to
do so may result in explosions or other damage.
CAUTION: Do not disassemble this product. Doing so may cause exposure to the
built-in light source which can damage eyes and skin. Never disassemble it.
GENERAL CONTROLS
Wx3
Teach Button (Wx3)
Performs all User interface interactions.
Output LED
The yellow LED indicates the output status.
Power On LED (Wx3)
The green LED indicates that the sensor is operating.
IO-Link Activity LED (Wx3)
The Blue light is on during IO-Link data exchange.
CONNECTIONS
Wx3
BROWN 1
+10...30VDC
BLACK
4
C/Q
BLUE
3
0V
WHITE
2
PP/PNP/NPN OUT
or REMOTE IN
M8 CONNECTOR
M12 CONNECTOR
2
4
1
3

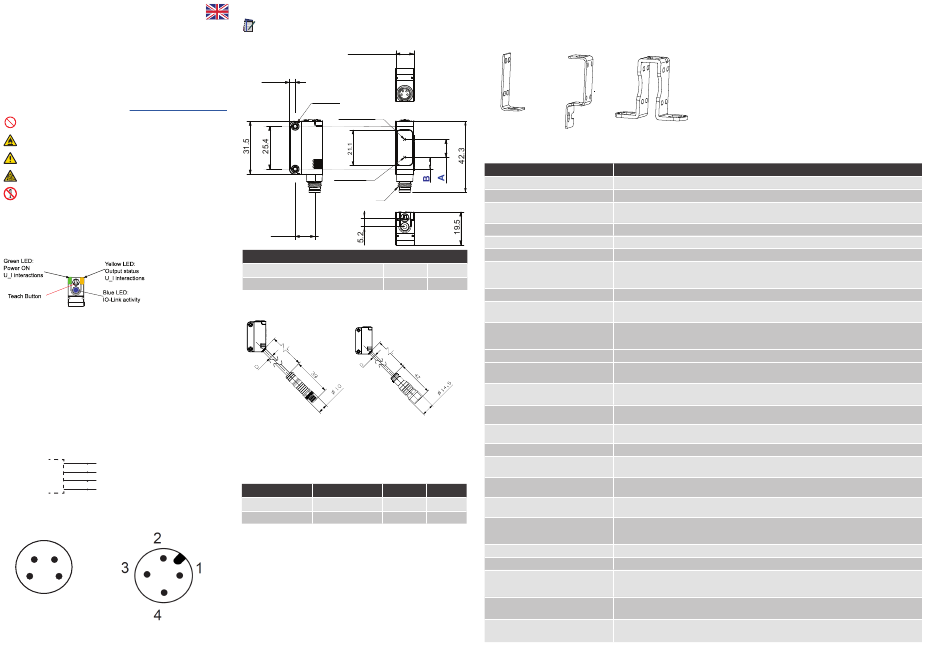

DIMENSIONS
NOTE: "A" and "B" values in the following drawing are
indicated in the "Optical Interaxes" table.
10.8
3,4
M3 X2
Receiver
Emitter
M8x1
11.6
Optical Interaxes
Version
A
S3N-PR-X-Wx3
7.2
M8
M12
S3N-PR-4-XXX-XX
S3N-PR-3-XXX-XX
Version
Pig-tail type
L [mm]
S3N-PR-3-XXX-XX M12 – 4p
250
S3N-PR-4-XXX-XX M8 – 4p
200
INSTALLATION
The sensor can be positioned by mean of the two threaded holes (M3) using two screws (M3x12 or
longer, or M2.5 passing screw + nuts) and relative washers. Maximum tightening torque is 0.5Nm.
Various brackets are available to ease the sensor posiitoning (please refer also to accesories listed
in the catalogue).
95ACC0024
95ACC0025
TECHNICAL DATA
Power Supply:
Ripple:
Current
consumption:
Output:
Output current:
Saturation voltage:
Response time:
B
7.5
Jitter:
Max switching
frequency:
Indicators:
Setting:
Operating
Temperature:
Storage
Temperature:
Operating distance:
Depth of field:
10.8
Emission Type:
Ambient light rejection:
3,4
Vibration:
M3 X2
D [mm]
3.7
Shock resistance:
Receiver
3.7
Housing:
Lenses:
Protection class:
Emitter
Connections:
M8x1
Weight:
11.6
Spot size at nominal distance:
95ACC0026
S3N-PR-W03-OZ
10-30 Vdc; reverse polarity protected
p-p 10% max.
≤40mA (≤20mA @24V)
W03: IO-Link (Pin 4) + configurable I/O (Pin 2)
100 mA max. short circuit protected
1 V max.
16us/10.5us selectable
min. response at max fsw: 8us
by IO-Link parametrization
8us/4us (default: 4us)
30kHz/60kHz selectable (default: 60kHz)
by IO-Link parametrization
Yellow: output status
Green: power on
Blue: IO-Link activity
Teach button or IO-Link
-25°C...55°C (not condensing)
-40 ... +70 °C
12mm
± 3mm
blue (460nm) / green (525nm) / red (633nm) EC 62471 EXEMPT RISK GROUP (RG0)
According to 60947-5-2
0.5 mm amplitude, 10 ... 55 Hz frequency, for each axis (EN60068-2-6)
11 ms (30 G) 6 shock for each axis (EN60068-2-27)
Body: Glass filled technopolymer
Indicators: TPE
Actuators: POM
PMMA
IP67
On S3N-PR-3-xxxxx cable with M12 4-poles connector
On S3N-PR-4-xxxxx cable with M8 4-poles connector
On S3N-PR-5-xxxxx M8 connector 4 poles
50 g. max. cable versions /
10 g. connector versions
1.0mm x 3.5mm
Need help?
Do you have a question about the S3N-PR W 3 Series and is the answer not in the manual?
Questions and answers
