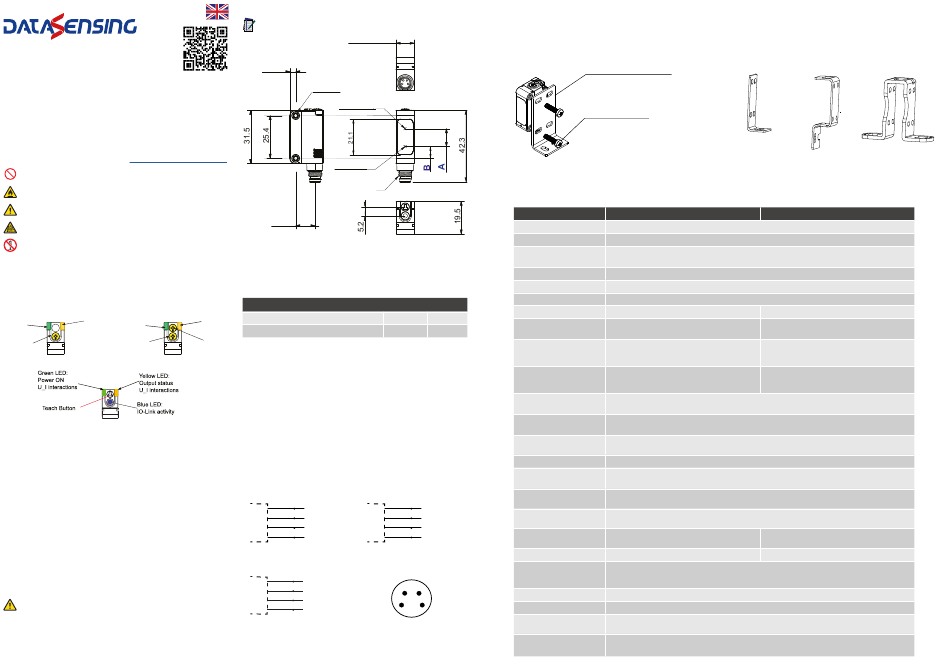

Datasensing S3N-PR T5 Series Manual

806000670 Rev. A ENG Ed 02/2023
Datasensing S.r.l.
Strada S. Caterina 235 - 41122 Modena - Italy
Tel. +39 059 420411 - Fax +39 059 253973
web: www.datasensing.com
email: info@datasensing.com
S3N-PR...T5X
POLARIZED RETROFLEX FOR TRANSPARENT OBJECTS
Safety Precautions
Read the precautions for all models at http://www.datasensing.com.
WARNING: This product is not designed or rated to ensure personal safety either
directly or indirectly. Do not us it for such purposes.
WARNING: Do not exceed the rated voltage. There is a possibility of failure and
fire.
CAUTION: Do not use this product above its IP protection ratings. Failing to do so
may damage its components.
CAUTION: DC models shall never be used with AC mains power supply. Failing to
do so may result in explosions or other damage.
CAUTION: Do not disassemble this product. Doing so may cause exposure to the
built-in light source which can damage eyes and skin. Never disassemble it.
GENERAL CONTROLS
T51
Single trimmer Models
Dual trimmer Models
Yellow LED:
Green LED:
Green LED:
Output status
T51: Stability
T51: Stability
Sensitivity adjust
Sensitivity adjust
T51: 1 turn T51: 1 turn
T53
Teach Button (T53)
Performs all User interface interactions.
Output LED
The yellow LED indicates the output status.
Stability LED (T51)
The green LED ON indicates that the received signal has a safety
margin greater than 20% compared to the output switching value.
Power On LED (T53)
The green LED indicates that the sensor is operating.
Sensitivity Knob (T51)
The trimmer can be used to adjust sensitivity; the operating distance
increases turning the trimmer clockwise.
IO-Link Activity LED (T53)
The Blue light is on during IO-Link data exchange.
Dark/Light Trimmer (T51)
This trimmer can be used to set LIGHT or DARK operation mode.
CAUTION: The trimmer rotation is limited to 250° by a mechanical stop.
Do not apply excessive torque when adjusting (max 0.02 Nm).
DIMENSIONS
NOTE: "A" and "B" values in the following drawing are indicated in the
"Optical Interaxes" table.
10.8
3,4
M3 X2
Receiver
Emitter
M8x1
11.6
Optical Interaxes
Yellow LED:
Version
Output status
S3N-PR-X-T5X-XX
L/D selection
CONNECTIONS
T51 (PNP) T51 (NPN)
BROWN 1 +10...30VDC
BLACK 4 PNP OUT
BLUE 3 0V
WHITE 2 N.C.
T53
BROWN 1 +10...30VDC
BLACK 4 C/Q
BLUE 3 0V
WHITE 2 NPN/PNP OUT
INSTALLATION
The sensor can be positioned by mean of the two threaded holes
(M3) using two screws (M3x12 or longer, or M2.5 passing screw +
nuts) and relative washers. Maximum tightening torque is 0.5Nm.
Various brackets are available to ease the sensor posiitoning (please
refer also to accesories listed in the catalogue).
Mounting Bracket (various options)
TECHNICAL DATA
Power Supply:
Ripple:
Current
consumption
Output:
Output current:
Saturation voltage:
Response time:
A B
Switching
0 17.2
frequency:
Indicators
Setting:
Operating
Temperature:
Storage
Temperature:
Operating distance:
Emission Type:
Ambient light rejection:
Vibration:
BROWN 1 +10...30VDC
Shock resistance:
BLACK 4 NPN OUT
BLUE 3 0V
WHITE 2 N.C.
LIGHT/DARK selection:
PNP/NPN Output:
M8 CONNECTOR
Housing:
2 4
Lenses:
1 3 Protection class:
Connections:
Weight:
Mounting screws
M3X12 or longer (screwing)
M2.5x12 or longer (passing)
95ACC0024
S3N-PR-T51
10-30 Vdc; reverse polarity protected
p-p 10% max.
≤35mA (≤55mA below 15V supply)
IO-Link (Pin 4) + configurable I/O (Pin 2)
100 mA max. short circuit protected
2 V max.
0.5 ms
1 kHz
Yellow: output status
Green: Stability
Sensitivity: 1 turn trimmer Setting distance, L/D configuration, special
L/D selection (-P, -N models only)
-25°C...55°C (not condensing)
-40 ... +70 °C
0...2 m (R7)
Red LED 635nm EC 62471 EXEMPT RISK GROUP (RG0)
According to 60947-5-2 plus reinforced immunity (internal test)
0.5 mm amplitude, 10 ... 55 Hz frequency, for each axis (EN60068-2-6)
11 ms (30 G) 6 shock for each axis (EN60068-2-27)
By selector on -N and -P models.
By purchasing code on other models
Selection by purchasing order Configurable through IO-Link configuration
Body: Glass filled technopolymer
Indicators: TPE
Actuators: POM
PMMA
IP67
On S3N-PR-2-xxxx: 3 poles cable Ø3.5mm;
On S3N-PR-5-xxxxx M8 connector 4 poles
50 g. max. cable versions /
10 g. connector versions
95ACC0025 95ACC0026
S3N-PR-T53
1 ms
500 Hz
Yellow: output status
Green: power on
Blue: IO-Link activity
functions by Teach button or IO-Link confi-
guration (see settings table)
By teach button or IO-Link configuration
