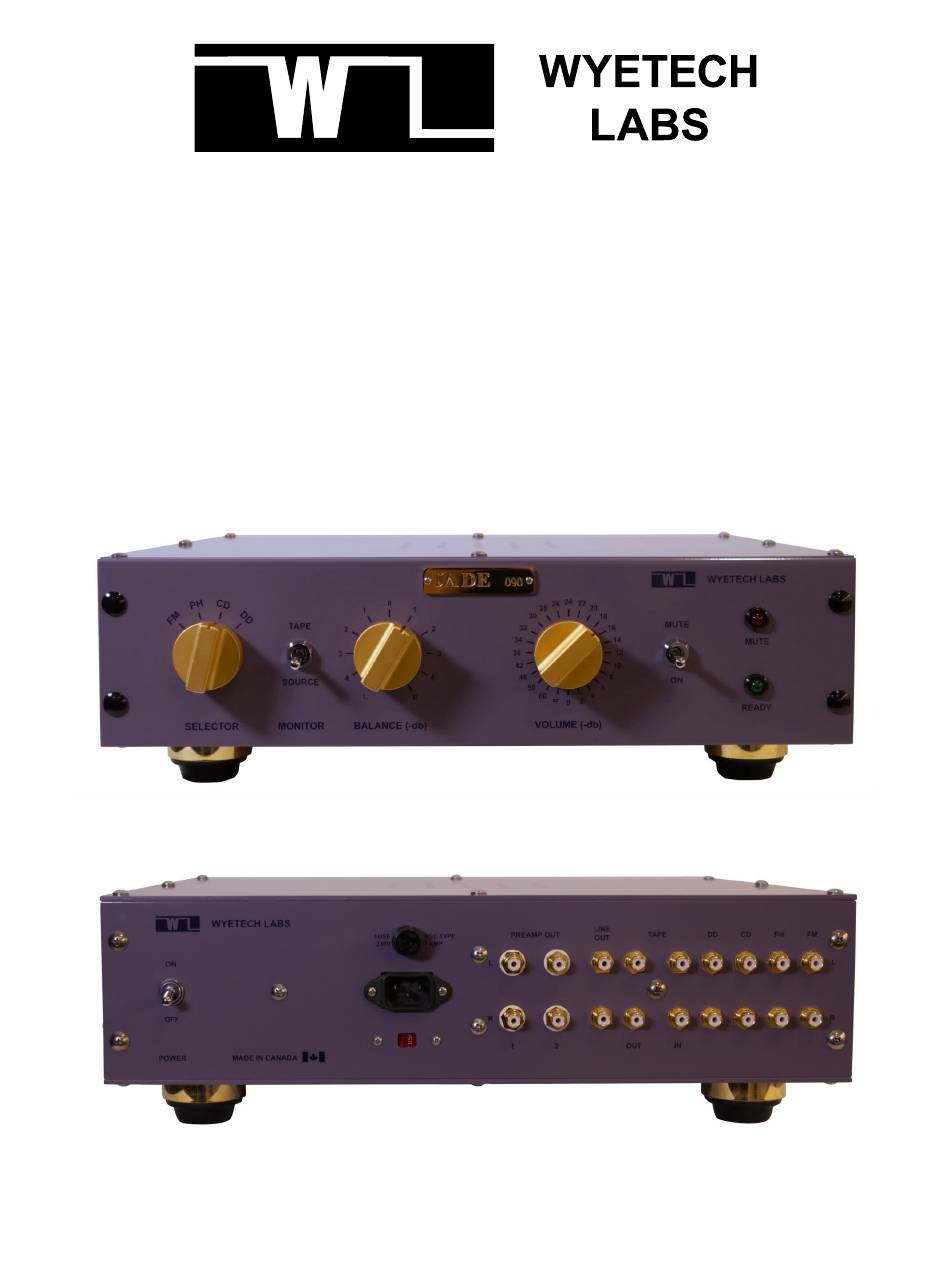

- Page 1 Owner’s Manual Jade Line stage preamplifier (Serial number 073 and up)
-
Page 2: Table Of Contents
Diagnosing problems with signal tubes........................5 Circuit Description............................. 6 Power Supplies................................6 Mechanical Construction............................. 6 Circuit Boards................................7 Automatic Power Sequencing & Muting........................7 Selectable Gain Control.............................. 7 Technical Specifications........................... 8 Limited Warranty............................9 Jade (2.1) line stage preamplifier – owner’s manual... -
Page 3: Introduction
Introduction Thank you for purchasing the Wyetech Labs Jade line stage preamplifier. You are in possession of one of the best sounding, most ruggedly constructed preamplifiers on the consumer market. This unit has been completely hand crafted using precision quality components. -
Page 4: 6Sn7'S In Preamp
To power up place power switch in up position and wait for automatic sequence to complete. The green and red LED’s should immediately turn on. After 45 seconds the red LED (mute ) will Jade (2.1) line stage preamplifier – owner’s manual... -
Page 5: Automatic Muting
A rotary switch is used to select one of four inputs: FM – used for tuners PH – phono / turntable (note the Jade doesn’t include a phono stage) CD – Compact Disc DD – Digital source component such as a DVD, Blu-ray or streaming media player. -
Page 6: Circuit Description
Non magnetic stainless steel and brass hardware is used throughout. • All wiring to / from the PCB boards use screw down terminal connections. • Gold plated machined brass feet with 3M inserts. Jade (2.1) line stage preamplifier – owner’s manual... -
Page 7: Circuit Boards
(Hand crafted printed circuit boards using precision double turret terminal posts) Our fixed terminal hand crafted printed circuit boards are a new technology used in construction and is a first in the industry. Wyetech Labs is always looking for ways to improve reliability and construction. -
Page 8: Technical Specifications
Power Requirements Switch selectable 115/230 Volt 50/60 Hz 35 Watts Weight (Net) 20 lbs (9 kg) Weight (Shipping) 25 lbs (12 kg) Dimensions 17” W x 14 1/4” D x4 1/4” H Jade (2.1) line stage preamplifier – owner’s manual... -
Page 9: Limited Warranty
Wyetech Labs or impose any obligation on it, in connection with the sale of any equipment other than as stated in this warranty and outlined above. In no event will Wyetech Labs be responsible or liable for other than is stated herein, such as incidental or consequential damage, interrupted operation or other causes.
