Mowrator S1 User Manual

Hide thumbs Also See for S1:
Table of Contents

Advertisement

Quick Links

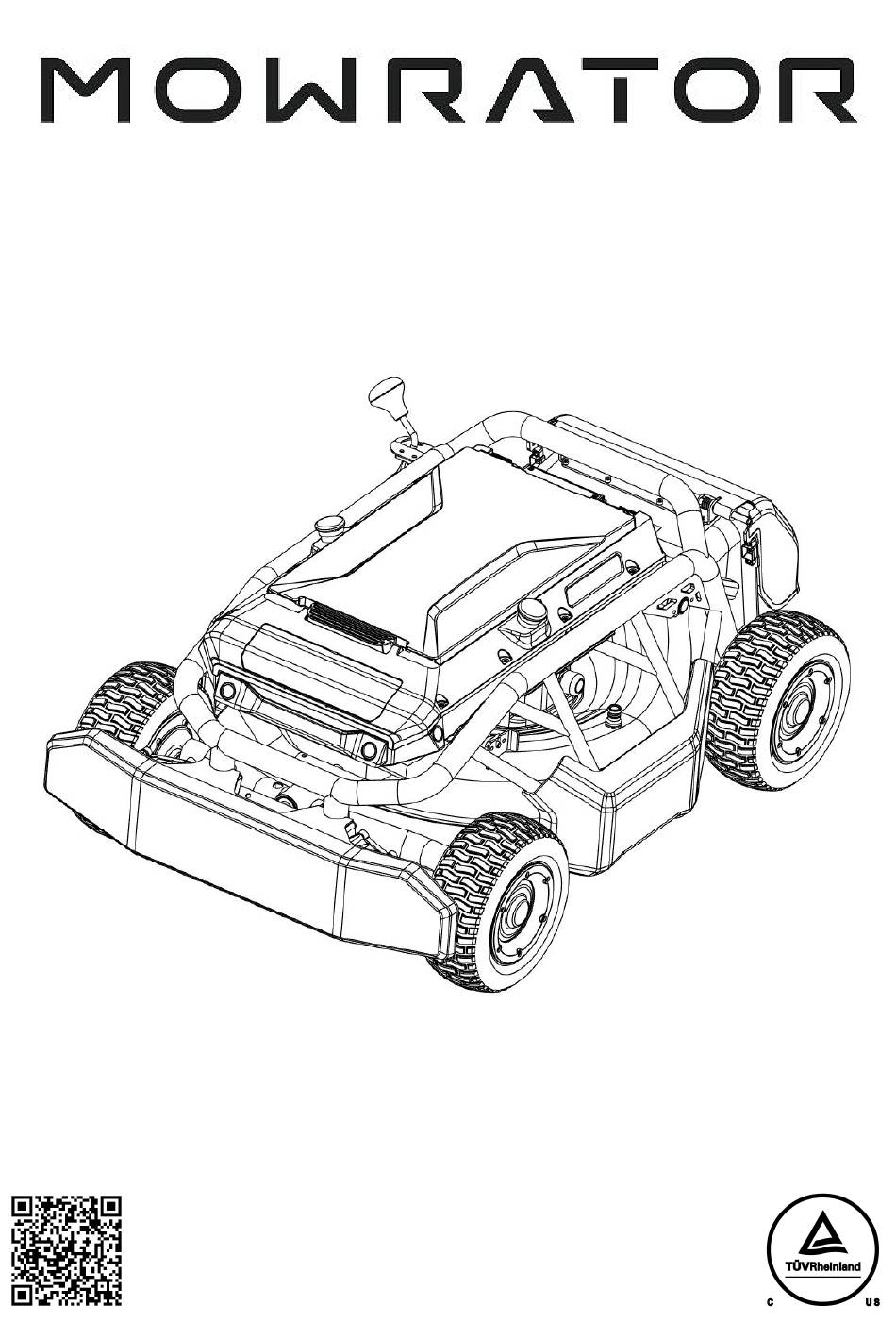

User Manual
Mowrator S1 21" AWD - ZMLMS214WG1
V1.0 2024.04
Warning：
To reduce the risk of injury, users must read and understand this User Manual before
using this product. Please keep this manual properly for future reference.
You can get the instructional video by scanning the QR code below.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S1 and is the answer not in the manual?

Questions and answers

Donna Rose Herring
May 16, 2025

What is C1 and C2 and what does Try C2 warning error mean

0
Danny Brooks
May 3, 2025

Do you have to keep holding down the blade button for the blade to run?

0

Related Manuals for Mowrator S1

Summary of Contents for Mowrator S1

  • Page 1 User Manual Mowrator S1 21” AWD - ZMLMS214WG1 V1.0 2024.04 Warning： To reduce the risk of injury, users must read and understand this User Manual before using this product. Please keep this manual properly for future reference. You can get the instructional video by scanning the QR code below.
  • Page 2 Sincerely thank you for purchasing the high-quality Mowrator S1 21" AWD smart lawn mower produced by Shenzhen Zongguan Innovation Co., Ltd.! Hope you enjoy using it. If you encounter any problems during use, or if you need to order replacement parts or apply for repairs, please contact us through the following methods, and we will arrange professionals to provide you with solutions as soon as possible.

  • Page 3: Table Of Contents

    Contents Mowrator S1 21'' AWD ................... 1 Safety Signs ......................1 Product description ....................8 Unboxing .........................11 Usage Guide ......................14 Security protection project ...................19 Optional Attachments ....................20 Firmware upgrade ....................21 Maintenance ......................21 Troubleshooting .....................22 Mowrator S1 Professional Remote Controller ..........26 Product description ....................

  • Page 4: Mowrator S1 21'' Awd

    Mowrator S1 21'' AWD Safety Signs Safety signs and their instructions deserve your careful attention and understanding. The purpose of safety signs is to alert you to possible hazards. Safety signs by themselves do not eliminate any hazard and cannot be used for accident prevention.
  • Page 5 Keep away from Keep away from flammable materials to flammable materials prevent fires. Prevent burns. The arrow indicates the area with high temperature. Be careful to avoid touching it to prevent burns. Recyclable Recycling, can be reused for recycling after disposal. Read and understand Please read and understand the user the user manual.
  • Page 6 Limit distance from The remote controller is recommended for remote controller. use within 65 feet of the machine. Clean the filter. The filter at the position indicated by the two arrows needs to be cleaned regularly. After placing the battery ， Lock the clasp. Lock the battery clasp ⎓...
  • Page 7 1. Keep children away from the mowing area and under responsible supervision, as a accident may occur if the operator is not alert to the presence of children. Children are often attracted to lawn mowers and lawn mowing activities. They do not understand the dangers involved.
  • Page 8 6. When operating the machine, please always look at the range of movement of the machine and be ready to stop at any time. When the machine is traveling on non-working roads, please release the blade-start button to stop the blade rotation. 7.
  • Page 9 1. Please check whether the blade is installed correctly, whether the blade screws are tight, and whether the blade is bent, cracked, worn or otherwise abnormal. If so, please replace the MOWRATOR special blade according to the manual instructions before operating the machine.
  • Page 10 6. Before starting the blade, please adjust the blade to a suitable height level and confirm that the machine is in a safe position. 7. After powering on the blade, when you release the blade-start button on the remote controller, the blade should stop rotating immediately. If not, please stop using it immediately and contact an authorized service provider.

  • Page 11: Product Description

    Please read this manual carefully to learn how to operate and maintain your product to avoid personal injury and product damage. You can visit the https://www.mowrator.com website to get the latest information on MOWRATOR. If you need repairs, replacement parts or other services, please contact the authorized service provider and provide the product model and serial number, which is on the nameplate in the battery compartment of the machine.
  • Page 12 Chassis Steering system Zero-Turn steering system (ZTR) Maximum walking speed 1.5 m/s 3.4 mph Maximum Climbing Cutting system Blade size 21 in Blade cover DC06 High strength metal material Maximum cutting torque 6 ft lb Blade height 1.5-4.3 in,5 adjustable gears (1.5, 1.9, 2.6, 3.3, 4.3 in) Blade speed Max 3200 rpm (can be manually adjusted)
  • Page 13 Battery life 12Ah Battery 18Ah Battery Light load 1.2~1.5h 1.75~2.25h Medium load 0.9~1.2h 1.25~1.75h Heavy load 0.5~0.9h 0.75~1.25h Note：Actual run time will vary depending on grass quality (variety, density, moisture, etc.). How to improve battery life: The cut-off height should not exceed one-third of the height of the grass at one time. Use a self-sharpening, low-lift blade.

  • Page 14: Unboxing

    2.When the ultrasonic radars detect an obstacle, it will reduce the walking speed or stop the machine. This can be relieved by controlling the machine to move in the direction without obstacles. For different obstacle distances, the corresponding indicator lights and machine status are as follows: Obstacle distance Indicator color...
  • Page 15 Install drive wheels Steps： ①.Install the drive wheel into the travel motor with the tire pattern pointing in the forward direction of the machine. ②.Align the three triangular arrows on the hub cover with the triangular arrows on the motor and install the hub cover. ③.Insert and tighten 6 screws（M4x25mm）into the 6 holes on the hub cover to complete the installation.
  • Page 16 Install the grass bag Note: Before installing the grass bag, please check whether the grass bag is damaged. If it is damaged, please replace it. Steps to assemble grass bag: Slide the grass bag fabric onto the metal frame of the grass bag, and then fasten the rubber strips around the opening of the bag to the metal frame.

  • Page 17: Usage Guide

    Install the mulching insert If you want to shred the grass instead of discharging it out or collecting it into the grass bag, open the grass outlet cover, and insert the mulching insert in the direction of the arrow. Usage Guide Start the lawn mower ①.
  • Page 18 ③. Unlock the battery buckle; ④. Hold the battery handle and lift out the battery. Blade selection The standard configuration of MOWRATOR is a low-lift blade. You can choose a high-lift blade or a high-lift shredding blade according to your needs. name...
  • Page 19 Note: 1. High-lift blades and high-lift shredding blades will reduce the machine’s battery life. 2. Wear protective gloves when maintaining and replacing blades. 3. A 15mm wrench is required to replace the blade. Remove and install the Blade Note： 1. It is recommended to replace the blade regularly. If the frequency of use is high or the environment is harsh, the replacement frequency will be faster.
  • Page 20 fig1 fig2 Cleaning the blade cover The blade cover is equipped with a quick-release water inlet for connecting the faucet. You can clean the inner wall of the blade cover by filling the inlet with water. The operation steps are as follows: ①.
  • Page 21 Indicator light status Light status Meaning Action Steady green Everything is fine with —— the robot. Breathing green Not connected with Turn on the remote controller and remote controller. connect the robot correctly. Flashing green The robot is being paired The remote controller enters the with remote controller.

  • Page 22: Security Protection Project

    Note： 1. To prevent overloading, slow down the cutting speed or increase the cutting height, and never try to remove too much grass at one time. 2. The battery pack will generate heat during operation. Heat dissipates more slowly in hot weather.

  • Page 23: Optional Attachments

    Protection item Triggering conditions Machine action Release condition Stop for Obstacles are detected Stop the blade Move in the opposite obstacles within 1ft.(30cm) from rotation and direction to the (from ultrasonic the machine in any walking. obstacle to release detection) direction from the front, left or right.

  • Page 24: Firmware Upgrade

    3. Turn on the robot and connect the remote controller to the robot. 4. Use the included OTG cable to connect the remote controller and mobile phone. 5. Open the MOWRATOR APP and operate according to the prompts in the APP interface. Maintenance 1.

  • Page 25: Troubleshooting

    Storage and safekeeping 1. Please store the lawn mower in a cool, dry and covered place, away from children. 2. It is prohibited to place the machine with the top side down. 3. It is prohibited to place objects exceeding 20Kg on the top of the machine. 4.
  • Page 26 on the air filter regularly. There is a short circuit. Check the battery connector for water or conductor debris. Unofficial battery or battery Restart and try again, or replace the is damaged. battery. The blade The robot is in After confirming safety, release the cannot rotate or emergency-stop / stop two emergency stop buttons located...
  • Page 27 After clearing the error condition, press the button on the remote controller to clear the error state and try again. The power system of the Wait for the temperature to return to blade is overheating. normal and try again. Battery low, the blade is Charge or replace the battery.
  • Page 28 controller to clear the error state and try again. The power system of Wait for the temperature to return to chassis is overheating. normal and try again. The mowed lawn is The blade is dull. Replace the blade or sharpen it. not neat Improper blade height.

  • Page 29: Mowrator S1 Professional Remote Controller

    Mowrator S1 Professional Remote Controller Product description Mowrator S1 Professional Remote Controller is a remote control device specially designed for smart lawn mowers. It contains travel control joystick, blade motor control, mowing mode switch, etc. It contains cruise control button, auto left/right U-turn button, and other auxiliary driving function buttons.
  • Page 30 Product introduction The names and functions of each component are as shown in the figure: Product parameters Model ZMRCSAFG1 Device Weight 1 lb information Size 6.9x6.7x2.3 in Battery Built in 18650 lithium-ion battery Battery nominal voltage 3.6V Battery capacity 2550mAh Battery energy 9.18Wh Battery and...

  • Page 31: Operating Instructions

    Radiated power(EIRP) 9 dBm Assisted driving function is running Cruise control, auto U-turn Others Support Operating Instructions Set PIN code Press and hold the power button to turn on the screen. The first boot requires setting a PIN code. You can later modify or reset the PIN code on the setting page of screen. Walking control Move the left joystick forward and backward to control the machine's forward and backward movement.
  • Page 32 Blade speed adjustment 1. Turn the Intelligent level switch to select the mowing mode. Turn the switch to the far left, and when the corresponding mark is M, it is manual mode. Turn the switch to the middle or far right, and when the corresponding mark is SMART, it is Smart mode. 2.
  • Page 33 a) Cruise control 1. Short press the cruise control button, and the machine will automatically maintain its current posture and move forward in a straight line. When activating the constant-speed straight-travel function, the steering joystick can be used in conjunction to adjust the direction of travel. 3.
  • Page 34 Robot status bar Remote control status bar Robot information display area This icon displays yellow to indicate that the ultrasonic radar in the corresponding direction has detected an obstacle, and displays red to indicate that the obstacle is too close (less than 30cm). Assisted driving status area When the corresponding icon lights up, it indicates that the assisted driving task is being performed.
  • Page 35 When the robot triggers protection, errors/warnings, etc., it will be prompted here. Tap on the notification bar will expand it, allowing you to view detailed information, obtain operation tips, clear warning/error prompts, and other operations. Settings page Ultrasonic sensor switch: There are 4 ultrasonic sensors on the front left, front right, left and right sides of the robot for obstacle avoidance.

  • Page 36: Troubleshooting

    . If the charging is successful, there will be a corresponding prompt on the display. Note: Some dedicated chargers may not be able to charge the Mowrator remote control. Please use a more universal charger. Troubleshooting...

  • Page 37: Storage Guidelines

    The joystick has 1.The joystick needs calibration. 1.Calibrate the joystick in been returned to the settings. If the problem center, but the still exists after calibration, machine is still you need to contact moving slowly after-sales service. The machine is 1.Not connected to the machine.
  • Page 38 Avoid placing the battery pack near anything that may cause a short circuit, such as paper clips, coins, keys, screws, nails, and other metal objects. 14.Prohibited for use on products other than Mowrator to avoid unknown risks and issues.

  • Page 39: Product Overview

    Product Overview This battery is designed for compatibility with MOWRATOR products and is crafted with lithium iron phosphate cells, ensuring safety and reliability. Please read this manual carefully to understand how to operate and maintain your product properly, preventing unnecessary losses.
  • Page 40 70min 90min With Mowrator 600W Supercharger， Model 600CG4810L 1.5h 2.25h Battery life With Mowrator S1 series 3000 ㎡ (0.75 ac) 4500 ㎡ (1.125 ac) Single battery mowing area With Mowrator S1 series Battery type Lithium iron phosphate Number of charge cycles...
  • Page 41 Indicator Light Battery Levels: Battery level 1# light 2# light 3# light 4# light 0~12.5% Blinking 12.5%~25% Solid 25%~37.5% Solid Blinking 37.5%~50% Solid Solid 50%~62.5% Solid Solid Blinking 62.5%~75% Solid Solid Solid 75%~87.5% Solid Solid Solid Blinking 87.5%~100% Solid Solid Solid Solid Battery Power On/Off...

  • Page 42: Troubleshooting

    Solid Green Charging complete — Solid Yellow Standby mode Battery can be inserted for charging Solid Red Battery or charger Resume usage after the battery or overheating charger returns to normal temperature Blinking Red Internal error in the Please restart or contact customer battery or charger support Troubleshooting...

  • Page 43: Warranty Guide

    This product is a multi-functional lawn mower that will provide an efficient, intelligent and stable lawn mowing experience when the power supply is working normally and the components are not damaged. Visit https://www.mowrator.com for the latest User...
  • Page 44 MOWRATOR may formulate. MOWRATOR is not responsible for any losses caused by the user's failure to use the product in accordance with this document and the "User Manual".
  • Page 45 Be sure to understand the relevant local laws and regulations. Mowrator is not responsible for any of your usage. Before using the Mowrator App, you must agree to the Mowrator App Terms of Use and the ZGI Privacy Policy. These Terms of Use and Privacy Policy limit some of Mowrator's legal liabilities, please read them carefully within the app.

  • Page 46: Fcc Statement

    FCC Statement Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
  • Page 47 In general, the closer you are to a wireless base station antenna, the lower the power output. While there may be differences between the SAR levels of various devices and at various positions, they all meet the government requirement.
