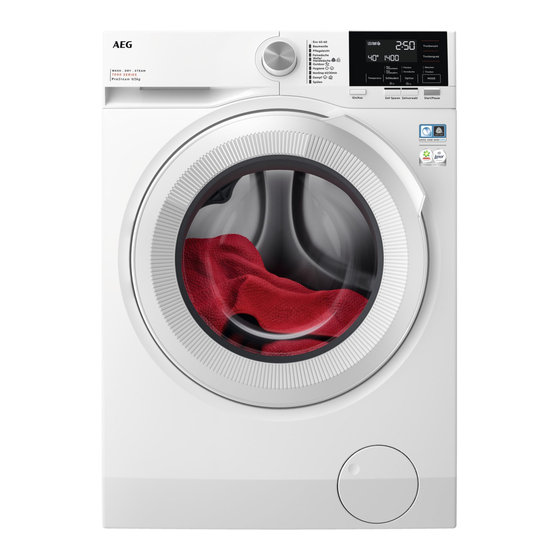

AEG LWR7G60698 User Manual
  1. Manuals
  2. Brands
  3. AEG Manuals
  4. Washer/Dryer
  5. LWR7G60698
  6. User manual

AEG LWR7G60698 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
LWR7G60698
USER
MANUAL
EN
User Manual
Washer Dryer

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LWR7G60698 and is the answer not in the manual?

Questions and answers

Related Manuals for AEG LWR7G60698

Summary of Contents for AEG LWR7G60698

  • Page 1 LWR7G60698 User Manual Washer Dryer USER MANUAL...

  • Page 2: Table Of Contents

    19. ENVIRONMENTAL CONCERNS..............50 FOR PERFECT RESULTS Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler – features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.

  • Page 3: Safety Information

    ENGLISH SAFETY INFORMATION Before beginning the installation and use of this appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damage that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.
  • Page 4 1.2 General Safety This appliance is for washing and drying domestic- • type machine-washable and dryable laundry only. Do not use the dryer function if laundry has been • soiled with industrial chemicals. This appliance is designed for single household •...
  • Page 5 ENGLISH The operating water pressure at the water entry point • from the outlet connection must be between 0.5 bar (0.05 MPa) and 10 bar (1.0 MPa). The appliance maximum load is 9.0 kg. Do not exceed • the maximum load of each programme (refer to the "Programmes"...

  • Page 6: Safety Instructions

    The final part of the washer dryer cycle takes place • without heat (cool down cycle) to ensure that items reach a temperature that will not cause damage to them. Do not use high pressure water sprays and/or steam •...
  • Page 7 ENGLISH • Before connection to new pipes, pipes • Remove a detergent ball (if used) not used for a long time, where repair before starting a drying programme. work has been carried out or new • Do not use a detergent ball if setting a devices fitted (water meters, etc.), let non-stop programme.

  • Page 8: Product Description

    • Remove the door catch to prevent for the disposal of Waste Electrical children or pets from becoming and Electronic Equipment (WEEE). trapped in the drum. • Dispose of the appliance in accordance with local requirements 3. PRODUCT DESCRIPTION 3.1 Appliance overview...

  • Page 9: Technical Data

    ENGLISH 4. TECHNICAL DATA Dimension Width/ Height/ Total 59.7 cm /84.7 cm /57.6 cm depth Electrical connection Voltage 230 V Overall power 2100 W Fuse 10 A Frequency 50 Hz Level of protection against ingress of solid particles IPX4 and moisture ensured by the protective cover, ex‐ cept where the low voltage equipment has no pro‐...
  • Page 10 4. Open the door and remove the 8. Pull up the appliance in vertical polystyrene piece from the door seal position. and all the items from the drum. 5. Carefully put the appliance down on 9. Remove the power supply cable and its rear side.
  • Page 11 ENGLISH 11. Pull out the plastic spacers. 12. Put the plastic caps, that you find in the user manual bag, in the holes. The appliance must be level and stable. A correct adjustment of the appliance level prevents the vibration, noise and the movement of the appliance when in operation.
  • Page 12 WARNING! The inlet water shall not exceed 25 °C. To protect drinking water enclosed non-return valve must be installed CAUTION! between the water tap and the Make sure that there are no water supply hose. This valve must leaks from the couplings.
  • Page 13 ENGLISH You can extend the drain hose to maximum 400 cm. Contact the authorized service centre for the other drain hose and the extension. It is possible to connect the drain hose in different ways: 1. The drain hose can be bent into U shape and put around the plastic guide.

  • Page 14: Control Panel

    Connect the appliance to an earthed socket. 5.6 Electrical connection At the end of installation you can connect The power supply cable must be easily the mains plug to the mains socket. accessible after installing the appliance. The rating plate and the 'Technical Data'...
  • Page 15 ENGLISH • Nur Abpumpen option Ein/Aus push button • Nur Schleudern option Temperatur touch button 6.2 Display Washing phase indicator: it flashes during prewash and wash phase. Rinsing phase indicator. It flashes during rinse phase. Spin and drain phase indicator. It flashes during spin and drain phase. Drying phase indicator.

  • Page 16: Dial And Buttons

    Child safety lock indicator. Temperature indicator. The indicator appears when a cold wash is set. Extra Silent indicator. Rinse hold indicator. Spin speed indicator. Iron drying indicator. Cupboard drying indicator. Extra drying indicator. 7. DIAL AND BUTTONS 7.1 Ein/Aus 7.2 Introduction...
  • Page 17 ENGLISH 7.4 Schleudern • Activate the drain-only option (Skipping the wash, rinse and spin When you set a programme, the phases): Nur Abpumpen. appliance automatically sets the default The appliance performs the only spin speed allowed. draining phase of the selected washing programme.
  • Page 18 (refer to • Vorwäsche "Timed drying" table). The display shows Use this option to add a pre-wash the set value. phase at 30 °C before the washing phase. Each time you touch this button the time This option is recommended for value increases by 5 minutes.

  • Page 19: Programmes

    ENGLISH 8. PROGRAMMES 8.1 Programme Chart Programme Reference Maximum Programme description Default tempera‐ spin speed load ture Spin speed Temperature range range 1600 rpm Eco 40-60 (Wash 1600 rpm - 9.0 kg only mode) 400 rpm 40 °C White cotton and fast-coloured cotton. Normally soiled items.
  • Page 20 Programme Reference Maximum Programme description Default tempera‐ spin speed load ture Spin speed Temperature range range Do not use fabric softener Outdoor and make sure that there is no softener residue in 30 °C the detergent dispenser. 40 °C - Cold Outdoor clothing, technical, sport fab‐...
  • Page 21 ENGLISH Programme Reference Maximum Programme description Default tempera‐ spin speed load ture Spin speed Temperature range range Cotton, synthetic and mixed items. Spe‐ cial steam cycle without washing that can Dampf be used to prepare your dried laundry for ironing or refreshing garments worn once.
  • Page 22 Programme options compatibility Options ■ ■ ■ ■ ■ ■ ■ ■ Schleudern (Spin reduction) ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ ■ Nur Abpumpen ■ ■ ■ ■ ■ ■ ■ Nur Schleudern ■...
  • Page 23 ENGLISH Options ■ ■ ■ Trockengrad 1) Before setting this option, select a suitable washing programme for the garments. The appliance will performs the most fitting spin cycle for your garments care (e.g. For synthetics items, first select the Pfle‐ geleicht washing programme and then the Nur Schleudern option).
  • Page 24 Company for the washing of wool Fragrance) garments labelled as “hand wash” provided that the products are The AEG Steam Fragrance allows you to washed according to the instructions refresh even your delicate clothes, on the garment label and those issued...
  • Page 25 ENGLISH 8.4 Automatic drying Initial cycle times for programmes with Trocken‐ grad option are only estimates, the actual drying time may slightly differ from the time displayed. Dryness Level Type of fabric Load Cottons and Linen up to 5.0 kg (bathrobes, bath towels, etc) Extra Dry For towelling materials...
  • Page 26 Dryness Level Type of fabric Load (kg) Suggested Spin speed duration (rpm) (mins) 110 - 130 1600 50 - 60 1600 Cupboard Dry Cottons and Linen 160 - 180 For items to be (bathrobes, bath towels, etc) 1600 stored...

  • Page 27: Before First Use

    ENGLISH 9. BEFORE FIRST USE 3. Pour 2 litres of water into the During installation or before detergent compartment marked by first use you may observe some water in the appliance. This action activates the drain system. This is a residual water left 4.
  • Page 28 11.3 Filling the detergent and The indicator of the Start/Pause button starts flashing. additives The programme dial is automatically set on default programme and only the indicator Waschen is on above the MODE button. The display shows the maximum load...
  • Page 29 ENGLISH With the flap in the position DOWN: • Do not use gelatinous or thick liquid detergents. • Do not put more liquid detergent than the limit shown on the flap. • Do not set the prewash phase. • Do not set the delay start function.
  • Page 30 Changing the delay start after To perform washing only, make sure that only the the countdown has started Waschen indicator is on To change the delay start: above the MODE button. 1. Touch the Start/Pause button to In case a selection is not pause the appliance.
  • Page 31 ENGLISH 11.11 Cancelling a running About 20 minutes after the programme programme start, the programme duration could 1. Press the Ein/Aus button to cancel be adjusted again depending the programme and to deactivate the on the capacity of water appliance. absorption of the fabrics.
  • Page 32 11.13 End of the programme • The door stays locked. • You must drain the water to open the When the programme has finished, the door: appliance stops automatically. The 1. If necessary, touch the Schleudern acoustic signals operate (if they are button to decrease the spin speed active).

  • Page 33: Daily Use - Washing & Drying

    ENGLISH 12. DAILY USE - WASHING & DRYING 5. Set the desired options, if there are WARNING! available. Refer to Safety chapters. 6. Touch the MODE button once to activate also the drying function. The This appliance is an Waschen and Trocknen indicators automatic washer dryer.

  • Page 34: Daily Use - Drying Only

    The display also shows the remaining • The acoustic signals operate (if they programme time. are active). • In the display comes on. 12.3 Washing and Timed • The indicator of button Start/Pause Drying goes off. The door locked goes 1.

  • Page 35: Fluff In The Fabrics

    ENGLISH 2. Touch the Start/Pause to start the programme. Cupboard dry: for In the display the door locked cotton and synthetic items; indicator comes on and the indicator of the running phase starts flashing. The display also shows the remaining Extra dry: for cotton programme time.

  • Page 36: Hints And Tips

    If the appliance is frequently used, carry out the CLE programme regularly. 15. HINTS AND TIPS WARNING! Refer to Safety chapters. 15.1 The laundry load • Divide the laundry into: white, coloured, synthetics, delicates and wool. • Follow the washing instructions on the •...
  • Page 37 ENGLISH 15.3 Detergent type and 15.4 Ecological hints quantity To save water, energy and to help protect the environment, we recommend The choice of detergent and use of that you follow these tips: correct quantities not only affects your wash performance, but also helps to •...

  • Page 38: Care And Cleaning

    15.7 Items not suitable for • speed of the last spin • dryness level drying • type of laundry • weight of the load Do not set a drying programme for this laundry: 15.10 Additional drying • Synthetic curtains.
  • Page 39 ENGLISH 16.4 Descaling Clean detergent dis‐ Every two months If the water hardness in your penser area is high or moderate, we recommend that you use a Clean drain pump Twice a year water descaling product for filter washing machines. Clean the inlet hose Twice a year Regularly examine the drum to check for...
  • Page 40 16.8 Cleaning the detergent dispenser To prevent possible deposits of dried detergent or clotted fabric softener and/or formation of mould in the detergent dispenser drawer, once in a while carry out the following cleaning procedure: 1. Open the drawer. Press the catch...
  • Page 41 ENGLISH 3. Flush the detergent drawer out under running warm water to remove any traces of accumulated detergent. After cleaning, replace the top part in its position. 4. Insert the detergent drawer into the guide rails and close it. Run the rinsing programme without any clothes in the drum.
  • Page 42 7. Turn the filter anti-clockwise to remove it. 12. Close the pump cover. 8. If it is necessary, remove fluff and objects from the filter recess. 9. Make sure that the impeller of the pump can rotate. If it does not rotate, contact the Authorised Service Centre.

  • Page 43: Troubleshooting

    ENGLISH 16.11 Emergency drain 2. Remove the inlet hose from the appliance by loosening the ring nut. If the appliance cannot drain the water, carry out the same procedure, described in 'Cleaning the drain pump' paragraph. If necessary, clean the pump. When you drain the water with the emergency drain procedure, you must activate the drain system again:...
  • Page 44 17.1 Alarm Codes and Possible failures The appliance does not start or it stops during operation. First try to find a solution to the problem (refer to the tables). WARNING! Deactivate the appliance before carrying out any check. With some problems, the display shows an alarm code and the...
  • Page 45 ENGLISH • Make sure that the door is properly closed. The appliance door is open or not closed correctly. • The programme was not finished properly or the appliance stopped too early. Switch the appliance off and on again. Internal fail. No com‐ •...
  • Page 46 Problem Possible solution • Make sure that the couplings of the water hoses are tight and there is not water leakages. There is water on the • Make sure that the water inlet hose and the drain hose have floor.
  • Page 47 ENGLISH Problem Possible solution The fabrics washed in the previous cycle released fluff of a differ‐ ent colour: The laundry is full of • The drying phase helps to eliminate some fluff. different colours fluff. • Clean the clothes with a fluff remover. In case of an excessive amount of fluff in the drum refer to “Fluff in the fabrics"...

  • Page 48: Consumption Values

    18. CONSUMPTION VALUES 18.1 Introduction See the web link www.theenergylabel.eu for detailed information about Energy Label. The QR code on the energy label supplied with the appliance provides a web link to the information related to the performance of the appliance in the EU EPREL database.
  • Page 49 ENGLISH Eco 40-60 pro‐ Litres hh:mm °C gramme Half load 0.480 45.0 02:53 44.0 30.0 1600 Quarter load 0.235 31.0 02:50 45.0 24.0 1600 1) Maximum spin speed. Wash and dry cycle Eco 40-60 pro‐ gramme and Litres hh:mm °C Cupboard dry level Full load...

  • Page 50: Environmental Concerns

    Programme Litres hh:mm °C Wolle 0.250 50.0 01:10 30.0 30.0 1200 30°C 1) Maximum spin speed. 2) Suitable for washing heavily soiled textiles. 3) Suitable for washing lightly soiled cottons, synthetic and mixed fabrics. 4) It also performs as quick washing cycle for lightly soiled laundry.
