Sealey YK20ECF.V3 Manual

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to Wear a face
instructions shield
1. SAFETY
Familiarise yourself with the applications, limitations and hazards of the press.
9
Maintain the press in good condition (use an authorised service agent).
9
Replace or repair damaged parts. Use recommended parts only. Unauthorised parts may be dangerous and will invalidate the warranty.
9
Keep the press clean for best and safest performance.
9
Locate the press in an adequate working area for its function, keep area clean and tidy and free from unrelated materials and ensure there
9
is adequate lighting.
Ensure the workpiece is correctly secured before operating the press.
9
Ensure that all fittings are tight before each use.
9
Remove ill fitting clothing. Remove ties, watches, rings, other loose jewellery and contain long hair.
9
Keep hands and body clear of the table when operating the press.
9
Maintain correct balance and footing. Ensure the floor is not slippery and wear non-slip shoes.
9
Keep children and unauthorised persons away from the working area.
9
Securely attach the press to a flat, firm, level surface capable of supporting the weight of press and any workpiece taking into account
9
clearance for workpieces.
When not in use, release pressure from the hydraulic unit and clean the press. Stand or store the V blocks in a safe location.
9
DO NOT operate the press if any parts are missing as this may cause failure and/or possible personal injury.
8
DO NOT use the press for a task it is not designed to perform.
8
DO NOT make any modifications to the press.
8
DO NOT exceed the rated capacity of the press.
8
DO NOT apply off-centre loads.
8
DO NOT allow the workpiece or the v blocks to fall from the table.
8
DO NOT get the press wet or use in damp or wet locations or areas where there is condensation.
8
DO NOT operate the press when you are tired or under the influence of alcohol, drugs or intoxicating medication.
8
DO NOT climb upon the press.
8
DO NOT use the press to compress a spring or any other item that could disengage and cause a potential hazard including personal injury.
8
DO NOT stand directly in front of a loaded press and never leave a loaded press unattended.
8
DO NOT allow untrained persons to operate the press.
8
WARNING! Always wear approved eye or face protection when operating the press. A full range of personal safety equipment is available
‰
from your Sealey stockist.
WARNING: DO NOT top up hydraulic unit with brake fluid, or any other fluid other than a good quality hydraulic oil (Sealey Part Number:
‰
HJO500MLS/HJO5LS) as this may cause serious damage to the hydraulic unit and will invalidate the warranty.
WARNING! Always position the press against a wall. If the press is situated in the open workshop, it is essential that a guard be
‰
placed at the rear of the unit. This will prevent injury to bystanders in the event of the work piece ejecting suddenly.
WARNING! The warnings, cautions and instructions in this manual cannot cover all possible conditions and situations that may occur.
‰
It must be understood by the operator that common sense and caution are factors which cannot be built into this product, but must be
applied by the operator.
▲ DANGER! The press is top heavy. If it requires moving after assembly or for relocation, use suitable slings around the top crossbeam,
or lift direct with a forklift with the forks located under the top crossbeam. DO NOT use a pallet truck.
2. INTRODUCTION
Suitable for use by the serious enthusiast and professional alike. Made from a high quality steel with a powder coated paint finish to help
corrosion resistance. Supplied in KD form.
3. SPECIFICATION
Model No: ......................................................YK20ECF.V2
Capacity: .............................................................20 Tonne
Maximum Height - Ram to Table: ...........................700mm
Minimum Height - Ram to Table: .......................... -145mm
Overall Height: .....................................................1450mm
Overall Width: .........................................................680mm
© Jack Sealey Limited

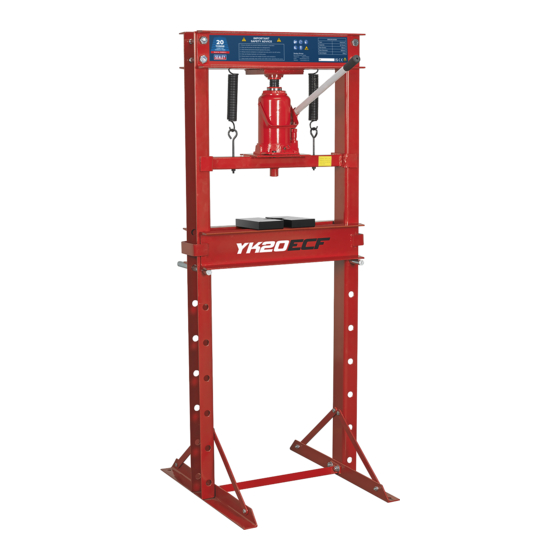

20 TONNE FLOOR TYPE HYDRAULIC PRESS
MODEL NO:
Wear protective Wear protective
footwear gloves
Original Language Version
YK20ECF.V3
Wear protective Warning
clothing crushing of
hands
Ram Diameter: ......................................................Ø53mm
Ram Stroke: ...........................................................145mm
Table Aperture: .......................................................100mm
Type: ...................................................................Hydraulic
Working Table Depth: .............................................215mm
Working Table Width: .............................................625mm
YK20ECF.V3 Issue 1 28/09/23
