Page 2
FCC notice This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
Page 3
Safety instructions Read all of these instructions before you operate your projector and save for future reference. 1. Read instructions All the safety and operating instructions should be read before the appliance is operated. 2. Notes and warnings All notes and warnings in the operating instructions should be adhered to. 3.
Page 4
Notes on the AC power cord AC Power Cord must meet the requirement of countries where you use this projector. Please confirm your AC plug type with the graphics below and ensure that the proper AC Power Cord is used. If the supplied AC Power Cord does not match your AC outlet, please contact your sales dealer.
Introduction Projector features The projector integrates high-performance optical engine projection and a user - friendly design to deliver high reliability and ease of use. The projector offers the following features: • Laser-phosphor light source free from replacement • Ultra-short throw (UST) projection lens delivers large images from a short projection distance •...
Package contents When you unpack the projector, make sure you have all these components: Remote control (IR) & Projector AC power cord batteries (AAA *2 PCS) VGA cable (D-SUB to D-SUB) CD manual Quick start guide Note • Contact you dealer immediately if any items are missing, appear damaged, or if the unit does not work •...

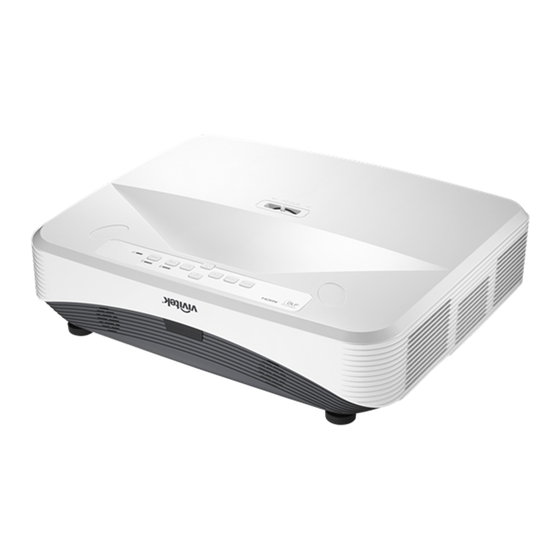

Product overview Projector outlook Front and top 1. Focus switch 2. Lens 3. Control panel 4. IR remote control sensor 5. Speaker Bottom and side 1. Adjuster feet 2. Ceiling mount holes 3. Ventilation holes (airflow out) 4. Ventilation holes (airflow in)
Page 9
Rear 2 34 5 67 8 9 10 1213 1. Kensington anti-theft lock slot 2. 5V output for power charging 3. Audio input jack 4. Audio output jack 5. Audio (L/R) input jack 6. S-Video input jack 7. Video input jack 8.
Page 10
Control panel Power Menu Enter Source 1. Power LED indicator 2. Power button 3. Menu button / / / Vertical and Horizontal Key- stone buttons / / / Four directional select buttons 5. Enter button 6. Source button 7. Temperature LED indicator 8.
Page 11
Remote control 1. Power 2. Computer 3. Auto Sync / / / Vertical and Horizontal Keystone buttons / / / Four directional select buttons 5. My Button 6. Menu 7. Right mouse 8. Left mouse 9. Mouse 10. Lock/ID Set 11.
Installation Connecting to the Projector Connecting a Computer/Notebook 1. Power cord 2. Audio Out cable 3. Audio In cable 4. VGA cable (D-Sub to D-Sub) 5. HDMI cable 6. Mini-USB cable 7. VGA (D-Sub) to HDTV (RCA) cable...
Page 13
Connecting a Video source DVD player, Blu-ray player, Set-top box, HDTV receiver 1. Power cord 2. Audio (L/R) cable 3. Composite Video cable 4. S-Video cable 5. 3 RCA to mini D-sub 15 pin cable 6. HDMI cable 7. USB cable for charging device...
Powering on/off the projector Powering on the projector: 1. Complete the AC power cord and peripheral signal cable(s) connections. 2. Press to turn on the projector. The projector takes a minute or so to warm up. • If the projector is still hot from previous activity, it will run the cooling fan for approximately 60 seconds before energizing the light.
Adjusting the projector height Adjuster feet The projector is equipped with 4 adjuster feet to adjust the image height. To raise or lower the image, turn the adjuster feet to fine-tune the height. Note • To avoid damaging the projector, make sure that the adjuster feet are fully retracted before placing the projector in its carrying case.
Adjusting projection image size L1: Distance from a projection surface to the rear of the unit L2: Distance from a projection surface to the front of the unit D: Projection image size H: Distance from a floor to the bottom of a projection image 1080p (16:9) Projection image size Installation distance...
Page 17
XGA (4:3) Projection image size Installation distance Diagonal With x Bottom From a projecting surface From a projecting surface Height height (H) to the rear of the unit L1 to the front of the unit L2 inch m x m 1.32 x 0.99 277.1 66.8...
User Controls Control panel & remote control Control panel Power Menu Enter Source Power LED indicator Refer to “LED Indicator Messages”. 2. Power Turn the projector on or off. 3. Menu Display or exit the on-screen display menus. / / / Vertical and Horizontal Keystone buttons Manually corrects distorted images resulting from an angled projection.
Page 19
Remote control Power Turn the projector on or off. 2. Computer Display Computer signal. 3. Auto Sync Automatically determines the best picture timings for the displayed image. / / / Vertical and Horizontal Keystone buttons Manually corrects distorted images resulting from an angled projection. / / / Four directional select buttons Selects the desired menu items and makes adjustments.
Page 20
(Lock/ID Set) Lock: Activates or disables panel key lock. ID Set: No function. (Timer) Activate P-Timer OSD menu. (Volume) Display Volume adjustable menu. 13. Eco Mode Switch the light mode between Normal and Eco. 14. Audio Mode Switch the audio mode from Video, Speech to Entertainment. (Aspect) Select the display aspect ratio.
Page 21
Using the remote mouse control The capability of operating your computer with the remote control gives you more flexibility when delivering presentations. 1. Connect the projector to your PC or notebook with a USB cable prior to using the remote control in place of your computer’s mouse. See "Installation"...
Page 22
Installing the batteries 1. Open the battery cover in the direction shown. 2. Install batteries as indicated by the diagram inside the compartment. 3. Close the battery cover into position. Caution • Risk of explosion if battery is replaced by an incorrect type. •...
Page 23
Remote control operation Point the remote control at the infrared remote sensor and press a button. • Operating the projector from the front. Note • The remote control may not operate when there is sunlight or other strong light such as a fluorescent light shining on the remote sensor.
Securing the projector Setting a password 1. Open the OSD menu and go to the Settings 2 > Advanced > Security Settings menu. Press Enter. The Security Settings page displays. 2. Highlight Change Password and press Enter. 3. According to the password you desire to set, press the arrow keys to enter six digits for the password.
Disabling the password function To disable password protection, go back to Settings 2 > Advanced > Security Settings > Power On Lock menu, and press Enter. You will be asked to input password. Once the password is set, the OSD menu returns to the Power On Lock. Select Off by pressing / .
Setting the presentation timer The presentation timer can indicate the presentation time on the screen to help you achieve better time management when giving presentations. Follow these steps to utilize this function: 1. Press Timer on the remote control to access the Presentation Timer menu or go to the Settings 1 >...
Using the projector in standby mode Some of the projector functions are available in standby mode (plugged in but not turned on). To use these functions, be sure you have turned on the corresponding menus under Source > Standby Settings, and the cable connections are correctly made.
Page 28
Turning off the Power On/Off Ring Tone 1. Open the OSD menu and go to the Settings 2 > Audio Settings > Power On/Off Ring Tone menu. 2. Press to select Off. • The only way to change Power On/Off Ring Tone is setting On or Off here. Setting the sound mute or changing the sound level will not affect the Power On/Off Ring Tone.
On-screen display menus The projector has multilingual on-screen display menus that allow you to make image adjustments and change a variety of settings. How to operate 1. Press Menu to open the OSD menu. 2. When OSD is displayed, use to select any feature in the main menu.
Menu tree Main Menu Sub Menu Settings Screen Color Off / Blackboard / Greenboard / Whiteboard Auto / 4:3 / 16:9 / Panorama / Anamorphic / 2.35:1 Aspect Ratio / 16:10 / 16:6 H: -30 - 30 Keystone V: -30 - 30 Display Corner Adj.
Page 31
Auto Source Off / On Auto Top-Bottom 3D Format 3D Settings Frame Sequential Frame Packing Side By Side 3D Sync Invert Off / On Active VGA out Off / On Standby Settings Active Audio out Off / On LAN Control Off / On Computer Off / On...
Page 32
Language Front Table / Rear Table / Rear Projection Ceiling / Front Ceiling Menu Display 5 sec / 10 sec / 15 sec / 20 sec Time / 25 sec / 30 sec Menu Settings Center / Top-Left / Top-Right / Menu Position Bottom-Left / Bottom-Right Disable / 5 Min / 10 Min / 15...
Page 33
High Altitude Off / On Mode Audio Mode Video / Speech / Entertainment Mute Off / On Audio Settings Audio Volume 0 - 20 Power On/Off On / Off Ring Tone Closed Caption Off / On Enable Closed Caption Settings 2 Caption Version CC1 / CC2 / CC3 / CC4 Light Mode...
Page 34
Display Screen Color The Screen Color feature can help correct the projected picture’s colors to prevent possible color difference between the source and projected pictures. There are several precalibrated colors to choose from: Whiteboard, Greenboard, and Blackboard. Aspect Ratio Select how the picture fits on the screen: •...
Page 35
Corner Adj. Manually adjust four corners of the image by setting the horizontal and vertical values. 1. Press / / / to select one of the four corners and press Enter. 2. Press to adjust vertical values. 3. Press to adjust horizontal values. Position Displays the position adjusent page.
Page 36
Image Color Mode There are many factory presets optimized for various types of images. • Bright: Maximizes the brightness of the projected image. This mode is suitable for environments where extra-high brightness is required. • Presentation: Is designed for presentations under daylight environment to match PC and notebook coloring.
Page 37
HDMI Range • Enhanced : The range for HDMI output signal is from 0 - 255. • Normal: The range for HDMI output signal is from 16 - 235. Advanced Tint Adjusts the red and green color tones of the image. Color The higher the value, the more reddish the picture becomes.
Page 38
Source Auto Source Automatically scan through all the input source if the function in the OSD menu is On. The function will stop the signal auto scan process and fix the signal source you preferred if you turn Off the Auto Source. 3D Settings This projector features a 3D function which enables you to enjoy the 3D movies, vid- eos, and sporting events in a more realistic way by presenting the depth of the...
Page 39
This projector supports CEC (Consumer Electronics Control) function for synchro- nized power on/off operation via HDMI connection. That is, if a device that also sup- ports CEC function is connected to the HDMI input of the projector, when the projector’s power is turned off, the power of the connected device will also be turned off automatically.
Page 40
Note • When Off is selected, the Smart Restart function will be automatically turned Off. Network Allow you to configure the wired LAN settings. Refer to page 44. • DHCP: • When selecting “DHCP on”, “IP Address”, “Subnet Mask”, "Default Gateway" and "DNS Server"...
Page 41
Settings 1 Language Select the language used by the on-screen menu. Projection Adjust the picture to match the orientation of the projector: upright or upside-down, in front of or behind the screen. Invert or reverse the image accordingly. Menu Settings Menu Display Time Duration of OSD menu display countly starts (at idle state by second).
Page 42
Settings 2 High Altitude Mode Use this function to allow the fans operates at full speed continuously to achieve proper high altitude cooling of the projector. If the projector is installed a filter cover, make aure that High Altitude Mode is set to On. Audio Settings "Adjusting the sound"...
Page 43
Panel Key Lock Disables or enables all panel key functions except Power on the projector. See "Locking control keys" on page 24 for details. Reset Settings Restore settings to factory default. The following settings will still remain: Keystone, Language, Projection, High Altitude Mode, Security Settings.
Page 44
Information Current System Status Shows the currect system status. Source Shows the current signal source. Color Mode Shows the selected mode in the Color Mode menu. Resolution Shows the native resolution of the input signal. Color System Shows input system format: RGB or YUV. Light Hours Displays the number of hours the light has been used.
Using network features You can manage and control the projector from one or more remote computers when they are properly connected to the same local area network. Internet IP Router If you are in a DHCP on environment: 1. Take a RJ45 cable and connect one end to the RJ45 LAN input jack of the projector and the other end to the RJ45 port on your Ethernet or router.
Page 46
Important • If the RJ45 cables are not properly connected, the IP Address, Subnet Mask, Default Gateway and DNS Server settings will display 0.0.0.0. Make sure the cables are properly connected and perform the procedures above again. • If you wish to connect to the projector in its standby mode, be sure you have selected RJ45 and obtained the IP Address, Subnet Mask, Default Gateway and DNS Server information when the projector is on.
Page 47
3. This page allows you to make adjustments to the AMX and SNMP settings. In the AMX device discover row, when ON is selected, the projector can be detected by controllers of AMX connected to the same network. For the Details of AMX Device Discovery, visit the AMX web site at http://www.amx.com/.
Page 48
Email Setting Subject From Server SMTP Setting User Name Email Alert Password Fan Error (N/A) Lamp Error (N/A) Alert Condition Temperature Error (N/A) Submit (N/A) Issue Test Mail (N/A) • / > < $ % + \ ' " are prohibited. ®...
Page 49
2. The tools page allows you to manage the projector, configure the Lan control settings and secure access of remote network operation on this projector. i. This section is only used with the Crestron Control System. Please contact Creston or refer to its user manual for setup information. ii.
Page 50
3. The info page displays the information and status of this projector. i. Press exit to go back to the Crestron remote network operation page. 4. After pressing the button “Contact IT Help”, the HELP DESK window will appear in the upper right corner of the screen.
Maintenance The projector needs proper maintenance. You should keep the lens clean as dust, dirt or spots will project on the screen and diminish image quality. If any other parts need replacing, contact your dealer or qualified service personnel. When cleaning any part of the projector, always switch off and unplug the projector first.
Dimensions 508.7 mm (W) x 390.0 mm (D) x 144.5 mm (H) 508.7 390.0 144.5 Ceiling mount installation Ceiling mount screws: 184.3 Max. M4 x 10 Unit: mm...
Appendices LED indicator messages LED Type Color Status Meaning Power LED Amber Flash Temp LED Normal power of standby mode . Light LED Power LED Amber Flash Temp LED Low power of standby mode. Light LED Power LED Amber Flash Temp LED Powering up Light LED...
Compatibility Modes 1. VGA Analog Supported timing for PC input Horizontal Vertical Pixel 3D top Resolutio Field side Timing frequency frequenc Frequency botto Sequen (KHz) y (Hz) (MHz) tial side VGA_60 59.94 31.469 25.175 ◎ ◎ ◎ VGA_72 72.809 37.861 31.500 640 x 480 VGA_75...
Page 56
1680 x 1680 x 59.954 65.29 146.25 ◎ ◎ 1050 1050_60 1920 x 1920 x 1080_60 67.5 148.5 1080 (Reduce Blanking) 1920 x 1920 x 1200_60 59.95 74.038 154.000 1200 (Reduce Blanking) 640 x 480 MAC13 66.667 30.240 @67Hz 832 x 624 MAC16 74.546 49.722...
Page 58
• The timings showing above may not be supported due to EDID file and VGA graphic card limitations. It is possible that some timings cannot be chosen. Supported timing for video input Horizon- Vertical Pixel Fre- Resolu- tal Fre- Fre- Timing quency tion...
Troubleshooting Refer to the symptoms and measures listed below before sending the projector for repairs. If the problem persists, contact your local reseller or service center. Please refer to "LED Indicator Messages" as well. Start-up problems If no lights turn on: •...
RS-232 command and configuration D-Sub 9 pin Wire List 1 CD COLOR Black Brown Orange Yellow Green Blue Purple White SHELL SHELL Baud Rate 115200 bps Data Length 8 bit Parity Check None Stop Bit 1 bit Flow Control None...
Page 61
Function Status Action Power on 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x00 0x00 0x5D Write Power off 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x01 0x00 0x5E Power 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x11 0x00 Read Power status (on/off) 0x5E Reset all settings...
