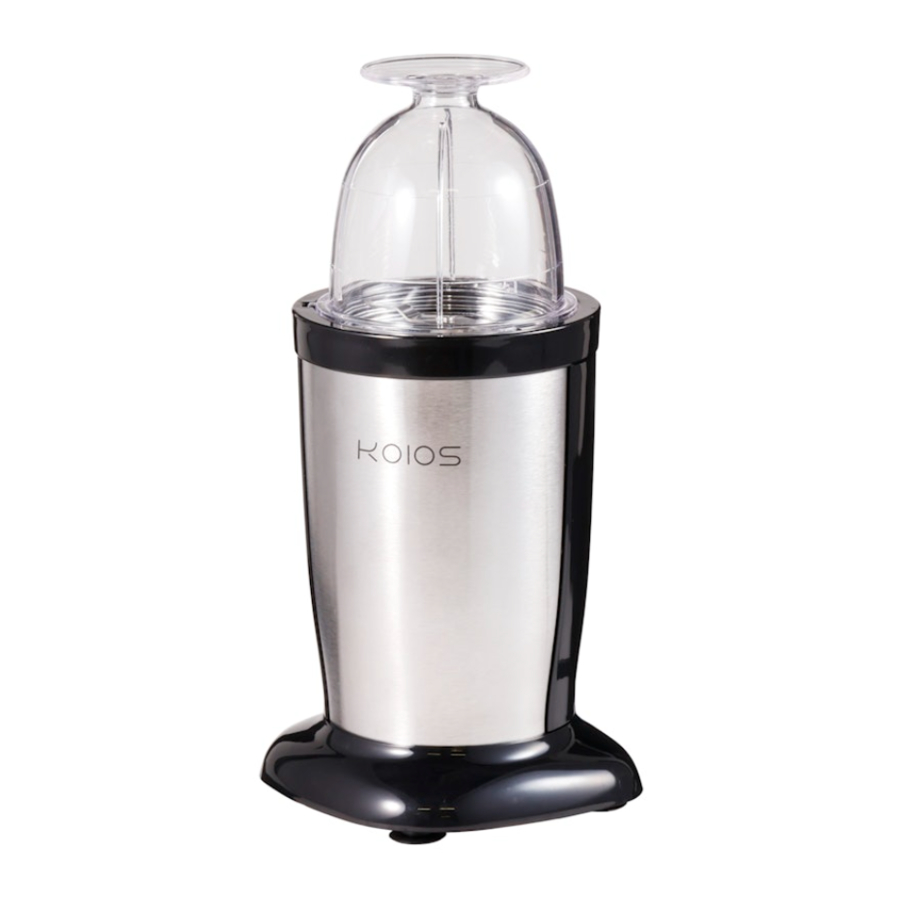

KOIOS BL219 - Personal Blender Manual

PRODUCT OVERVIEW

Your personal blender comes with a handy sieve lid that is used as a cooking shaker for pouring out spices such as cinnamon, nutmeg, ground coffee beans, cocoa powder, etc.

USER GUIDE

1. Take out the machine and put it on the working platform;

2. First remove the mixing cup from the machine and remove the tool rest assembly counterclockwise from the mixing cup;

3. Put food and water into the cup, making sure that the maximum amount marked on the cup is not exceeded;

4. Put the tool rest assemb y on the mouth of the cup, and tighten the tool rest assembly clockwise;

5. Place the mixing cup upside down on the machine with the three raised clips lining up with the three grooves in the machine. Press the mixing cup with your hand and tighten clockwise;

6. Insert the power cord into the power supply and press the power switch button to start the machine;

7. After the machine works for 1 minute, press the power switch button to stop working;

8. Press the mixing cup down and rotate counterclockwise to take out the mixing cup;

9. Remove the tool rest assembly from the mixing cup by turning the tool rest assembly counterclockwise.


TROUBLESHOOTING

1. The appliance doesn't work

Check if the power cord is plugged into the outlet properly.

2. Can I blend hot foods?

No. NEVER blend hot foods in a blender. Cool the food to a temperature that is lower than 60°C (140°F).

3. My device smells when I use it

It is normal for a new product to produce an unusual smell when it is used for the first time. It stops after you have used the appliance several times. If an unusual smell appears after the usage for a long time, turn the appliance off and let it cool down for 60 minutes.

4. The unit stops while blending

Unplug the power cord, take out the cup and try to:

1. Shake the cup;
2. Reduce the loaded capacity.

5. How to blend frozen fruit or ice cubes

   1. Cut the frozen fruit into small pieces.
   2. Add the frozen fruit pieces or ice cubes to the cup. Do not overfill it to avoid jamming the blade.
   3. Add at least one-third of the liquid.
   4. Fasten the blade assembly to the bottle. Then switch clockwise until the bottle locks in place.
   5. Use pulse blending to break up frozen foods and ice cubes: Press the switch and let the blender work for 3 seconds, then press the switch again to stop it. After the food or ice cubes fall to the bottom, press the switch to work for 3 seconds and then stop it again. Repeat until the food is complete y blended.

CLEANING AND MAINTENANCE

1. Remove the cross/flat blade attachment from the cross blade plastic base by pushing the blade gear.

2. Remove the gasket ring.
3. Add dishwashing liquid. Clean the gasket ring and the cross blade attachment with the small brush to loosen debris, then rinse with water.
4. Drywell in a cool place.
5. Assemble the extractor blade. Please ensure the gasket ring attached properly.

1. UNPLUG the appliance from the power source when it is not in use.
2. Please store the appliance in a dry, well-ventilated place when it is not in use for a long time.
3. You can clean the accessories under running water.
4. Clean the blender with a dry cloth. To protect against the risk of electrical shock, never immerse the motor base in water or place it under running water.

IMPORTANT SAFEGUARDS

To avoid electric shock, fire, or injury, please read the user manual carefully before using the appliance and keep it for future reference.

1. This appliance can be used by children aged from 8 years and above and persons.
2. Do not operate any appliance with damaged cord or plug, or after appliance has been dropped or damaged in any way. Contact KOIOS official for replacement.
3. Never immerse the motor unit or supply cord in water nor rinse it under the tap.
4. Make sure motor has completely stopped before removing cover.
5. Make sure the cover is securely locked into position before operating.
6.
   Unauthorized use or the use of attachments that do not belong to this product may cause fire, electrical shock or personal injury, or damage to your appliance.
7. This appliance is intended for home use only.
8. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
9. Always unplug the appliance from the outlet when it is not in use, before putting on or taking off parts, before removing food, and before cleaning.
10. Take care while handling the sharp cutting blades or emptying the bowl in order to avoid injury.
11. This product is strictly prohibited for no-load or overload operating.
12. Keep hands and utensils out of container while blending to reduce the risk of severe injury to persons or damage to the blender.
13. To reduce the risk of injury, never place cutter-assembly blades on base without jar properly attached.

CUSTOMER SERVICE

Our customer service team is always ready to assist you if you have any issues or concerns.
www.koiosshop.com
support@koiosshop.com
1-855-888-2111
m.me/KoiosShop
