KOIOS BL328B - Personal Blender Manual

PRODUCT OVERVIEW

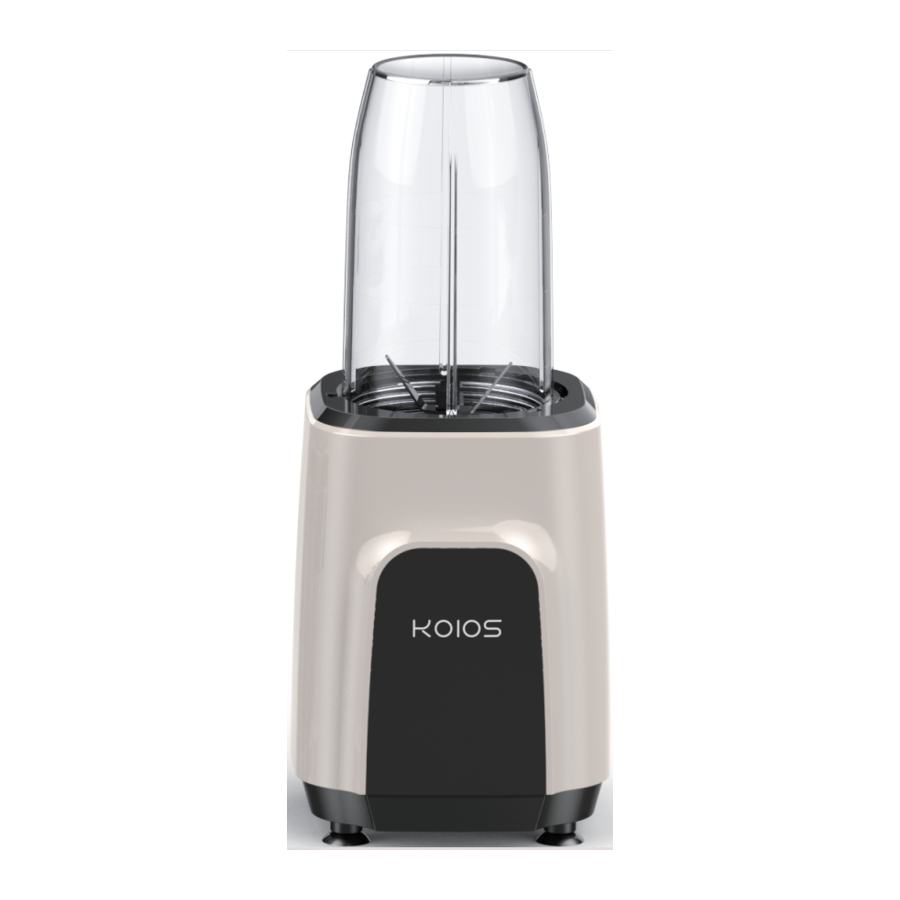

KOIOS personal blender comes with a handy sieve top that is used to sift dry ingredients, such as cinnamon, nutmeg, ground coffee beans, cocoa powder, etc.

USER GUIDE

1. Remove the blade/cup assembly from the base. Twist the flat/cross blade base clockwise to unseal the blade base and the cup.

2. Load the ingredients into the short or tall cup. Be careful not to exceed the max level mark.

3. Twist on the blade base rotating counterclockwise until the blade and cup have a tight seal.

4. Place the blade/cup assembly on the base upside down, line up the units three grooves. Press down the mixing cup with your hand to turn it on.

5. As long as you're pressing the mixing cup down, the unit is operating.

6. Release the hand pushing the mixing cup after the machine has been running for 1 minute to stop the food from mixing. It is advised to press multiple times occasionally until the food is thoroughly smashed when stirring hard food/ingredients such as ice cubes;

7. Take out the blade/cup assembly. Twist the flat/cross blade base clockwise to unseal the blade base and the cup.


TROUBLESHOOTING

1. The appliance doesn't work

Check if the power cord is plugged into the outlet properly.

2. Can I blend hot foods?

No. NEVER blend hot foods in a blender. Cool the food to a temperature that is lower than 60°C (140°F).

3. My device smells when I use it

It is normal for a new product to produce an unusual smell when it is used for the first time. It stops after you have used the appliance several times. If an unusual smell appears after the usage for a long time, turn the appliance off and let it cool down for 60 minutes.

4. The unit stops while blending

Unplug the power cord, take out the cup and try to:

1. Shake the cup;
2. Reduce the loaded capacity.

5. How to crush ice cubes

   1. Don't put too many ice cubes at a time to prevent the blade from jamming.
   2. Don't blend continuously for more than 20 seconds.
   3. It is recommended to press down the cup intermittently several times in quick, two-second bursts until the ice cubes are crushed completely.

CLEANING AND MAINTENANCE

1. Remove the cross/flat blade attachment from the cross/flat blade base by pushing the blade gear.

2. Remove the gasket ring.
3. Add dishwashing liquid. Clean the gasket ring and the cross/flat blade attachment with the small brush to loosen debris, then rinse with water.
4. Drywell in a cool place.
5. Assemble the cross/flat blade attachment. Please ensure the gasket ring is attached properly.

1. UNPLUG the appliance from the power source when it is not in use.
2. Please store the appliance in a dry, well-ventilated place when it is not in use for a long time.
3. You can clean the accessories under running water.
4. Clean the blender with a dry cloth. To protect against the risk of electrical shock, never immerse the motor base in water or place it under running water.

IMPORTANT SAFEGUARDS

To avoid electric shock, fire, or injury, please read the user manual carefully before using the appliance and keep it for future reference.

1. This appliance can be used by children aged from 8 years and above and persons.
2. Do not operate any appliance with damaged cord or plug, or after appliance has been dropped or damaged in any way. Return the appliance to the nearest authorized service facility for examination, repair or electrical or mechanical adjustment.
3. Never immerse the motor unit or supply cord in water nor rinse it under the tap.
4. Make sure motor has completely stopped before removing cover.
5. Make sure the cover is securely locked into position before operating.
6.
   Unauthorized use or the use of attachments that do not belong to this product may cause fire, electrical shock or personal injury, or damage to your appliance.
7. This appliance is intended for home use only.
8. This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
9. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
10. Always unplug the appliance from the outlet when it is not in use, before putting on or taking off parts, before removing food, and before cleaning.
11. Take care while handling the sharp cutting blades or emptying the bowl in order to avoid injury.
12. This product is strictly prohibited for no-load or overload operating.
13. Keep hands and utensils out of container while blending to reduce the risk of severe injury to persons or damage to the blender.
14. To reduce the risk of injury, never place flat/cross blade base on high-torque power base without cap properly attached.

CUSTOMER SERVICE

Our customer service team is always ready to assist you if you have any issues or concerns.
www.koiosshop.com
support@koiosshop.com
1-855-888-2111
m.me/KoiosShop
