Sealey SCR13.V2 Manual

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to
instruction
manual
1. SAFETY
1.1. GENERAL SAFETY
WARNING! Ensure Health & Safety, local authority, and general workshop practice regulations are adhered to when using this stool.
‰
Locate stool in a suitable working area.
9
WARNING! Use stool on level and solid ground, preferably concrete.
‰
Keep the stool clean and tidy in accordance with good workshop practice.
9
DO NOT use the stool for any purpose other than that for which it is designed.
8
DO NOT stand on the stool.
8
DO NOT use the stool outdoors.
8
DO NOT get the stool wet or use in damp or wet locations or areas where there is condensation.
8
DO NOT clean the stool with any solvents which may damage the plated surface or the protective coating on the padded seat.
8
2. INTRODUCTION
4-Legged steel construction with a polished Chrome plate finish for resistance to corrosion. Strengthening rings for stability, lower one
also acts as a foot rest. Ø350mm Swivel seat rotates fully through 360° and is padded for extra comfort.
3. SPECIFICATION
Model No: ...................................................... SCR13.V2
Capacity: .............................................................. 136kg
Height(s): ........................................................... 750mm
4. ASSEMBLY
4.1. FRAME

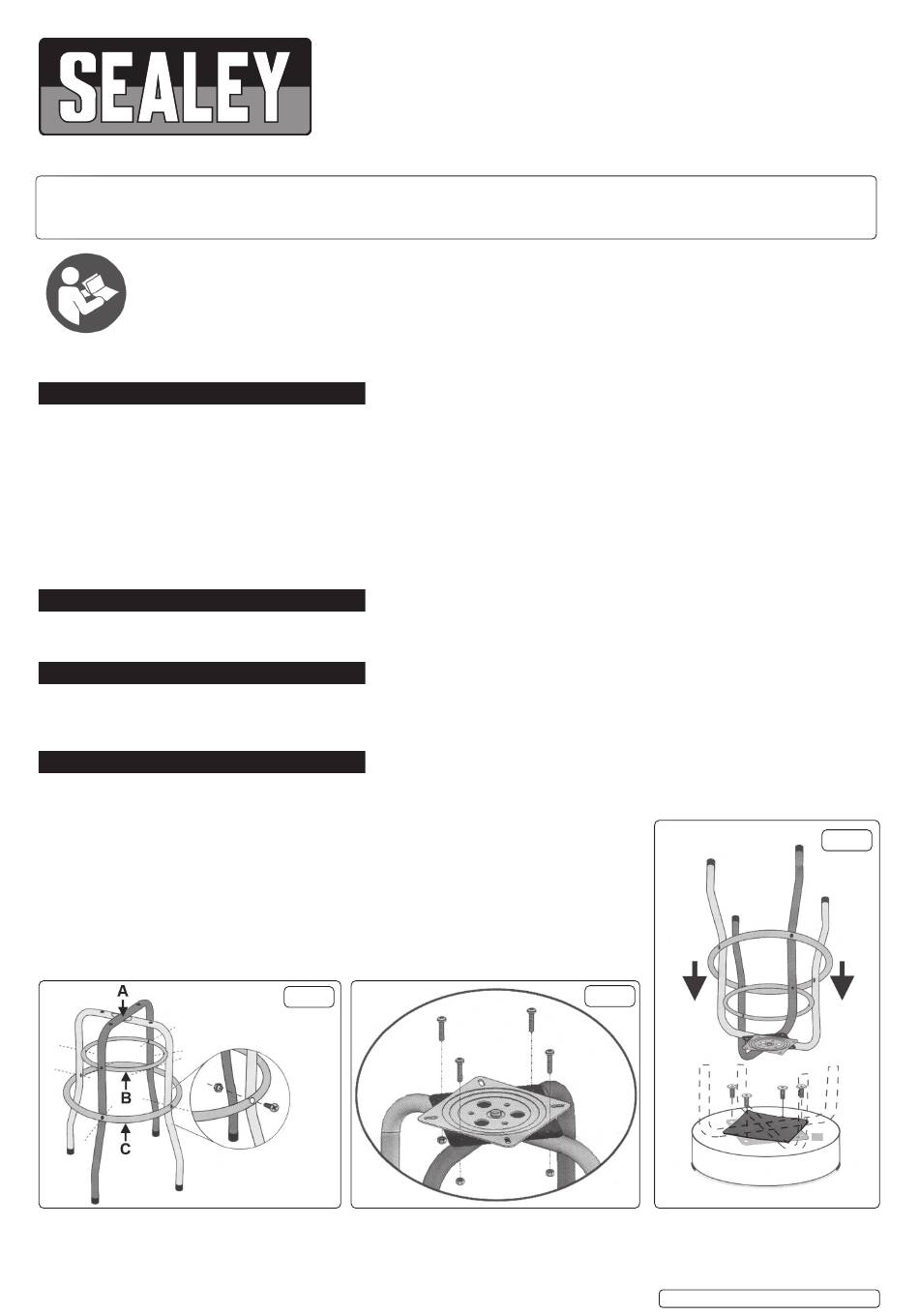

4.1.1. Take the two leg frames and cross them over with the flattened sections together. See fig.1A.
4.1.2. Fix together with the small internal ring (fig.1B). Secure with nut and bolt through each hole.
4.1.3. For added support attach the outer ring (fig.1C) and secure with nuts and bolts.
4.2. SWIVEL PLATE
4.2.1. Place the swivel plate on top of the frame as in fig.2. Secure with 4 nuts and bolts
4.2.2. Ensure the swivel plate rotates freely.
4.3. SEAT
4.3.1. Turn the seat over and turn the frame upside down. Lower the frame to the seat and line up the
holes in the swivel plate with the holes on the back of the seat. Secure with 4 bolts (fig.3).
4.3.2. Ensure all fixings are tight, turn the stool over.
© Jack Sealey Limited
WORKSHOP STOOL WITH SWIVEL SEAT
SCR13.V2
MODEL NO:
fig.1
Original Language Version
fig.2
SCR13.V2 Issue: 2 (H,F) 25/09/23
fig.3
