Sealey STR003E Instruction Manual

INCORPORATING EXTENSION PACK WITH 3 SHELVES
thank you for purchasing a sealey product. Manufactured to a high standard this product will, if used according to these instructions and
properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS.
USE THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE
DAMAGE OR PERSONAL INJURY, AND WILL INVALIDATE THE WARRANTY. PLEASE KEEP INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY INSTRUCTIONS
1.1 GENERAL SAFETY
WARNING! Ensure Health & Safety, and local authority regulations

are adhered to when assembling and using this racking system.
Locate the racking in a suitable area where it will not be an

obstruction.
Keep the general area clean, uncluttered and ensure there is

adequate lighting.
WARNING! Erect the racking on a level and solid surface such

as concrete.
Keep children and unauthorised persons away from the storage

area.
DO NOT use the racking for any purpose other than that for

which they are designed.
DO NOT site the racking out of doors.

DO NOT get the racking wet or use in damp or wet locations or

areas where there is condensation.
DO NOT clean the cross beams with any solvents which may

damage the coated surface.
Ensure that the racking is properly assembled before loading

with heavy tyres.
Maximum load for each rack is 200kg. Load must be evenly

distributed.
Where possible the unit should be fixed to the wall with suitable

fixings
Place heavier items on the lower racks.

Where possible heavier items should be evenly distributed across

the racks.

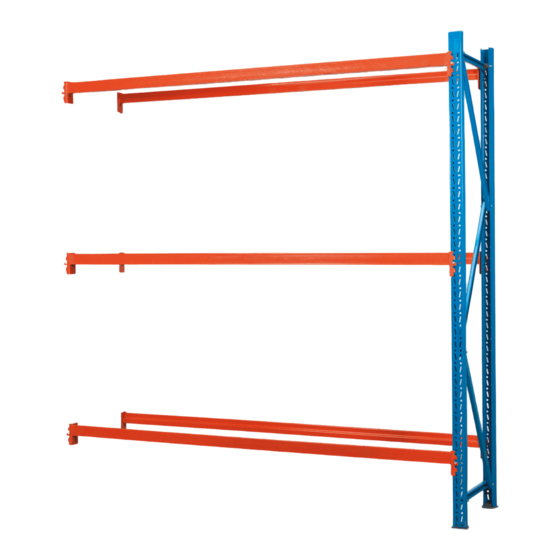

2. INTRODUCTION
three level static tyre rack system helps keep working area clean
and tidy. stores up to 16 tyres per level with a total capacity of 600kg
(200kg/Level). steel construction with a powder coated finish giving
anti-corrosion resistance.
Height: 1980mm Width: 1830mm
InstructIon MAnuAL for:
TYRE RACKING SYSTEM 200KG CAPACITY
PER LEVEL
MoDEL no:
3. CONTENTS

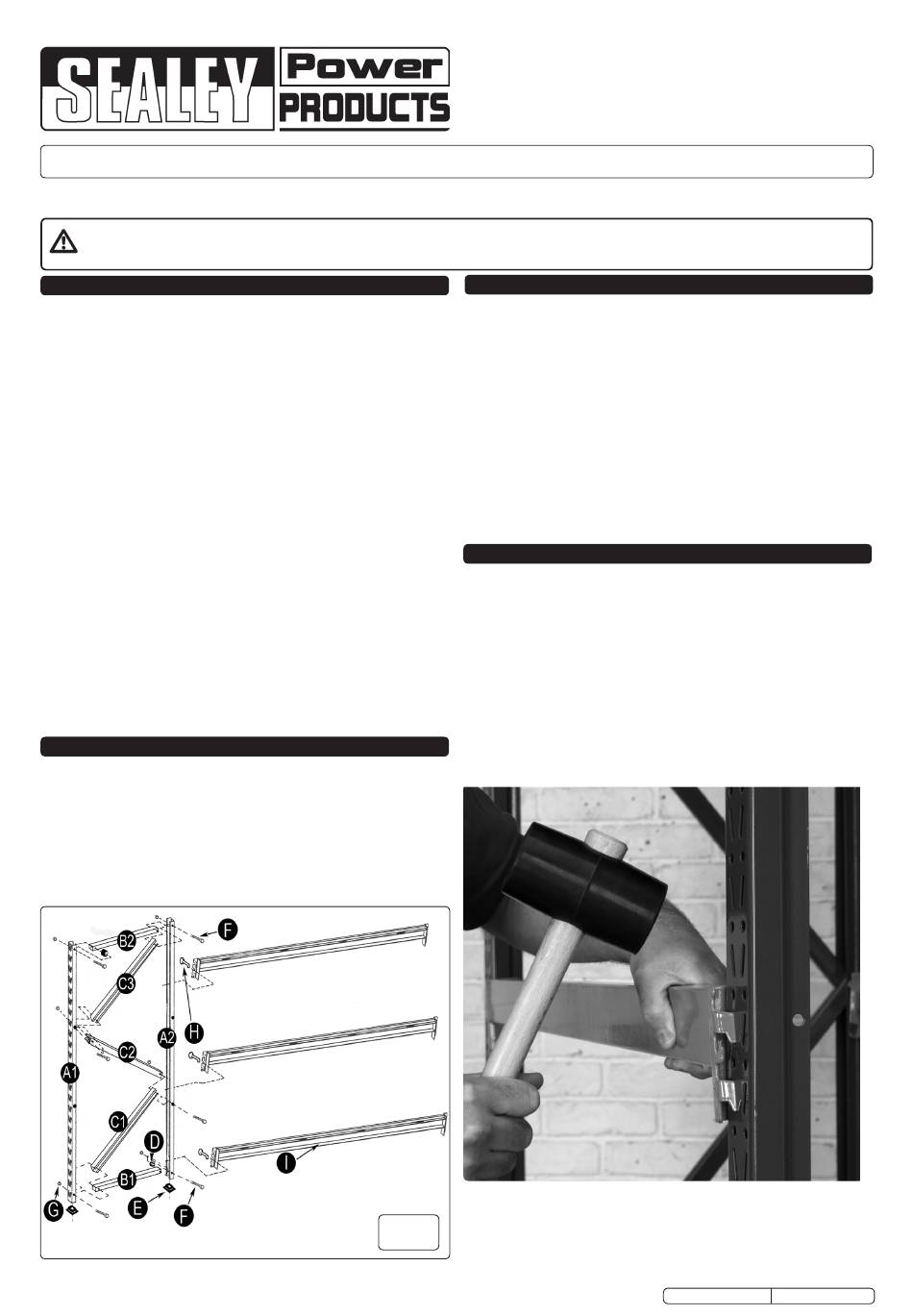

carefully unpack the product and check the contents (fig.1)
against the list below. should any items be missing or damaged,
immediately contact your sealey dealer.
Part Description............................................................ Quantity
A upright .........................................................................................4
B Horizontal Brace ..........................................................................4
C Diagonal Brace ............................................................................6
D spacer .........................................................................................4
E rubber foot ................................................................................4
F Bolt M8 x 50mm ........................................................................12
G nut M8 .......................................................................................12
H Locking Pin ................................................................................12
I cross Beam.................................................................................6
4. ASSEMBLY
Warning! Before assembly and use ensure you have read,

understood and apply Section 1 safety instructions.
4.1 It is recommended that this tyre racking system be assembled by
two people. When installing the cross beams it is advisable to
use a rubber mallet. Do not use a hard faced hammer as this will
damage the surface finish of the cross beams. Make sure that all
the clips lock in place securely and safety bolts are fitted before
using the unit. Do not use any parts that are damaged and/or
distorted as these may assemble incorrectly and result in an
installation that is unsafe and which may cause injury or damage
when the shelves are loaded.
Depth: 455mm
fig.1
Original Language Version
STR003
STR003E
MoDEL no:
str003 & str003E IssuE 2 28/06/12
