- Page 1 INSTALLATION AND OPERATION MANUAL © 2024 Sy-Klone International, All rights reserved • support@sy-klone.com • www.sy-klone.com/support.html • SYKMKTINSTRA+2 A • 1...
-
Page 2: Table Of Contents
SETTINGS: FILTER IDENTIFICATION . . . . . . . . . . . .9 © 2024 Sy-Klone International, All rights reserved • support@sy-klone.com • www.sy-klone.com/support.html • SYKMKTINSTRA+2 A • 2... -
Page 3: Getting Started
During setup or once the system has been installed, accessing support is only a click away . Scan the QR code on the information screen to visit Sy-Klone .com/RAinfo directly . © 2024 Sy-Klone International, All rights reserved • support@sy-klone.com • www.sy-klone.com/support.html • SYKMKTINSTRA+2 A • 3... -
Page 4: Section 1: Technical Specifications
1.5in [38.1mm] [101.6mm] 3in [76.1mm] 5.5in CAN/auxiliary [139.7mm] port 5.5-foot [1.67m] Power cable with Deutsch connector 6-foot [1.83m] 2.15in Connection cable 2.78in [54.6mm] [70.5mm] © 2024 Sy-Klone International, All rights reserved • support@sy-klone.com • www.sy-klone.com/support.html • SYKMKTINSTRA+2 A • 4... -
Page 5: Section 2: Introduction

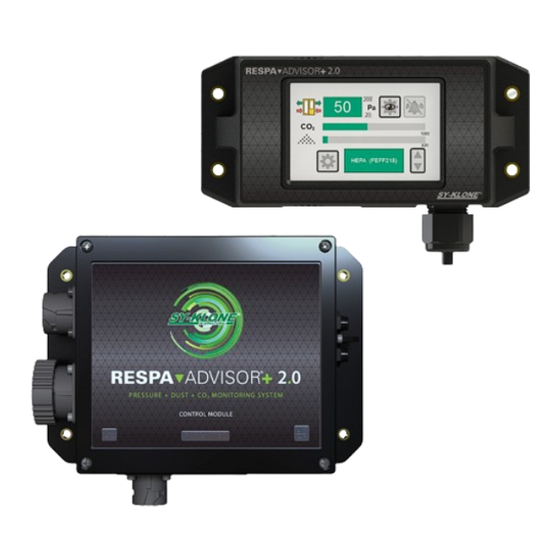

Interior Pressure Port Connection Cable Port to monitor CAN/Auxiliary Output Connection cable to control module Power cable with Deutsch connector © 2024 Sy-Klone International, All rights reserved • support@sy-klone.com • www.sy-klone.com/support.html • SYKMKTINSTRA+2 A • 5... -
Page 6: Section 3: Installation
SECTION 3: INSTALLATION If the system installation is correct, the RESPA Advisor+ 2.0 system will start when the key is turned on. If it does not, check wiring . A startup screen with the RESPA Advisor+ 2 .0 logo will appear and fade to the Main Display screen . -
Page 7: Section 4: Settings/Options
Date and Pressure time setpoints Upload Dust firmware setpoints update Pressure units setpoints Home Info Future Data logging and download functionality © 2024 Sy-Klone International, All rights reserved • support@sy-klone.com • www.sy-klone.com/support.html • SYKMKTINSTRA+2 A • 7... -
Page 8: Settings: Date And Time
. You can track your passcode changes here: Date Passcode Date Passcode Default passcode 56538 Recalibration passcode 77779 © 2024 Sy-Klone International, All rights reserved • support@sy-klone.com • www.sy-klone.com/support.html • SYKMKTINSTRA+2 A • 8... -
Page 9: Settings: Filter Identification
All installed filters can be viewed by using the Up/Down Filter Selection buttons . Press the Home button to return to the Home screen . © 2024 Sy-Klone International, All rights reserved • support@sy-klone.com • www.sy-klone.com/support.html • SYKMKTINSTRA+2 A • 9... -
Page 10: Filter Identification Specifications
Ejective Standard OF131 Odor Custom Custom Custom Custom Custom 1000 Custom * PF = Particulate Filter, GF = Gas+Particulate Filter, OF = Odor+Particulate Filter © 2024 Sy-Klone International, All rights reserved • support@sy-klone.com • www.sy-klone.com/support.html • SYKMKTINSTRA+2 A • 10... -
Page 11: Settings: Filter Life Hours
. Press the Confirm button when changes are complete . © 2024 Sy-Klone International, All rights reserved • support@sy-klone.com • www.sy-klone.com/support.html • SYKMKTINSTRA+2 A • 11... -
Page 12: Settings: Dust Indicator Setpoint
Home button to return to the main display .must be below that level before the alarm sounds . Press the Confirm button when changes are complete . © 2024 Sy-Klone International, All rights reserved • support@sy-klone.com • www.sy-klone.com/support.html • SYKMKTINSTRA+2 A • 12... -
Page 13: Settings: Data Logging Interval
. It will not affect any other files on your USB if there are any . © 2024 Sy-Klone International, All rights reserved • support@sy-klone.com • www.sy-klone.com/support.html • SYKMKTINSTRA+2 A • 13... -
Page 14: Settings: Upload System Update
77779 . Silence Alarm button Silence Alarm Alarm silenced © 2024 Sy-Klone International, All rights reserved • support@sy-klone.com • www.sy-klone.com/support.html • SYKMKTINSTRA+2 A • 14... -
Page 15: Co Level Warning And Alarm
. • The alarm condition will remain until the expired filter(s) is replaced . (See “Replacing the filter” on page 16 .) © 2024 Sy-Klone International, All rights reserved • support@sy-klone.com • www.sy-klone.com/support.html • SYKMKTINSTRA+2 A • 15... -
Page 16: At-A-Glance Dashboard Screen
If you wish to reset the filter-life hours after reassigning the filter . See “Settings: Filter Life hours” on page 11 . Step 2 © 2024 Sy-Klone International, All rights reserved • support@sy-klone.com • www.sy-klone.com/support.html • SYKMKTINSTRA+2 A • 16... -
Page 17: Additional Capabilities
2 . From the Home screen, tap the Settings button . 3 . On the passcode screen, enter 77779 and tap Confirm button . 4 . The unit will recalibrate the pressure . © 2024 Sy-Klone International, All rights reserved • support@sy-klone.com • www.sy-klone.com/support.html • SYKMKTINSTRA+2 A • 17...
