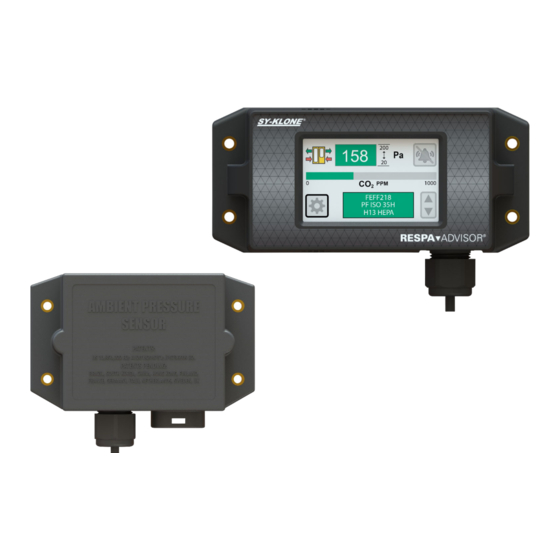

- Page 1 OPERATION MANUAL Sy-Klone.com/RAinfo In-cab Main Module ISO 23875 Compliant External Ambient Pressure Sensor (APS)
-
Page 2: Table Of Contents
Operation Manual Table of Contents Technical Specifications Section 5: User Options …..… 3 Setting Options .………………....8 Section 1: Getting Started Alarm Volume Setting ………….……….… 8 Pressure Units of Measure Setting ……… 9 Download RESPA Advisor+ Phone App … 4 Pressure Alarm Setting …………………… 9 Access Online Resources …………….. -
Page 3: Technical Specifications
Operation Manual Technical Specifications Voltage: 12-24 VDC (Undervoltage protection @ 10 VDC; Overvoltage protection @ 30 VDC) Current Consumption: • Main Module: Less than 30 mA • Ambient Pressure Sensor: Less than 0.6 mA Inside/Outside Operating Temperature Rating: • Main Module: -10°C to 60°C (Inside cab) •... -
Page 4: Section 1: Getting Started
Data logs can be downloaded via Bluetooth to the RESPA Advisor+ smart phone app and then shared to your computer, tablet, or other devices for further data analysis. To get started and access data logging, visit Sy-Klone.com/RAinfo. To learn more about Data Logging, see page 14. Access Online Support Resources Visit Sy-Klone.com/RAinfo to:... -
Page 5: Section 2: Introduction
• wiring Y-harness to connect to the RESPA power source is available through • High Alarm Threshold: 200 Pascal at 6 seconds your authorized Sy-Klone reseller. • Alarm Thresholds: Primary 1000 PPM, Secondary 2500 PPM Identification and Function of Parts... -
Page 6: Section 3: Installation Mounting
• The wire can be routed behind the cab panels as desired. can be used for main module installation. • If needed, Sy-Klone offers a wiring harness kit (RCF2915) that includes 20-feet of wire with Deutsch connector, and heat-shrink, **Failure to follow these instructions can result in non-function or permanent zip-ties, and clamps to secure cable. -
Page 7: Manual Filter Identification
Operation Manual Manual Filter Identification Selected filter Assigned filter display display Manual Filter Information Filter There are six assignable filter locations (2- selection button 4, 6-8) that can house any of the listed Sy- Klone filters. (See page 10) Filter Filter location location Location 1 and 5 are reserved for future... -
Page 8: Section 5: User Options Setting Options
Operation Manual Section 5: User Options Setting Options Main User-specific options can be changed in the Main Menu menu 1000 screen. To enter the user options, the PIN code must be button FEFF218 PF ISO 35 H entered. The default setting is 56538. (See PIN Code H13 HEPA Setting, page 11) To enter the Main Menu screen:... -
Page 9: Pressure Units Of Measure Setting
Operation Manual Pressure Units of Measure Setting Press either the Pascal button or Inches of H O button to select the unit of measure for the alarm thresholds and real-time pressure display. Note: Selected unit will highlight in green. After selecting Pascal inH2O units, you will be returned to the Main Menu screen. -
Page 10: Filter Identification Specifications
The RESPA Advisor+ includes manual filter tracking for better insight on when to change your fresh or recirculated air filter. Below are the default settings for Sy-Klone RadialSHIELD particulate, gas, and odor filters. To accommodate future filter releases, a CUSTOM filter option is included. For additional information on ®... -
Page 11: Mute Length Setting
1. Use the Up/Down Primary Alarm Threshold buttons to Adjust primary adjust the CO PPM alarm level for the primary alarm threshold buttons (Sy-Klone recommends setting the primary CO alarm at the Primary CO alarm threshold ambient CO level + 400 PPM). -
Page 12: Section 6: User Operation
Operation Manual Section 6: User Operation Filter Identification The Filter Identification display will show the filter information for the filter installed. Use the Up/Down 1000 Filter Selection buttons to view the filter information FEFF218 PF ISO 35 H for any other filters installed. H13 HEPA Filter selection Filter identification... -
Page 13: Pressure Warning And Alarm
Operation Manual Pressure Warning and Alarm • When the pressure reduces to 10% (of the range) above the set low-pressure alarm threshold, the cab pressure level display color will change to amber. 1000 When the pressure level reaches the set low-pressure alarm threshold, the •... -
Page 14: Muting The Alarm
Info button Cancel button buttons. The APS should now show in the button button Connected Devices display. NOTE: If the RESPA Advisor+ still cannot be connected to an Ambient Pressure Sensor (APS), contact Sy-Klone at support@sy-klone.com. ENGLIT0000342 D June 2021 Sy‐Klone.com/RAinfo... -
Page 15: Recalibrating The Monitor
QR code provided in the information screen for instructions on how to access to the Sy-Klone phone application. 1. On the monitor, press the Download Logs button to allow the Sy-Klone phone application to connect to the RESPA Advisor+.
