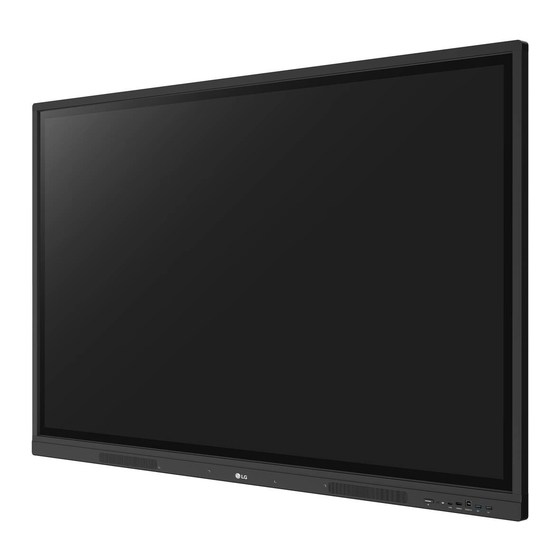

LG 98TR3DK-B Owner's Manual

Hide thumbs Also See for 98TR3DK-B:
Table of Contents

Advertisement

Quick Links

Download this manual
OWNER'S MANUAL
LG Digital Signage
(MONITOR SIGNAGE)
Please read this manual carefully before operating your set and retain it for future
reference.
55TR3DK-B
55TR3DK-I
65TR3DK-B
65TR3DK-I
75TR3DK-B
75TR3DK-I
86TR3DK-B
86TR3DK-I
98TR3DK-B
98TR3DK-I
Copyright © 2023 LG Electronics Inc. All Rights Reserved.
www.lg.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 98TR3DK-B and is the answer not in the manual?

Questions and answers

Related Manuals for LG 98TR3DK-B

Summary of Contents for LG 98TR3DK-B

  • Page 1 LG Digital Signage (MONITOR SIGNAGE) Please read this manual carefully before operating your set and retain it for future reference. 55TR3DK-B 55TR3DK-I 65TR3DK-B 65TR3DK-I 75TR3DK-B 75TR3DK-I 86TR3DK-B 86TR3DK-I 98TR3DK-B 98TR3DK-I www.lg.com Copyright © 2023 LG Electronics Inc. All Rights Reserved.

  • Page 2: Table Of Contents

    Table of Contents Getting to Know the Product 3 Precautions for Use Checking Components . . . . . . . . . . . . . . . . .3 Dust .

  • Page 3: Getting To Know The Product

    An electronic blackboard is a display product that can be used by touching the screen. A touch pen, remote control and others are provided with the product. If any of the listed components are missing, contact customer support. LG Electronics also sells optional components that can help you use the product more effectively as separate purchases.
  • Page 4 Checking Components Remote control and batteries Electronic blackboard Owner’s manual and warranty (AAA, 2 pieces) HDMI cable Power cable TOUCH cable USB Type-C cable Touch pens and pen tips (2 each) WiFi dongle Note • : Depending on country • The components provided in the box may vary depending on the region and model.

  • Page 5: Checking Optional Components

    Optional components may change without prior notice to improve product performance. New components may be added. Note • All optional components are separate purchases. Contact LG Electronics if you wish to purchase them. • Component images shown in the owner’s manual are for the user’s understanding and may differ from actual components.

  • Page 6: Installing The Product

    Electronics Standards Association) standard specifications. Screw Maximum Length Model Name VESA Dimensions (A x B) (mm) Quantity Specifications (mm) 55TR3DK-B 400 x 200 55TR3DK-I 65TR3DK-B 600 x 400 65TR3DK-I 75TR3DK-B 800 x 400 75TR3DK-I 86TR3DK-B 86TR3DK-I 800 x 600 98TR3DK-B 98TR3DK-I...

  • Page 7: Installing The Product

    Installing on Wall Caution • Disconnect the power cord first before moving or installing the product. There is risk of electric shock. • Do not install the product on a ceiling or sloped wall. There is a risk of falling and injury. •...

  • Page 8: Connecting To Power

    Connecting to Power Connecting to Power Connect the power cable provided as a component to the power terminal at the bottom of the product. Press the power switch on the front of the product or next to the power terminal to turn the power on. Note •...

  • Page 9: Exploring The Product

    Exploring the Product Names of Each Part Front No . Name Explanation Screen that displays the contents of the electronic blackboard and can be Touch screen operated by touching it with your hand or with a touch pen. Speaker Outputs the sound. Touch Pen Holder Holds a touch pen by attaching it magnetically.

  • Page 10: Back

    Names of Each Part Back No . Name Explanation Handle for Used for moving the electronic blackboard. Transportation Used for mounting the electronic blackboard on a stand or installing it on a Screw Holes wall with a wall mount. Power Cable Terminal Connects the power cord.

  • Page 11: Side

    Names of Each Part Side No . Name Explanation Handle for Used for moving the electronic blackboard. Transportation Built-in PC (OPS) Slot Inserts the built-in PC (OPS). Terminals that allow you to connect each of the external devices of the following specifications.

  • Page 12: Checking The Input/Output Terminals

    Checking the Input/Output Terminals Checking the Input/Output Terminals Check the location and function of the input/output terminals for connecting external devices to the electronic blackboard. Front Cable Terminal No . Name Explanation Power Sources Turns the power on or off. USB Type-C Used to connect external devices with a USB Type-C cable.

  • Page 13: Side Cable Terminal

    Checking the Input/Output Terminals Side Cable Terminal No . Name Explanation Used to connect an cable. Used for wired internet connection. Used for data transfer or connecting USB devices such as a mouse or keyboard with a USB cable. Used for touch control of the PC screen input through the terminal.

  • Page 14: Bottom Cable Terminal

    Checking the Input/Output Terminals Bottom Cable Terminal 01 02 No . Name Explanation SPDIF Used to output audio to an external device with a SPDIF cable. Used to input audio from an external device. Used to output audio to an external device. Used to connect external devices with a cable.

  • Page 15: Using The Touch Pen

    Using the Touch Pen Using the Touch Pen The touch pen can be used for various purposes, such as touching the screen to launch menus or to take notes, annotate, and draw on data. Getting to Know the Touch Pen Functions Two pens can be used simultaneously to write or draw together.

  • Page 16: Storing The Pen

    If the touch pen tip is worn or damaged, it must be replaced with a new tip. Remove the old tip by pulling on the end with tools such as tweezers. Slide the new tip into the pen body. Note • To purchase additional touch pens or spare tips, contact LG Electronics.

  • Page 17: Precautions For Use

    Precautions for Use Dust The warranty will not cover any damage caused by using the product in an excessively dusty environment. Afterimage • After-image appears when the product is turned off. - Pixels may be damaged rapidly if a still image is displayed on the screen for a long period of time. Use the screen-saver function.

  • Page 18: Recommended Usage Condition

    Afterimage Recommended Usage Condition Change the background colour and text colour at equal intervals. - Afterimages occur less when the colours to be changed are complementary to one another. ITO or MoTi Pixel Layer Switch the screen at equal time intervals. - Take caution, and ensure that text or images from before the screen change are not left in the same location after the screen change.

  • Page 19: Product Specifications

    Spacing between touches: at least 25 mm Speaker * Applicable only to speaker-supporting models. 55/65/75/86TR3DK-B/I 15 W + 15 W (R + L) RMS audio output 98TR3DK-B/I 16 W + 16 W (R + L) Audio Input Sensitivity 0.2 ~ 2 Vrms Speaker impedance...

  • Page 20: Specifications By Model

    Power Voltage 100-240 V~ 50/60 Hz 5.5 A Dimensions (Width x Height x 1957 mm x 1160 mm x 100 mm / 58.55 kg Depth) / Weight 98TR3DK-B 98TR3DK-I Power Power Voltage 100-240 V~ 50/60 Hz 5.5 A Dimensions (Width x Height x 2244 mm ×...

  • Page 21: Resolution

    Resolution Resolution Note • Vertical Frequency: The monitor screen functions by the screen image changing dozens of times every second like a fluorescent lamp. The vertical frequency or refresh rate is the number of image displays per second. The unit is Hz. •...

  • Page 22: Usb Type-C Supported Mode

    Resolution USB Type-C Supported Mode Resolution Horizontal Frequency (kHz) Vertical Frequency (Hz) 640 x 480 / 60 Hz 31.469 59.94 800 x 600 / 56 Hz 35.156 56.25 800 x 600 / 60 Hz 37.879 60.317 1024 x 768 / 60 Hz 48.363 60.004 1280 x 768 / 60 Hz (RB)
  • Page 23 Resolution Resolution Horizontal Frequency (kHz) Vertical Frequency (Hz) 720 x 576P / 50 Hz 4:3 31.25 720 x 576P / 50 Hz 16:9 31.25 1280 x 720P / 50 Hz 16:9 37.5 1440 x 576P / 50 Hz 16:9 31.25 1920 x 1080P / 50 Hz 16:9 56.25 1920 x 1080P / 23 Hz 16:9...

  • Page 24: Hdmi / Ops Supported Mode

    Resolution HDMI / OPS Supported Mode Resolution Horizontal Frequency (kHz) Vertical Frequency (Hz) 640 x 480 / 60 Hz 31.469 59.94 800 x 600 / 60 Hz 37.879 60.317 1024 x 768 / 60 Hz 48.363 60.004 1280 x 768 / 60 Hz (RB) 47.396 59.995 1280 x 768 / 60 Hz...
  • Page 25 Resolution Resolution Horizontal Frequency (kHz) Vertical Frequency (Hz) 1080i / 60 Hz 33.75 1080i / 59 Hz 33.716 59.94 1080i / 50 Hz 28.125 1080p / 60 Hz 67.5 1080p / 50 Hz 56.25 1080p / 30 Hz 33.75 1080p / 29 Hz 33.716 29.97 1080p / 25 Hz...

  • Page 26: Licence

    Licence Supported licenses may differ by model. Visit www.lg.com for more information on licenses. The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
  • Page 27 This product qualifies for ENERGY STAR®. Changing the factory default configuration and settings or enabling certain optional features and functionalities may increase energy consumption beyond the limits required for ENERGY STAR® certification. Refer to ENERGYSTAR.gov for more information on the ENERGY STAR®...
