- Page 1 Twin 2.4GHz | ACCESS | ACCST D16 ENGLISH QUICK START GUIDE...
-
Page 2: Technical Specifications
Congratulations on your purchase of the advanced RC set KAVAN V20. We hope you‘ll enjoy many hours of undistur- bed fun with it in the utmost comfort. The V20 is a 24-channel RC set using a 2.4GHz simultaneous dual frequency transmission system with full telemetry support (Twin 2.4GHz). -

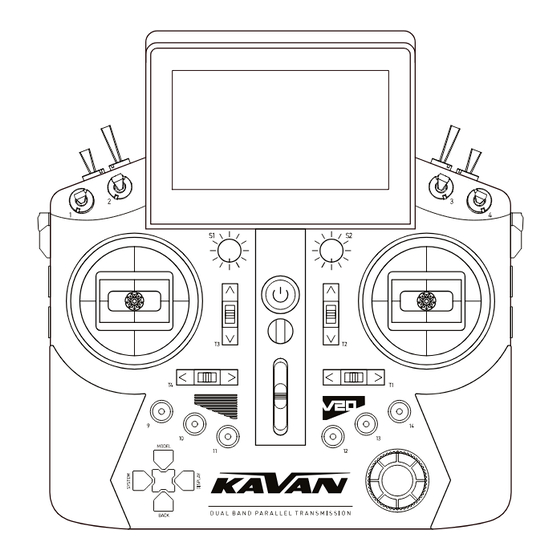

Page 3: Transmitter Description
• Resetting data • Three timers (stopwatch or timer) • Fail-safe emergency rates • Model run time • Dual rates • Transmitter run time • Rate progression setting along 2 exponential curves • Indication of preset controller positions when the or 21-point curves. - Page 4 27. Handle 31. Momentary buttons 35. MicroSD slot 28. Module connection case 32. External antenna #2 36. Smart port 29. Battery case 33. Audio jack 3,5 mm 37. Trainer port 30. Grips 34. USB-C 38. External antenna #1...
- Page 5 Find the latest information and download the ETHOS software at www.ethos.frsky-rc.com. Note: To use the ETHOS Suite app with the KAVAN transmitter without problems, always keep the transmitter boot- loader on the latest version. Also, back up your current version before upgrading.
- Page 6 Channel range The built-in RF module supports up to 24 channels. The range is adjustable and must be checked before use. In the Channel Range menu, select the number of channels you will use for the model. REGISTRATION AND PAIRING ACCESS and Twin 2.4GHz protocols Before you start using your transmitter, you must first register the desired receiver.
-
Page 7: Range Check
• The receiver is now ready for use. • If redundant connection is required, repeat for receivers 2 and 3. ACCST D16 protocol The ACCST D16 protocol does not use a registration system, but only a pairing system. Turn off power to the receiver. 2. - Page 8 Please make your claim at the shop where you purchased the product. If this is not possible, you can directly contact KAVAN Europe s.r.o.: KAVAN Europe s.r.o. | Doubravice 110, 533 53 Pardubice | Czechia | +420 466 260 133 | info@kavanrc.com...
-
Page 9: Warranty And Limitation Of Liability
RC set into your model. Likewise, we have no control over the way you build, operate and maintain the RC set parts. For this reason, KAVAN must disclaim all liability for any loss, damage or financial cost that is cau- sed by the improper use or operation of products imported by us, or that is in any way connected with such activity. - Page 10 KAVAN Europe s.r.o. +420 466 260 133 info@kavanrc.com www.kavanrc.com Doubravice 110 533 53 Pardubice Czech Republic...
