Kavan OMPHOBBY 85A Instruction Manual

Introduction
Thank you for purchasing our Brushless Electronic Speed Controller (ESC).
We strongly recommend reading this manual carefully before using this pro-
duct for the sake of safety. The manufacturer and distributor have no control
over the use, installation, or maintenance of this product, no liability may be
Important Warnings
1. Always place safety as your top priority when you use the product.
2. An electric motor that is connected to a battery pack and ESC may start
up unexpectedly and cause serious danger. Always treat a powered
system with respect. Mishandling may result in injury or death.
3. Always remove the propeller, rotor blades or disengage the pinion gear
Key Features
1. Adopting high performance 32 bit microprocessor with a running
frequency of 170MHz, supported much stronger computing ability and
faster running speed.
2. Adopting new generation craft on the MOSFET, low heat generation,
large instantly withstand current, and high reliability.
3. Self-check function: after the ESC powered on, it will automatically check
if have the power short circuit ,motor lose phase, throttle is not at zero
position problem, and voltage range.
4. The special ESC case design and the unique fan guard structure greatly
enhance the ESC heat dissipation performance.
5. Equipped with the helicopter speed-control function, the speed sensitivi-
ty is adjustable and easy to operate.
Specification
Type
Cont. Current/Burst Current
Input Voltage
Weight (g)

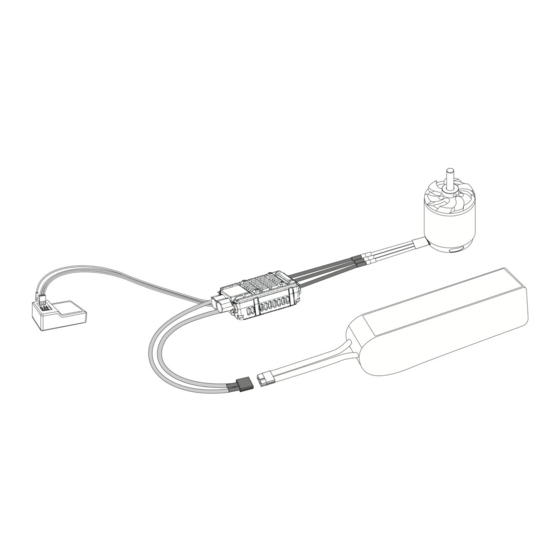

Wire Connections
Receiver
Throttle calibration procedure
(Important: Please make the throttle calibration for the first time using
ESC!!!)
1. Turn on your transmitter and when fully initiated, move the throttle stick to
the top position (ensure throttle trim is neutral first).
2. Connect your flight battery to the ESC and wait for about 2 seconds.
3. The motor will make two short beeps, lower the throttle stick to the lowest
position as soon as you hear these two beeps.
85A ESC
Instruction Manual
85A SBEC
85A/130A
3-6S LiPo
90
Motor
ESC
assumed for any damages or losses resulting from the use of the product.
We do not assume responsibility for any losses caused by unauthorized mo-
difications to our product. Besides, we have the right to modify our product
design, appearance, features and usage requirements without notification.
before the battery connected if you need to work on a plane or helicop-
ter at short range.
4. Please observe all local laws regarding the flying of remote-control
aircraft.
5. Never fly over or near people or crowds.
6. The ESC has a separate programming interface to connect with LCD
programming card or Bluetooth module for programming.
7. Supporting data returning function: current, voltage, temperature, RPM,
throttle and ESC status code.
8. Bluetooth module supported, change the parameter settings, software
upgrading, data recording and the operation can be completed via the
mobile phone (Apple and Android) APP.
9. Multiple protections: abnormal power-on voltage protection, start up
protection, temperature protection,throttle signal loss protection, over
load protection,low voltage protection, over current protection.
BEC Output
Size (mm)
Programming Way
Remark: The ESC weight and size specifications include fan.
1. Throttle signal wire (Black,Red,White): Plug into the re-
ceiver throttle channel, the white wire is transmitter
the throttle signal, the red wire and black wire is the
BEC voltage output wire and ground wire.
2. RPM signal wire (Yellow):Plug into the speed input cha-
nnel (If applicable).
Battery
4. Motor will now beep a number of times (one beep for every cell in your fli-
ght battery) followed by a longer „Beep-----Beep". This indicates that the
throttle for your ESC is now calibrated and ready to use.
6V,7.4V,8.4V adjustable /10A
71x36x33mm
LCD Program Card G2/Android&IOS APP
