All LED ASC/DMX/WS1/W Installation Manual & User Manual

INSTALLATION GUIDE & USER MANUAL
ASC/DMX/WS1 RANGE
ENSURE POWER SUPPLY IS OFF WHEN HANDLING ANY ELECTRICAL EQUIPMENT.
• This product may need to be installed by a qualified electrical installer.
• Please read this guide in its entirety to fully understand the products before attempting any install.
• All electrical work should be completed in accordance with the latest IET regulations, and/or any other relevant rules,
regulations or laws of the country in which it is being installed.
• The item must be installed in isolation from any insulating material and is adequately ventilated to prevent premature
failure.
• Ensure power supply is isolated prior to installation, maintenance or performing any other form of electrical work.
• In the event of incorrect or improper function with specific regard to any of ALL LED's products, contact ALL LED for
further advice.
Technical Specifications
Product Code
Operating Voltage (V)
Operating Current (mA)
Standby Power (W)
Class
Body Material
Ingress Protection
Ambient Operating Temperature (°C)
Guarantee
Dimming Mode
Dimensions
ASC/DMX/WS1/W ASC/DMX/WS1/B
12-24VDC 12-24VDC
20mA
<0.5W
II
Polycarbonate/Glass Polycarbonate/Glass
IP20
0°C~+45°C 0°C~+45°C
3
DMX512 Signal DMX512 Signal
86mm 29mm

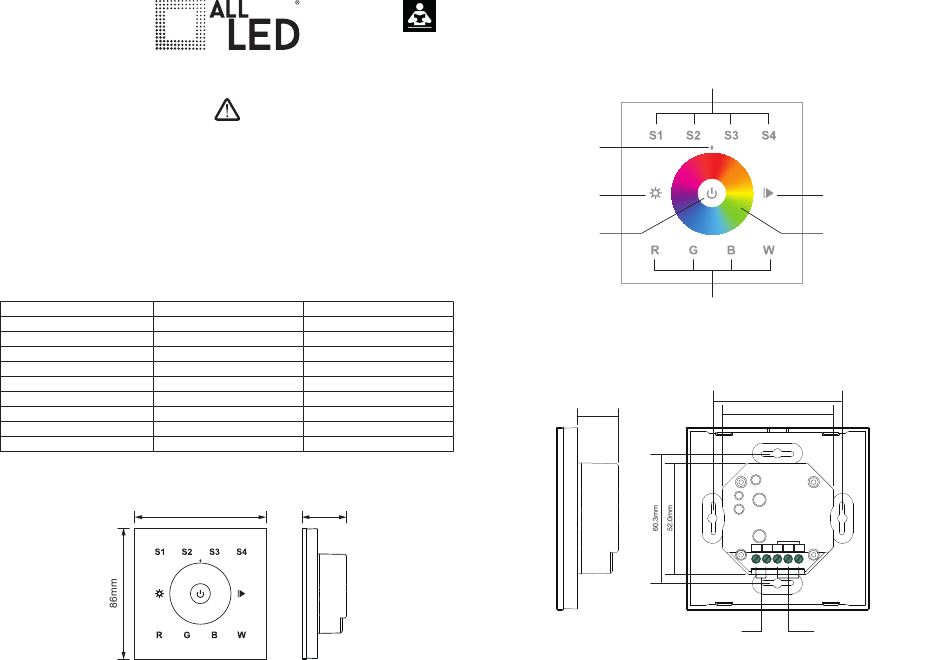

! Function Introduction
PLEASE READ
BEFORE USE!
LED indicator
Press and hold down to
increase/decrease light
intensity
Click to switch on/off
20mA
<0.5W
II
IP20
3

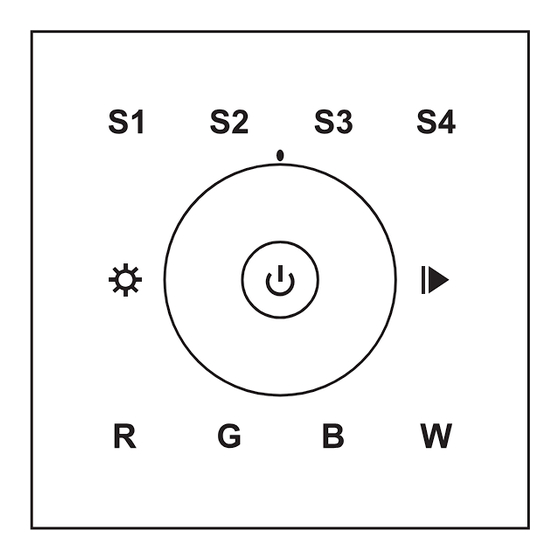

Front View
Press and hold down to save colour/effect;
Click to recall the saved option
R/G/B/W 4 channels: Click to turn on/off the channel
Press and hold down to increase/decrease light intensity of each channel
Rear View
19.4mm
DC Power Input
Click to play/pause the
10 built-in effects,
Press and hold down to
speed up/down the
running effects
Touch colour wheel, touch to
select R/G/B colour
60.3mm
52.0mm
DMX OUT
V- V+ D- D+ GND
DMX512 Signal Output
