ASSEMBLY AND MOUNTING INSTRUCTIONS
PLEASE READ THE ASSEMBLY INSTRUCTION SHEET CAREFULLY BEFORE PROCEEDING. Carefully unpack

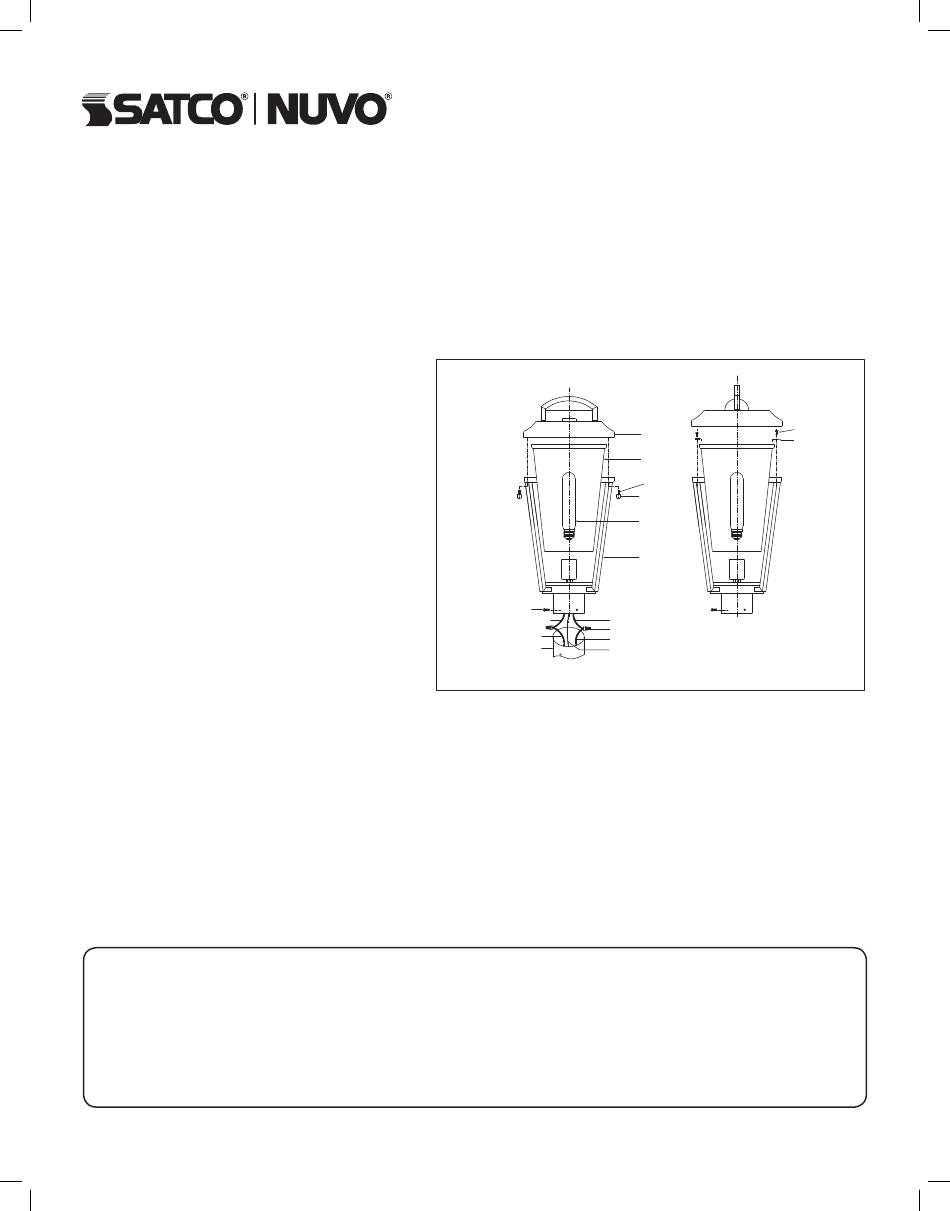

and identify all parts prior to building the unit. Each part is identified on the drawing for reference.
DO NOT DISCARD THE ORIGINAL PACKAGING. If after careful inspection, you must return the item for any
reason. Please repack the unit using the original carton and inserts.
STEP 1: Unpack all the parts and classify them
according to the illustration shown. Place the
parts on a scratch free surface.
STEP 2: Put the glass into the fixture. Install
the bulb (included).
STEP 3: Attach the cover to the body, fix it with
the ball nuts.
STEP 4: Make sure the power is turned off at
the main power cable where the fixture is to be
installed. Use the wire nuts to connect the positive
and neutral wires, connect the ground wire to the
junction box ground port.
STEP 5: Secure the fixture to the post fitter using
the screws.
STEP 6: Turn on the power at fuse or circuit box.
CAUTION:
To reduce the risk of fire, use the specified lamp wattage (or smaller) and bulb type identified on the product.
CLEANING INSTRUCTIONS:
Do not use polish or cleaners on your product. Just wipe clean with a soft cloth.
CAUTION – RISK OF FIRE
This product requires installation by a qualified electrician. Before installing be sure to read all instructions
and TURN THE POWER TO THE ELECTRICAL JUNCTION BOX OFF.
Screw
Ribbed Fixture Lead Smooth Fixture Lead
Wire Connector
White Supply Wire
Black Supply Wire
Post
Ground Wire
ITEM NO: 60-6513
Screw
Top Body
Glass Card
Glass
Stud
Ball Nut
Bulb
Body
ITEM NO: 60-6513
