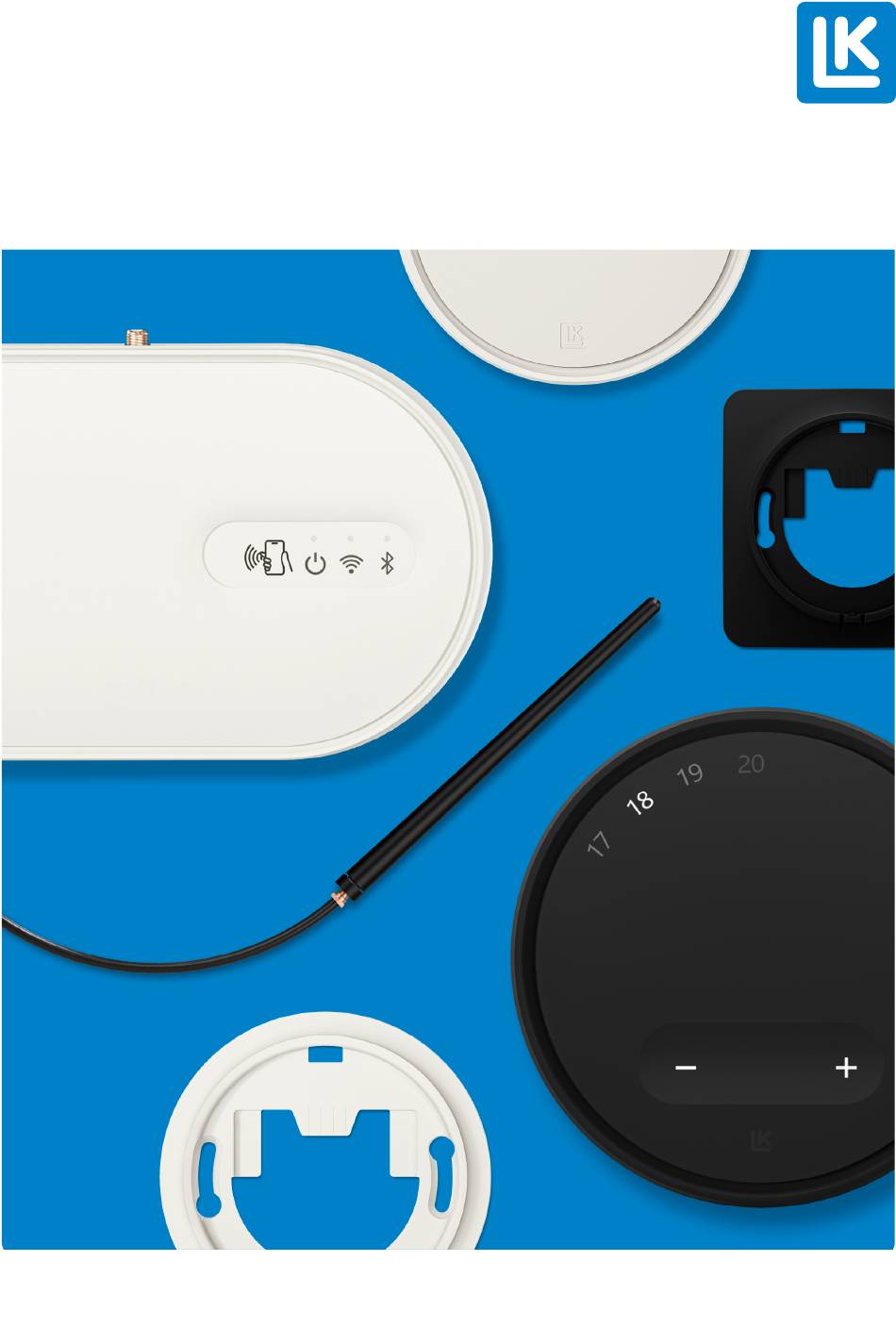

LK Room Temperature Control Arc
Assembly instructions
The assembly instructions cover all products that form part of the LK Room Temperature Control Arc system.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Control Arc and is the answer not in the manual?

Questions and answers

Related Manuals for LK Control Arc

Summary of Contents for LK Control Arc

  • Page 1 LK Room Temperature Control Arc Assembly instructions The assembly instructions cover all products that form part of the LK Room Temperature Control Arc system.

  • Page 2: Table Of Contents

    Preparations prior to installation Not included in the delivery Space required for installing LK ArcTenna Position of LK ArcHub in the manifold cabinet in relation to LK ArcTenna Position of LK ArcHub in relation to the flow indicators Installation – LK Frame UFH EXT and LK ArcTenna OnWall Installation –...

  • Page 3: Design

    LK ArcHub is fitted with a built-in gateway and connected by a network cable (not included) to a router or wireless network via the property’s 2.4 GHz WiFi. For wireless network connection, add an LK ArcTenna OnWall or LK ArcTenna InWall.

  • Page 4: Overview Diagram - Lk Room Temperature Control Arc Includes The Following Products

    1. LK ArcHub. Central unit for up to 12 actuators. 2. LK ArcTune, thermostat with touch buttons for adjusting desired values. Support for wired or wireless communication (supplemented with LK ArcByWire and LK ArcBatteries). 3. LK ArcSense, temperature sensor for automatic or app-controlled adjustment of desired values.

  • Page 5: Overview Diagram - Lk Archub

    Assembly instructions | LK Room Temperature Control Arc Overview diagram – LK ArcHub 1 - 12 BUS A - D USB A Ethernet Power Removing the cover from LK ArcHub EN.33.C.219.2024-02-20 5 (33)

  • Page 6: Preparations Prior To Installation

    Connection to the internet during installation is required to use the system in offline mode for configuration and automatic registration with LK Systems. This can be done using the MyLK app. The central unit will then act completely independently without being connected to the internet and serves all underfloor heating control locally.

  • Page 7: Not Included In The Delivery

    * Hotspot is a place with public WLAN coverage. Go to the smart phone's mobile-hotspot-connection settings to connect to the internet. The smart phone can then act as a router for other devices with Wi-Fi functionality, e.g. LK ArcHub, which must be connected.

  • Page 8: Space Required For Installing Lk Arctenna

    Position of LK ArcHub in the manifold cabinet in relation to LK ArcTenna EXCEPTION! In a manifold cabinet with a width of 1050 cm, the cable length of LK ArcTenna limits where LK ArcHub can be placed. Take into account the position of the electrical socket in the manifold cabinet.

  • Page 9: Position Of Lk Archub In Relation To The Flow Indicators

    NOTE! LK ArcHub’s position can be adjusted to the right or left if the cabinet is less than 1050 cm wide. Drill a hole in the panel where LK ArcHub is to be placed. Take into account the position of the electrical socket in the manifold cabinet.

  • Page 10: Installation - Lk Frame Ufh Ext And Lk Arctenna Onwall

    Step 1. Install LK Frame INB (4 screws) on the manifold cabinet. Step 2. Make a mark on the wall where LK Frame INB ends. Then remove the frame again. Add a mark at least 10 mm above the first mark.
  • Page 11 Assembly instructions | LK Room Temperature Control Arc Step 3. A. Hold the back of LK ArcTenna OnWall up against the wall. The lower edge of the back must be at least 10 mm above the frame of LK Frame INB. Use a spirit level to check that the back is sitting straight.
  • Page 12 There is enough space to pull the antenna cable(s) into the cabinet without needing to drill a hole. Step 6. Thread LK ArcTenna OnWall’s cables through the hole (one at a time). Then screw the back of LK ArcTenna OnWall to the wall. Place the cover on LK ArcTenna OnWall.
  • Page 13 Power Step 9. Screw the antenna cables to LK ArcHub’s antenna brackets so that LK ArcHub and LK ArcTenna OnWall are interconnected. Adjust the position of LK ArcHub until there is space for the power cable behind the flow indicators.
  • Page 14 Assembly instructions | LK Room Temperature Control Arc Step 10. Install LK ArcHub in the manifold cabinet. Step 11. Connect the thermostats to LK ArcHub. See Connection – LK ArcHub. EN.33.C.219.2024-02-20 14 (33)

  • Page 15: Installation - Lk Arctenna Inwall

    Assembly instructions | LK Room Temperature Control Arc Installation – LK ArcTenna InWall Step 1. Then knock-out two holes for the antenna rods. NOTE! If the manifold cabinet is already installed, knock out the holes from inside the cabinet. If the manifold cabinet is waiting to be installed, knock out the holes from the top of the cabinet.
  • Page 16 Min. 200 mm LK ArcTenna InWall Step 4. Remove the cover from LK ArcHub. Connect the power cable to LK ArcHub. Hold LK ArcHub in front of the cabinet. Power Step 5. Adjust the position of LK ArcHub until there is space for the power cable behind the flow indicators.

  • Page 17: Installation - Lk Arcframes With Or Without Wall Box

    Assembly instructions | LK Room Temperature Control Arc Step 6. Install LK ArcHub in the manifold cabinet. Connect the thermostats to LK ArcHub. See Connection – LK ArcHub Installation – LK ArcFrames with or without wall box NOTE! Use countersunk screws. Screws not included. LK ArcFrame Neat does not cover the wall box.

  • Page 18: Installation - Lk Arcbywire

    Assembly instructions | LK Room Temperature Control Arc Installation – LK ArcByWire NOTE! Make sure that the ArcByWire clicks firmly into the wall bracket. If necessary, apply some light pressure with a slotted screwdriver. * Refers to serial connection, permanent locations.

  • Page 19: Connection - Lk Archub

    ArcHub 1 - 12 BUS A - D USB A Ethernet Power Wired connection between actuators and terminals 1-12 and wired connection between BUS A-D and LK ArcByWire. NOTE! NOTE! Do not connect in the middle (NC), Max. one actuator per terminal. Any polarity.

  • Page 20: Examples Of Different Types Of Connections

    The wired examples on the connection variants are not connected to any specific BUS terminal but can be constructed from all four BUS terminals. A total of 12 LK ArcTune or LK ArcSense can be installed in any mix. Example 1. Wireless connection.
  • Page 21 Assembly instructions | LK Room Temperature Control Arc Example 3. A combination of wireless and wired installation. E = Serial, F= Parallel and serial, G = Parallel. H = Terminal not from LK. I. Wireless. LK ArcTune LK ArcSense EN.33.C.219.2024-02-20...

  • Page 22: Replacing The Cover On Lk Archub

    * Hotspot is a place with public WLAN coverage. Go to the smart phone's mobile-hotspot-connection settings to connect to the internet. The smart phone can then act as a router for other devices with Wi-Fi functionality, e.g. LK ArcHub, which must be connected.

  • Page 23: Leds On Lk Archub

    Assembly instructions | LK Room Temperature Control Arc LEDs on LK ArcHub Product Event LK ArcHub LK ArcSense/LK ArcTune Causes error code Type Type LK ArcHub Power On Green Steady LK ArcHub White Steady LK ArcHub connecting to LK during start LK ArcHub Other errors.

  • Page 24: Maintenance

    Assembly instructions | LK Room Temperature Control Arc Maintenance Dismantling – LK ArcTune or LK ArcSense 1-2. Insert batteries. 3. Remove batteries. - LK ArcBatteries in LK ArcTune/LK ArcSense EN.33.C.219.2024-02-20 24 (33)
  • Page 25 Assembly instructions | LK Room Temperature Control Arc Disconnect the cable from LK ArcByWire EN.33.C.219.2024-02-20 25 (33)

  • Page 26: Operation And Service

    • Factory reset via LK ArcHub. Insert a paper clip into the hole on the reset button and hold it there for 10 seconds. Wait approximately three minutes. The unit will then be reset and the LEDs will be lit again.
  • Page 27 • Are all installed units visible in the app? Cleaning LK Room Temperature Control Arc can be carefully wiped with a damp cloth. The cloth must not be soaking wet. Use a mild detergent, such as washing-up liquid or a cleaning solution suitable for computers.

  • Page 28: Technical Data

    Product warranty Product warranty as per current market agreement. Software update and app support. LK supplies software updates and app support for at least 5 years from the manufacturing dates of the product. Energy declaration Energy declaration in accordance with EU 811/2013 Temperature regulator class Temperature regulator’s contribution to the seasonal mean...

  • Page 29: Note

    LK Systems AB is responsible for faults in products that appear within two years from the delivery of the product to the buyer. If LK is responsible for the fault in the product, LK has the right to replace the product with either a new or repaired product.

  • Page 30: Dimension Drawings

    Assembly instructions | LK Room Temperature Control Arc Dimension drawings LK ArcHub 37,5 LK ArcTennaOnWall 23,5 EN.33.C.219.2024-02-20 30 (33)
  • Page 31 Assembly instructions | LK Room Temperature Control Arc LK ArcTennaInwall *200±3 *170±2 *ø13±0.2 *177±2 LK ArcTennaInwall cable EN.33.C.219.2024-02-20 31 (33)
  • Page 32 Assembly instructions | LK Room Temperature Control Arc LK ArcSense ArcTune EN.33.C.219.2024-02-20 32 (33)
  • Page 33 Assembly instructions | LK Room Temperature Control Arc LK ArcFrames 87,5 EN.33.C.219.2024-02-20 LK Systems AB, Box 66, SE-161 26 Bromma, Sweden | www.lksystems.se 33 (33)
