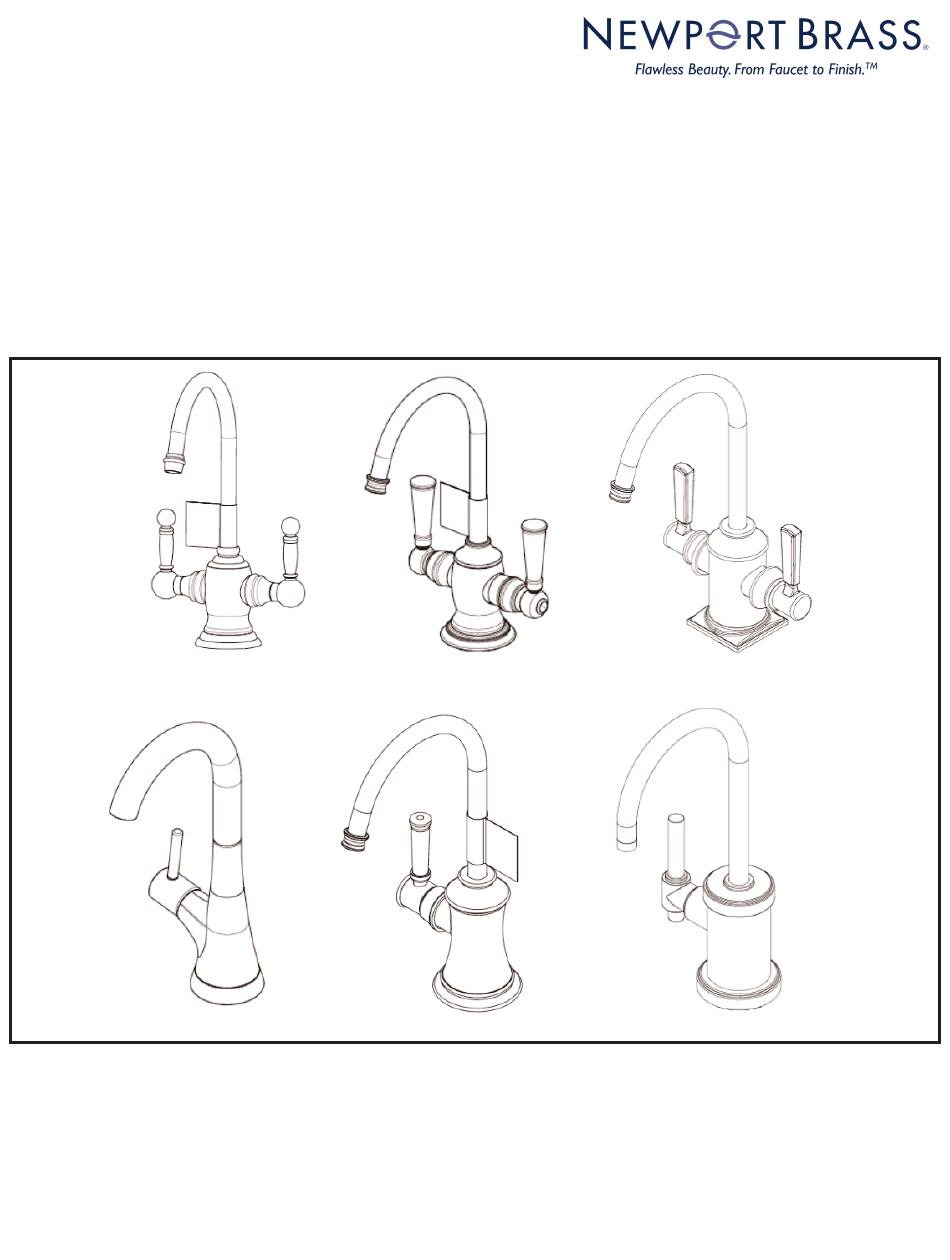

INSTALLATION INSTRUCTIONS
HOT/ COLD WATER DISPENSER
Model No's: 106, 107, 108, 1030-5603,
1200-5603, 2470-5603, 2940-5603, 3160-5603, 3170-5603,
3180-5603, 3190-5603, 3200-5603, 3210-5603, 3220-5603,
3290-5603, 3310-5603, FE-3340-5603, 106H, 107H, 108H,
1030-5613, 1200-5613, 2470-5613, 2500-5613, 2940-5613,
3160-5613, 3170-5613, 3180-5613, 3190-5613, 3200-5613,
3210-5613, 3220-5613, 3290-5613, 3310-5613, FE-3340-5613
2500-5613
Congratulations on the purchase of this
Brasstech product, an excellent choice that
will give you years of quality service and
enhance the look and style of your home.
106
2470-5603
3310-5613
3170-5603
FE-3340-5613
Advertisement
Related Manuals for Newport Brass 106
Summary of Contents for Newport Brass 106
- Page 1 INSTALLATION INSTRUCTIONS HOT/ COLD WATER DISPENSER Model No’s: 106, 107, 108, 1030-5603, 1200-5603, 2470-5603, 2940-5603, 3160-5603, 3170-5603, 3180-5603, 3190-5603, 3200-5603, 3210-5603, 3220-5603, 3290-5603, 3310-5603, FE-3340-5603, 106H, 107H, 108H, 1030-5613, 1200-5613, 2470-5613, 2500-5613, 2940-5613, 3160-5613, 3170-5613, 3180-5613, 3190-5613, 3200-5613, 3210-5613, 3220-5613, 3290-5613, 3310-5613, FE-3340-5613...
- Page 2 · Slide the 3 hoses through escutcheon, o-ring, and mounting surface hole. · Hand tighten Mounting Kit on underside of mounting surface and use a Phillip-head screwdriver to secure into place. Mounting surface Escutcheon & hole O-ring All Models Mounting Kit Figure 1 NWP-106 Rev J...
- Page 3 Note: Do ot trim Blue Tube and use it with 1/4" compression fitting. Blue Tube can only be trimmed if it is used with a quick-connect fitting that is supplied with Newport Brass Hot Water Tank. · Trim the Grey Tube as short as possible to reduce back pressure, then, connect to the center Tank Outlet utilizing the Brass Coupling.
