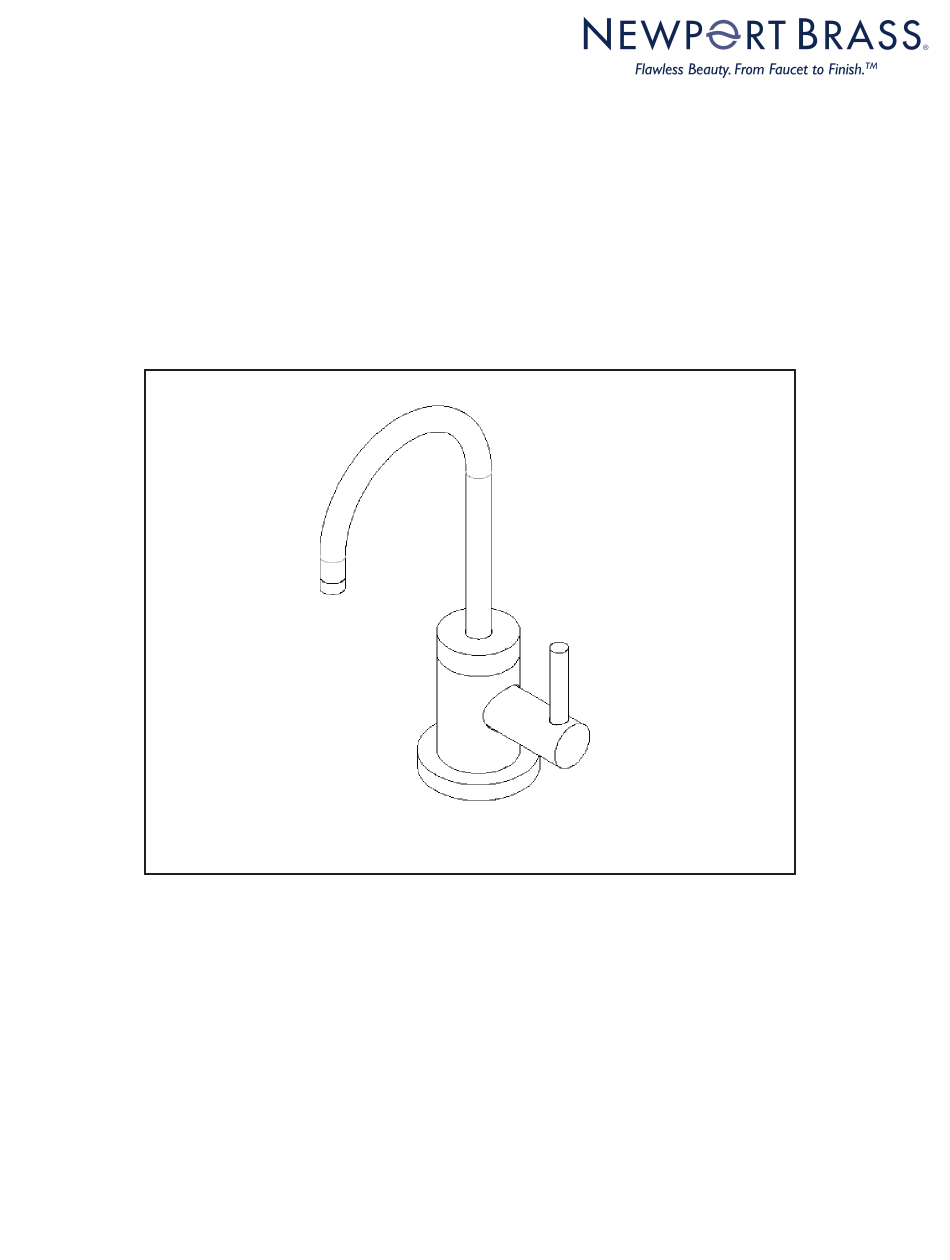

INSTALLATION INSTRUCTIONS
COLD WATER DISPENSER
Model No's:
106C, 107C, 108C, 1030-5623,
2470-5623, 1200-5623, 2940-5623, 2500-5623,
3170-5623, 3200-5623, 3210-5623,
3160-5623, 3180-5623, 3190-5623
106C
Congratulations on the purchase
of your Brasstech product,
an excellent choice, that will give you
years of quality service and enhance
the look and style of your home.
Advertisement
Table of Contents
Related Manuals for Newport Brass 106C
Summary of Contents for Newport Brass 106C
- Page 1 INSTALLATION INSTRUCTIONS COLD WATER DISPENSER Model No’s: 106C, 107C, 108C, 1030-5623, 2470-5623, 1200-5623, 2940-5623, 2500-5623, 3170-5623, 3200-5623, 3210-5623, 3160-5623, 3180-5623, 3190-5623 106C Congratulations on the purchase of your Brasstech product, an excellent choice, that will give you years of quality service and enhance...
- Page 2 · Place the faucet inlet and mounting stud through escutcheon, o-ring, and mounting surface hole. · Slide gasket and mounting cresent over mounting stud on underside of mounting surface and secure into place with mounting nut. Escutcheon Mounting surface O-ring & hole Mounting Crescent Rubber gasket Mounting nut Figure 1 NWP-106C Rev B...
- Page 3 (not included) (not included) Figure 2 3. TEST INSTALLED FAUCET · With handle in OFF position, turn on water supplies and check all connections for leaks. 2001 CARNEGIE AVE, SANTA ANA CA 92705 NWP-106C Rev B 09/27/17 (949) 417-5207 EN-3411 WWW.NEWPORTBRASS.COM...
