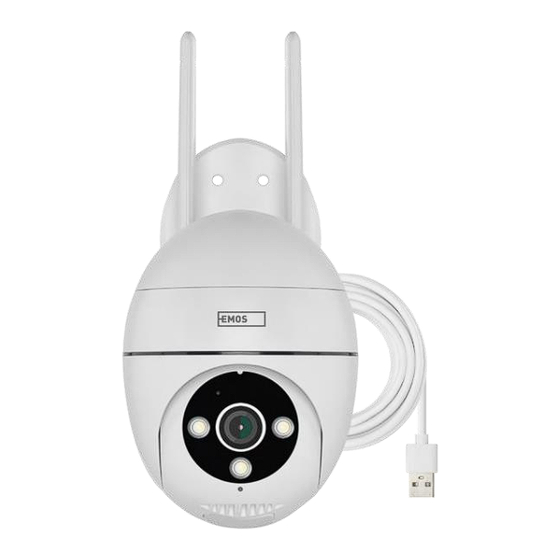

GoSmart H4057 Manual

Ip outdoor camera ip-800 wasp 5mpx
Hide thumbs

Advertisement

Quick Links

Download this manual
H4057
GOSMART IP OUTDOOR CAMERA IP-800 WASP 5MPX

Table of Contents

Safety instructions and warnings ........................................................................................... 2
Contents of the package ........................................................................................................ 3
Technical Specifications .......................................................................................................... 4
Description of the device ....................................................................................................... 5
Installation and assembly ....................................................................................................... 6
Icons and indicator lights ........................................................................................................ 9
Controls and functions ......................................................................................................... 11
Troubleshooting FAQ ........................................................................................................... 12
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the H4057 and is the answer not in the manual?

Questions and answers

Related Manuals for GoSmart H4057

Summary of Contents for GoSmart H4057

  • Page 1: Table Of Contents

    H4057 GOSMART IP OUTDOOR CAMERA IP-800 WASP 5MPX Table of Contents Safety instructions and warnings ................... 2 Contents of the package ......................3 Technical Specifications ......................4 Description of the device ....................... 5 Installation and assembly ....................... 6 Icons and indicator lights ......................9 Controls and functions ......................

  • Page 2: Safety Instructions And Warnings

    Before using the device, read the instructions for use. Observe the safety instructions in this manual. EMOS spol. s r.o. declares that the product H4057 complies with the essential requirements and other relevant provisions of the directives. The equipment can be operated freely in the EU.

  • Page 3: Contents Of The Package

    Package contents Camera Power adapter USB cable Bracket Screws Manual...

  • Page 4: Technical Specifications

    IR distance: night vision up to 10 m Lens: 4.0mm@F1.6,90° Storage: SD card (max. 128 GB), Cloud storage, NVR APP: EMOS GoSmart for Android and iOS Connectivity: 2.4 GHz Wi-Fi (IEEE802.11b/g/n) IP protection: IP65 Operating temperature: from -20 °C to 50 °C Notice The camera only supports 2.4GHz Wi-Fi (does not support 5GHz).

  • Page 5: Description Of The Device

    Description of the device 1 - Status LED • The LED flashes red: the device is waiting to connect to the Wi-Fi network. • The LED is blue: the camera is working properly. • The LED is red: the device is not working. 2 - Lens 3 - LED illuminator 4 - Microphone...

  • Page 6: Installation And Assembly

    Installation and assembly Installing the camera on the wall Use the supplied holder to place on a clean surface. Fasten with the supplied screws.
  • Page 7 QR code to download the app. EMOS GoSmart mobile app Open the EMOS GoSmart app and confirm the privacy policy and click I agree. Select the registration option. Enter the name of a valid email address and choose a password.
  • Page 8 Turn on and reset the camera using the RESET button on the bottom of the camera and continue with the application. After a successful reset, the indicator should flash rapidly. Enter the name and password of your Wi-Fi network. This information remains encrypted and is used to allow the camera to communicate with your mobile device remotely.

  • Page 9: Icons And Indicator Lights

    Icons and indicator lights Description of controls in the application Advanced settings (described in more detail in the following section) Video quality switching (HD/SD) Signal quality and speed Mute Zoom in Full screen mode Take pictures using the app and save them to your mobile album Speak Take a video using the app and save it to your mobile album Expand menu...
  • Page 10 Creation of scenes is possible directly in the main menu of the application in the section "Scenes". For example, the H4057 could be automated to turn on a private mode between 6:00 pm and 7:00 am so that the camera does not follow you when you are at home.

  • Page 11: Controls And Functions

    Controls and functions Recording to SD card One of the basic functions of the home security system is the SD card recording function. The camera is mains powered, allowing non-stop recording or recording only if the camera detects movement. Selection and scheduling of recording is possible in the camera settings in the "Recording settings" box. The camera supports SD cards with a maximum size of 128 GB in FAT32 format.

  • Page 12: Troubleshooting Faq

    Troubleshooting FAQ I can't get the devices to pair. What can I do? • Make sure you are using a 2.4GHz Wi-Fi network and have a strong enough signal • Allow the app all permissions in the settings • Make sure you are using the latest version of the mobile operating system and the latest version of the app They can hear me outside, but I can't hear the sound outside / I can hear the sound outside, but they can't hear •...
