HiSpec HSEM/LED-ST Manual

MODEL: HSEM/LED-ST
EMERALD 5W UNIVERSAL EMERGENCY BULKHEAD
WITH SELF TEST
MAIN FEATURES:
• Self test
• Hinged gear tray
• Legends included
• 3 hour emergency time
• 3 year guarantee
This instruction leaflet contains important information on the correct
installation and operation of your fitting. Read this leaflet fully before
attempting installation and retain for future reference.
Suitable for mounting on normally flammable surface. Green LED
indicator indicates battery charging mode.
Safety and Performance are in accordance with EN55015, EN61347,
EN60598-1, EN60598-2-22, EN61000-3-2, EN61000-3-3. Suitable for
indoor use, wall mounted.
If the external flexible cable or cord of this luminaire is damaged, it
shall be exclusively replaced by the manufacturer or his service agent
or a similar qualified person in order to avoid a hazard.
SPECIFICATION
Rated voltage: AC220-240V~, 50/60Hz
Operating mode: Maintained/Non- Maintained
Rated wattage: 3.5W/1.5W
LED: 27PCS SMD*0.2W LED / 5700-6700K
Discharge duration: 3 Hour
Rated lumen: 150lm
Battery: LFP 3.2V 1500mAh
Battery life: Up to 4 years
Power factor: 0.5
Operating Temp Range: 0°C - 40°C
IP Rating: IP65
Protection class: Class II
Dimensions: 352mm x 110mm x 68mm
Weight: 0.65g
Produced in accordance with: IEC 62598-2-22
HISPEC ELECTRICAL PRODUCTS LTD UNIT 21 CHORLEY NORTH BUSINESS PARK, CHORLEY, LANCASHIRE PR6 7BX | WWW.HISPEC.CO.UK | VERSION 271022
INSTALLATION
The light source contained in this luminary shall only be install by the
manufacturer or his service agent or a similar qualified person.
1. Switch off the electricity at the AC power.
2. Remove the diffuser (Figure 1).
Body installation (Figure 2).
3.
4. Electrical connection (Figure 3).
5. Attach diffuser (Figure 4).
6. Switch AC power on.
TESTING
All test functions are factory preset and do not need field adjustment
AUTO TEST PERIOD
Every 30 ± 2days PERFORMS A 25-35 SECONDS
DURATION TEST
PERFORMS A 30-35 MINUTES
Every 180 ±10days
DURATION TEST
GREEN INDICATOR STATUS
Green indicator Flashing Slowly CHARGING
Solid Green Indicator FULL CHARGE
Green Indicator Flashing Normally MONTHLY INSPECTION (25-35
SECONDS)
Green Indicator Flashing Quickly SEMI-ANNUAL INSPECTION
(30-35 MINUTES)
RED INDICATOR STATUS
Red Indicator Flashing Slowly BATTERY DISCONNECTED
Red Indicator Flashing Normally BATTERY SHORT CIRCUIT
LED DISCONNECTED
Red indicator flashing Slowly,
Green Indicator as usual
Red indicator flashing quickly, LED SHORT CIRCUIT
Green Indicator as usual
MANUAL TEST & SIMULATE AUTO TEST
Press the TEST switch In the main power state: Enter to
without release Simulate emergency state, release
restore to main power.
Press test button twice 25-35 seconds duration test
within 2 seconds (Simulate Monthly Test)
Press test button 3 times 30-35 minutes duration test
within 2 seconds (Simulate Annual Test)

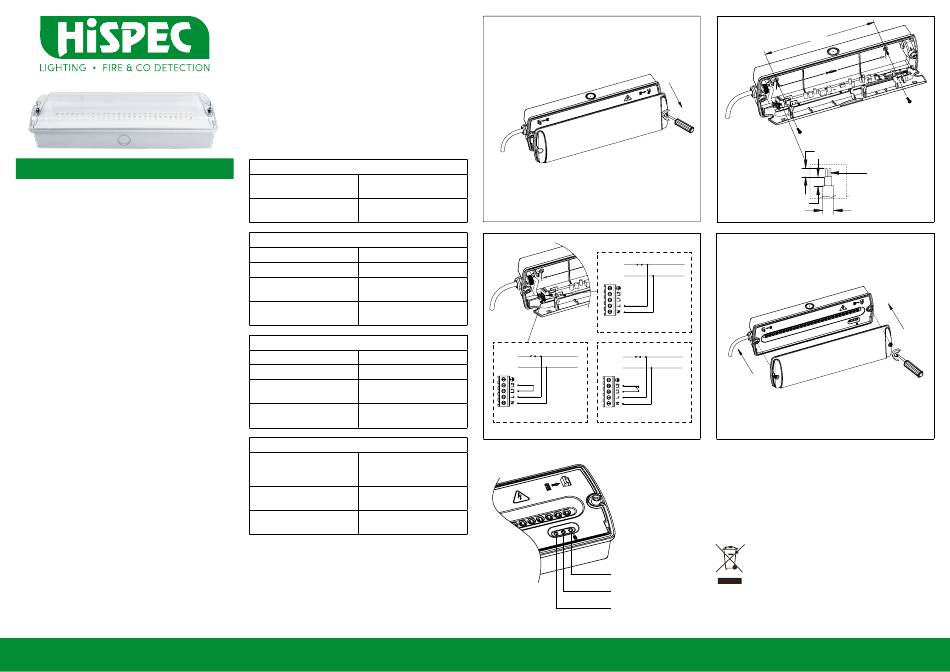

Figure 1
Figure 3
Mains lighting fuse
L
N
AC220-240V
50/60Hz
Non-maintained Lighting switch
Mains lighting fuse Mains lighting fuse
L
L
N
N
AC220-240V AC220-240V
50/60Hz 50/60Hz
Maintained Lighting switch
TEST
CHARGE LED
FAULT LED
Figure 2
240MM
8.00~10.00MM
Wire line: h05RN-F2X1.0-1.5MM
25.00~30.00MM
Ø6.5~Ø10.00mm
Figure 4
This marking indicates that this product should not be disposed
with other household wastes throughout the EU. To prevent
possible harm to the environment or human health from
uncontrolled waste disposal, recycle it responsibly to promote
the sustainable reuse of material resources. To return your
used device, please use the return and collection systems or contact the
retailer where the product was purchased. They can take this product for
environmental safe recycling.
