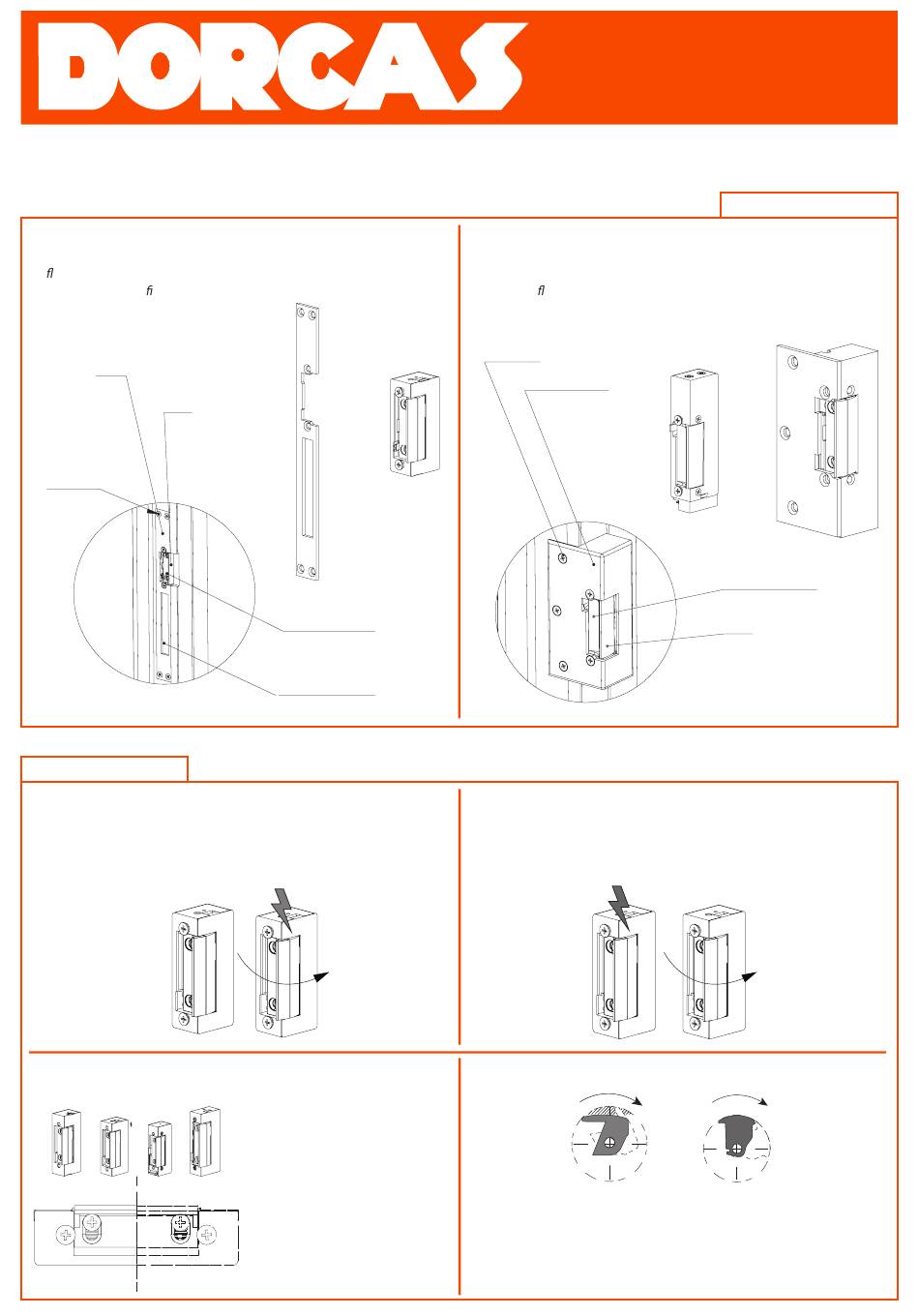

Dorcas ADCN203G Installation Instructions

An electric strike is an electromechanical device installed on the door frame allowing an electrical
opening.
Flush mounted electric
A ush mounted electric strike is a mechanism body installed into the
door frame and it's xed on using a plate.
Plate
Latch
Fasteners
Operating modes
Standard mode
An electric strike with a standard operating mode remains locked until it
recieves an electrical pulse, as long as it lasts the electric strike unlocks
the door allowing the door access.
Reversible / Non reversible
+
Mechanism body
Dead bolt cutout
Inside the full range of electric
strikes we can clasify between non
handed / handed and reversible /
non-reversible
Every symmetrical electric strike is
reversible so non handed, they can
be installed in both Din left and
Din right doors
Electric strikes
Rim electric strike installation
A rim electric strike installation is installed onto the door frame in case is
not allow a ush mounted installation. It consists of a mechanism body
and an electric strike cover.
Fasteners
Rim installation
Fail safe - (500)
Function 500 or "fail safe" works in a inverted way, that means that the
electric strike remains open until an electric pulse closes de door. In case
of power cut the doors stays open helping people to leave the building.
No radial / Radial
NO RADIAL
Radial feature incorporates a latch that spins on a displaced axis
towards the bottom of the electric strike allowing to reduce its
movement area. The instalation is easier, more aestheic and allows a
smaller cutout in the frame of the door.
Installation modes
+
Mechanism body
Latch
RADIAL
