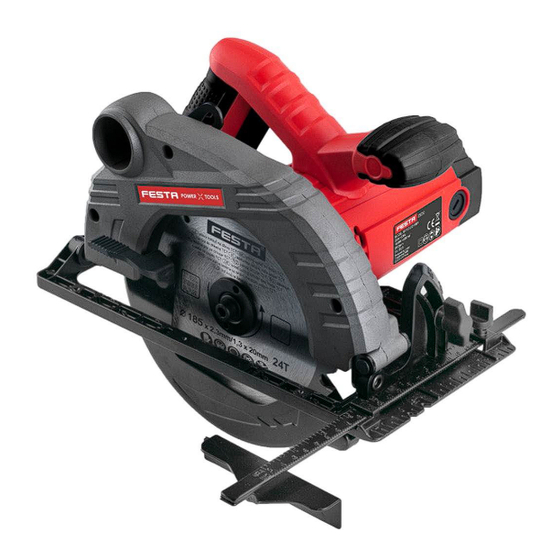

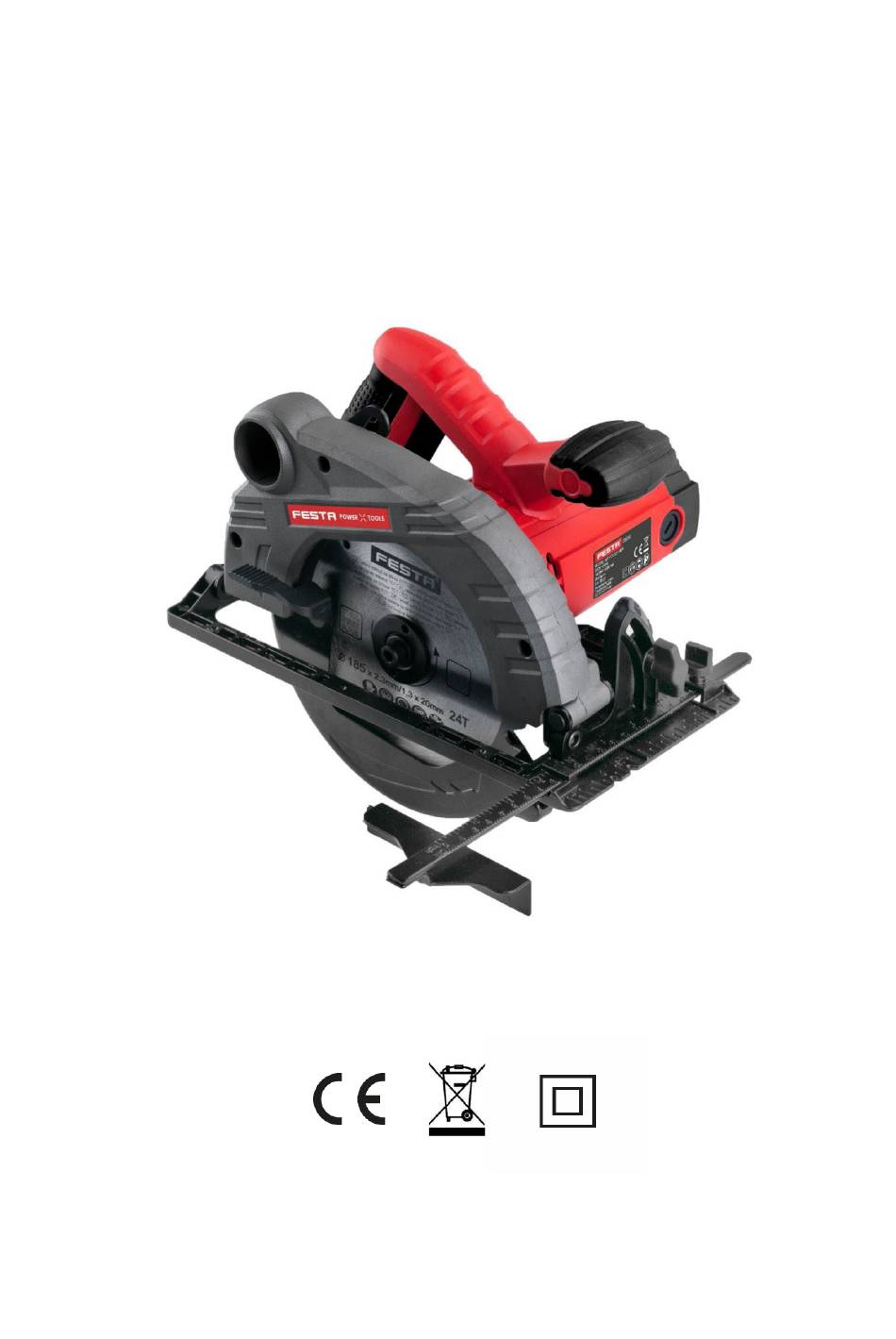

- Page 1 Circular saw Item No.: 28230 Model No.: M1Y-DU32-185R Manual for use Please read this manual carefully before using.
-
Page 2: Technical Specifications
1. Technical specifications Item No. 28230 Model No. M1Y-DU32-185R Rated voltage 230 V, 50 Hz Capacity 1400 W Protection class No-load speed 4500 min −1 Adjustable inclination angle of cut 0-45° Diameter of the disc 185 mm Disc body thickness mm±5 %... -
Page 3: Components And Controls
2. Components and controls Fig. 1... -
Page 4: Before Putting Into Operation
1. Front handle 2. Motor ventilation slots (Motor rear cover) 3. Clamping screw for longitudinal cut stop (side guide) 4. Nut for adjusting the angle of inclination of the oblique cut 5. Spindle lock button for changing the saw blade 6. - Page 5 • Saw blades intended for cutting wood and similar materials must comply with EN 847-1. Do not install any abrasive blades on the saw. • • Use only sharp saw blades that are in good condition. If the blade is dull, it causes the saw blade tips to overheat.
- Page 6 3.Then fix the saw at the set height again by using the lever (Fig 1, position 20). 3.3 Setting the angle of inclination for oblique cut If necessary, adjust the inclination angle of the saw blade within the range of 0° to 45° relative to the base plate by loosening the nut (Fig 1, position 4) and tilting the body of the saw to the required angle of inclination, then re-tighten it with the same nut.
- Page 7 3.5 Installing the longitudinal cut stop (side guide) Fig. 4 The longitudinal cut stop (Fig 1, position 9) allows for precise guidance of the cut along the edge of the processed material and also prevents the saw blade from bending during cutting. It is also used for cutting parts of the same size.
- Page 8 Fig. 6 2. Draw a cut line on the material to be cut. 5. Switching on/off and working with the saw Warning Before connecting the saw to the power source, make sure that all securing elements are properly in place and check if all protective components and parts are in their proper place and properly secured.
- Page 9 Notice If any abnormal noise, vibration or operation is noticeable during the operation of the device, immediately turn off the device, disconnect it from the power supply, then determine and repair the cause of the abnormal operation. If the abnormal operation is caused by a malfunction inside the device, have it repaired at an authorized service center.
-
Page 10: Cleaning And Maintenance
Notice • In the cutting process, run the saw towards the cutting line with equal movement and speed and light pressure. Excessive pressure on the saw leads to rapid wear of the saw blade, overheating of the saw blade tips, deterioration of cutting quality and overload of the saw blade, which can lead to damage of the saw. -
Page 11: General Safety Instructions
can move freely and return automatically after tilting. The automatic return of the lower cover is essential for safety reason. • Also clean the saw blade and treat it with oil against corrosion if necessary. Clean the oil on the saw blade before use so that the cut wood is not contaminated if necessary. If necessary, have the saw blade professionally ground. -
Page 12: Personal Safety
c) Power tools should not be exposed to rain, moisture or wetness. If water enters the power tool, the risk of electric shock increases. d) The power cord should not be used for other purposes. Power tools should not be carried or pulled by the cord, the cord should not be pulled to disconnect the plug from the socket. - Page 13 7.4 USE AND MAINTENANCE OF POWER TOOLS a) Power tools must not be overloaded. Tools must be used for the work for which they are intended. b) Do not use power tools that cannot be on and off by a switch. If the switch does not work, the tool must be repaired.
- Page 14 e) A straight-edged ruler or guide must be used when making longitudinal cutting. This improves cutting accuracy and reduces the risk of blade jamming. f) Always use a saw blade with the correct clamping hole size and shape (diamond or circular).
- Page 15 rebound. f) The levers for adjusting the depth of cut and the oblique angle of the saw blade must be tightened sufficiently and securely before cutting begins. If the blade position setting is changed during cutting, the blade may jam and be thrown back. g) Be specially careful when cutting into existing walls or other locations where there is no visibility.
-
Page 16: Disposal Of Waste
10. Meaning of symbols on labels Meets relevant EU requirements. Electrical waste, see below. Second class protection equipment. Double insulation. Use certified eye and ear protection with a sufficient level of protection. Use certified respiratory protection with adequate level of protection. Read the instructions before use. -
Page 17: Ec Declaration Of Conformity
Subjects of declaration-product identification: Product: Hand Held Circular Saw Model No.: M1Y-DU32-185R Item No.: 28230 comply with the following harmonized standards, including their amending annexes, if any, by which conformity with the following harmonization provisions is declared: 2006/42/EC: EN 62841-1:2015;...
