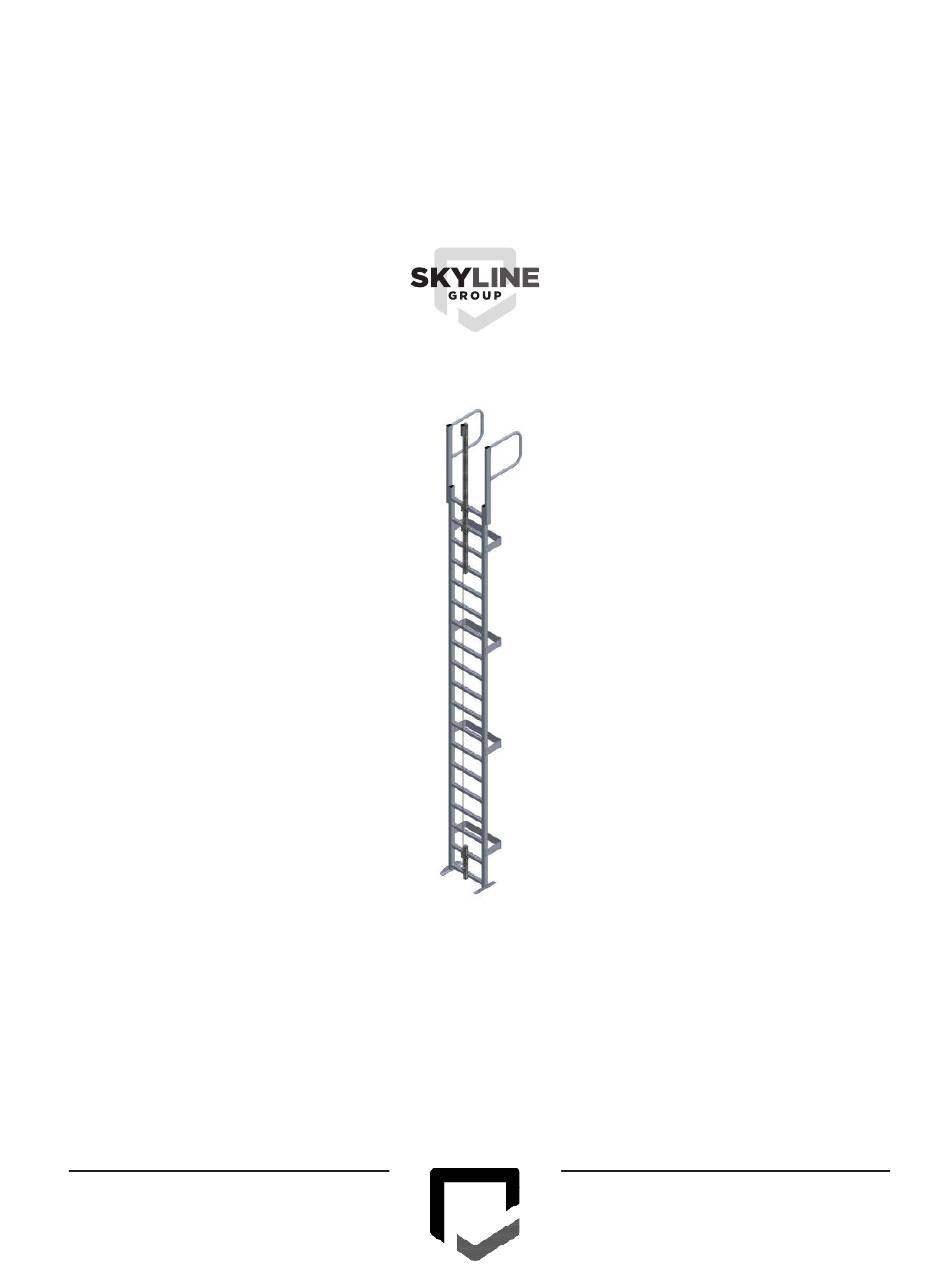

- Page 1 LIFELINE LADDER ACCESS LADDER INSTALLATION & USER MANUAL Support: +1 877 417 6336 www.skylinegroupintl.com...
- Page 2 Skyline Group expressly disclaims any liability from injury, damage, or other loss resulting from the improper or unauthorized installation or use of a Lifeline Ladder system.
-
Page 3: Table Of Contents
CONTENTS COMPONENT/TOOL REFERENCE GUIDE ....3 Common Tools ..........................3 Common Components ......................4 INSTALLATION INSTRUCTIONS ........6 Determining Height ........................6 Brackets ............................7 Assembling Ladder ........................7 Assembling Lifeline ........................12 OPERATION & MAINTENANCE ........14 Support: +1 877 417 6336 www.skylinegroupintl.com... -
Page 4: Component/Tool Reference Guide
COMPONENT/TOOL REFERENCE GUIDE Common Tools: CORDLESS DRIVER ANGLE GRINDER WRENCH W/ CUTTING WHEEL 7/16” DRILL BIT 5/16” HEX BIT SUITABLE SOCKET SOCKET ADAPTER 11/16” SOCKET 1/2” SOCKET Support: +1 877 417 6336 www.skylinegroupintl.com... -
Page 5: Common Components
COMPONENT/TOOL REFERENCE GUIDE Common Components: D-GRABS TOP CABLE BRACKET BRACKET CABLE LADDER EXTENSION BOTTOM CABLE BRACKET LADDER FOOT Support: +1 877 417 6336 www.skylinegroupintl.com... - Page 6 COMPONENT/TOOL REFERENCE GUIDE Common Components: TOP CABLE BRACKET STEP OFF POST STARTER SECTION PLATFORM CABLE BRACKET LADDER EXTENSION BOTTOM CABLE BRACKET LADDER FOOT Support: +1 877 417 6336 www.skylinegroupintl.com...
-
Page 7: Installation Instructions
INSTALLATION INSTRUCTIONS Determining Height The overall length of ladder would be measured so the topmost rung is flush with top of egress/platform/walking surface. If you have a platform attached at top of ladder the bottom of platform should clear parapet by a minimum of 51mm (2”). Once you are sure of your height, trim ladder extension accordingly. -
Page 8: Brackets
INSTALLATION INSTRUCTIONS Brackets Brackets to be installed flush against wall. Bracket layout to follow closely to shop drawings provided. Ensure every section of ladder has at least one (1) bracket. Ensure that bolted connection from bracket through ladder does not interfere with rungs. - Page 9 INSTALLATION INSTRUCTIONS Lifeline Ladder Insert half of ladder splice into Drill holes in ladder body to align bottom and top halves of ladder with bracket holes. Fasten ladder bodies and attached with four (4) body to brackets using M8- #12-14x20mm tek screws, two (2) 1.25x55mm bolt/nut/washer set,...
- Page 10 INSTALLATION INSTRUCTIONS Lifeline Ladder For ladder down platform, like the one below, follow steps 5, 6, 8, and 9. For step o platform, like the one below, follow steps 7, 8, and 9. Support: +1 877 417 6336 www.skylinegroupintl.com...
- Page 11 INSTALLATION INSTRUCTIONS Lifeline Ladder Use pilot holes on starter section to drill through ladder. Secure platform to starter section using four (4) M10-1.5x100mm bolt/nut/washer sets, torqued to 6 lb-ft. If there is a ladder section required on back side of platform, repeat step 5.
- Page 12 INSTALLATION INSTRUCTIONS Lifeline Ladder Fasten sidemount posts to platform using two (2) M10-1.5x60mm bolt/nut/washer sets, torqued to 6 lb-ft. Install kneerails on inside face of Install handrails on top of posts and posts/starter section. Fasten with sarter section. Fasten with four (4)
-
Page 13: Assembling Lifeline
INSTALLATION INSTRUCTIONS Assembling Lifeline LAD-SAF to be installed as per manufacturers instructions. To be clamped to rung 1, 2, and 4 from top of ladder. Thread cable through top bracket Install top bracket onto the 1st, 2nd, and install cap. 4th rungs, secure with supplied square u-bolts torqued to 20-25ft-lbs. - Page 14 INSTALLATION INSTRUCTIONS Assembling Lifeline Install cable guides at 25’ Install the bottom bracket over intervals (not required if cable is bottom 2 rungs, secure with less than 25’). supplied square u-bolts torqued to 20-25ft-lbs. Attach cable to tensioning rod. Connect cable to bottom bracket and tension.
-
Page 15: Operation & Maintenance
OPERATION & MAINTENANCE Only use system in accordance with applicable codes and regulations. An annual inspection of the system is encouraged to ensure that all fasteners are correctly tightened and the system is performing correctly. Upon request, this can be provided for a fee. - Page 16 Unit 300 – 15300 19896 Hwy 7 Croydon Drive, Perth, ON Surrey, BC Canada K7H 3C9 Canada V3Z 0Z5 (613) 267 4493 (604) 678 1848 MONTREAL 20600 Clark Graham Ave. Baie-D’Urfe, QC Canada H9X 4B6 (514) 275 4934 © 2022 Skyline Group IM-LIFELINELADDER-CA-EN-SLG-0522...
