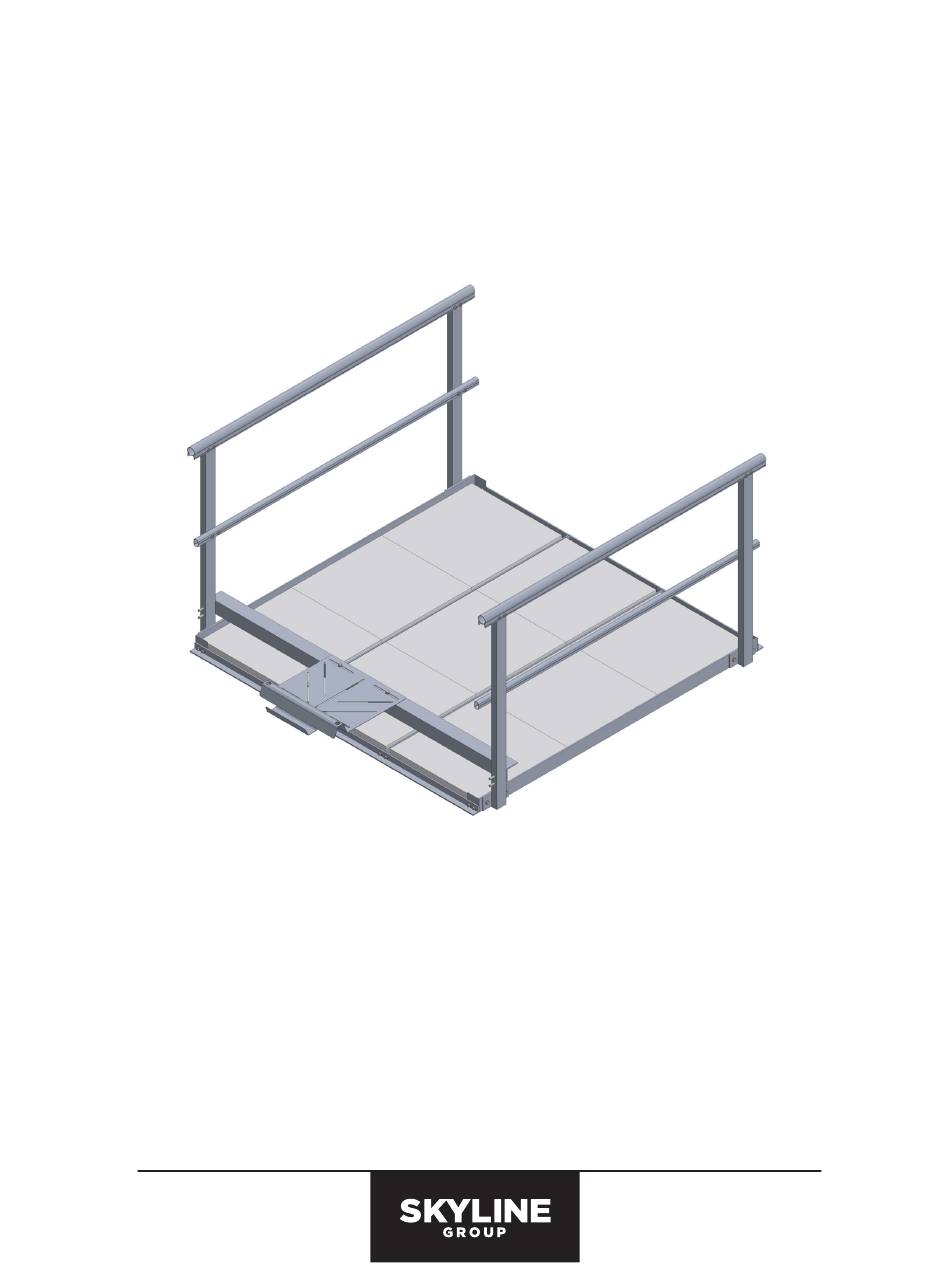

- Page 1 LADDERBARRIER 5020 SERIES INSTALLATION & USER MANUAL Support: +1 877 417 6336 www.skylinegroupintl.com...
- Page 2 WARNING Serious injury or death may result if this product is misused or not installed properly. Skyline Group provides these instructions and relies on the purchaser and the end user to train personnel at all times, and to make sure the user of this product fully understand the importance of following these instructions.
-
Page 3: Table Of Contents
CONTENTS COMPONENT/TOOL REFERENCE GUIDE ....3 Common Tools ..........................3 Common Components ......................4 INSTALLATION INSTRUCTIONS ........5 5020 Series LadderBarrier ....................... 5 OPERATION & MAINTENANCE ........12 Support: +1 877 417 6336 www.skylinegroupintl.com... -
Page 4: Component/Tool Reference Guide
COMPONENT/TOOL REFERENCE GUIDE Quick & Easy to Install The LadderBarrier system comes with many components pre-assembled and is super quick and easy to install while meeting rigorous requirements. Common Tools: 17MM WRENCH CORDLESS DRIVER 7/16” DRILL BIT 5/16” HEX BIT SUITABLE SOCKET SOCKET ADAPTER... -
Page 5: Common Components
COMPONENT/TOOL REFERENCE GUIDE Common Components: POSTS & RAILS PAVER FRAME LADDER SUPPORT BRACKET Support: +1 877 417 6336 www.skylinegroupintl.com... -
Page 6: Installation Instructions
INSTALLATION INSTRUCTIONS 5020 Series LadderBarrier Lay out the base frame sections. Align with front and rear frame sections and bolt with M10x30mm bolts. Bolt side mount posts to base frame using M10x30mm bolts. Support: +1 877 417 6336 www.skylinegroupintl.com... - Page 7 INSTALLATION INSTRUCTIONS 5020 Series LadderBarrier Align front support angle flush with top of parapet and drill holes in posts to match holes in angle. Bolt angle to posts using M10x100mm bolts Support: +1 877 417 6336 www.skylinegroupintl.com...
- Page 8 INSTALLATION INSTRUCTIONS 5020 Series LadderBarrier Bolt ladder support bracket to angle Attached top rails to posts using x4 using M10x30mm bolts 20mm tek screws per post Attach mid rails to posts using x2 Insert end caps and secure with a 48mm tek screws per post.
- Page 9 INSTALLATION INSTRUCTIONS 5020 Series LadderBarrier Insert concrete pavers into frame. *Maximum paver size is 23 5/8” x 23 5/8” Installation Complete. Support: +1 877 417 6336 www.skylinegroupintl.com...
-
Page 10: Operation & Maintenance
An annual inspection of the system is required to ensure that all fasteners are correctly tightened and the system is performing correctly. Skyline Group can provide this for a fee, upon request. Installation instructions to be read in conjunction with the provided drawings. - Page 11 WE MAKE HEIGHT SAFETY COMPLIANCE EASY 19896 Hwy 7, Perth, ON K7H 3C9 www.skylinegroupintl.com +1 877 417 6336...
