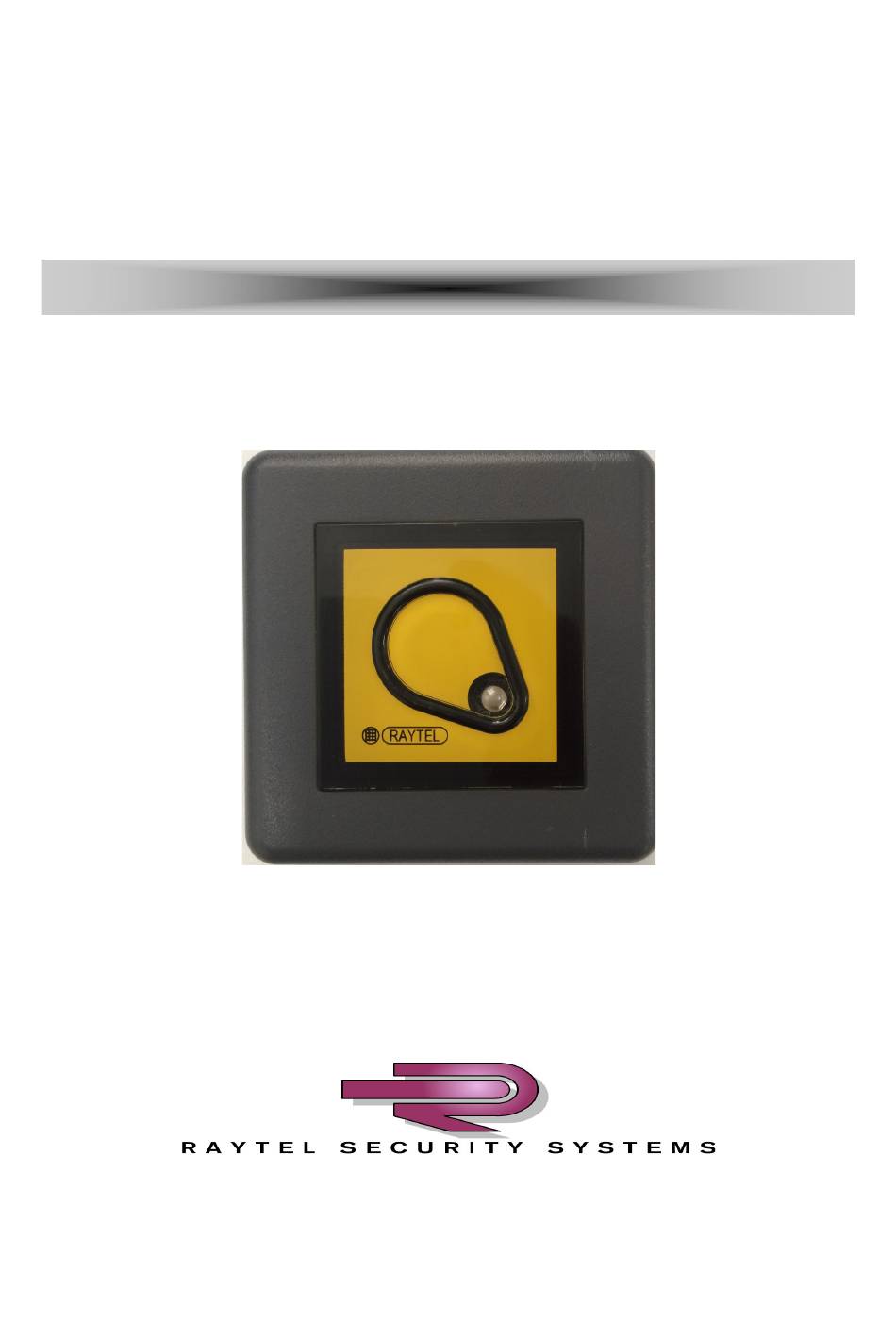

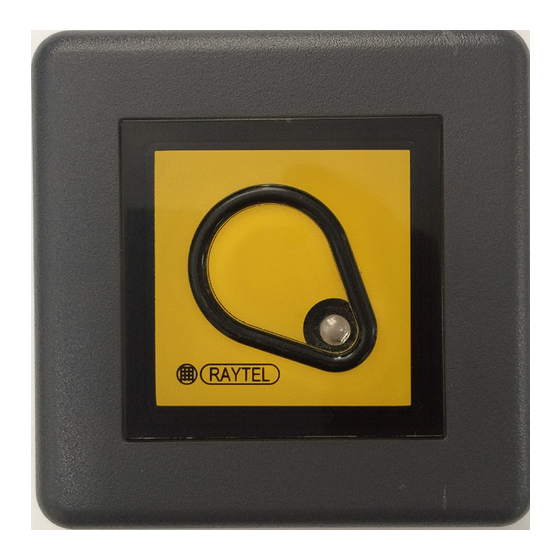

- Page 1 AR-747HS-RAY Dual Band Reader Installation and Configuration Guide AR-747HS-RAY 21st February 2024 Version 1.1 Raytel House, Cutlers Road, South Woodham Ferrers Essex, CM3 5WA Tel: (01245) 428510 Fax: (01245) 428515...
-
Page 2: Table Of Contents
GENERAL INFORMATION Connections and communication options…………………………………………………...Page 3 Reader Overview ....................Page 4 Setting Reader DIP Switches .................. Page 4 Interface Connections .................... Page 5 Setting RS485 Node ID……………………………………… ………………………………Pages 6-7 Default LED and Buzzer settings………….……..…………………………………………… Page 8 AR-747HS-RAY Dual Band Reader... -
Page 3: Connections And Communication Options
RS485 communication OR Wiegand communication dependant on the connections used as shown above. All AR-747HS-RAY Readers have a default RS485 Node ID of 1. see page 6 for information on changing the RS485 Node ID. Readers connected using Wiegand (WG) do not require a Node ID and will function correctly whatever RS485 Node ID is set on the reader. -
Page 4: Reader Overview
Before any AR-747HS-RAY readers are installed, it is recommended that the DIP switch settings on the back of the readers are checked. The default DIP switch settings for the AR-747HS-RAY reader are shown below (This en- sures that in WG mode the correct data (34 bit) is sent to the controller. -
Page 5: Interface Connections
INTERFACE CONNECTIONS WG Data Connection RS485 Data Connection AR-747HS-RAY Dual Band Reader... -
Page 6: Setting Rs485 Node Id
PC and a AR-321CM interface connected directly to the reader via a usb port. See below for reader connections. See page 7 for the use of the Node 737 software. +12V 0V To usb port on PC or Laptop AR-747HS-RAY Dual Band Reader... - Page 7 Set On Green LED to “Yes or No” dependant on requirement (Default OFF) Set Door Release Time if required (for local operation only) Click Write, then repeat from step 1 until all readers are programmed Click “Exit” AR-747HS-RAY Dual Band Reader...
-
Page 8: Default Led And Buzzer Settings
WG has no buzzer input to control) Set the dip switches on the reader to the defaults shown above: Dip switch 1 ON Dip Switch 2 OFF This will ensure consistent operation with RS485 or WG communication. AR-747HS-RAY Dual Band Reader...
