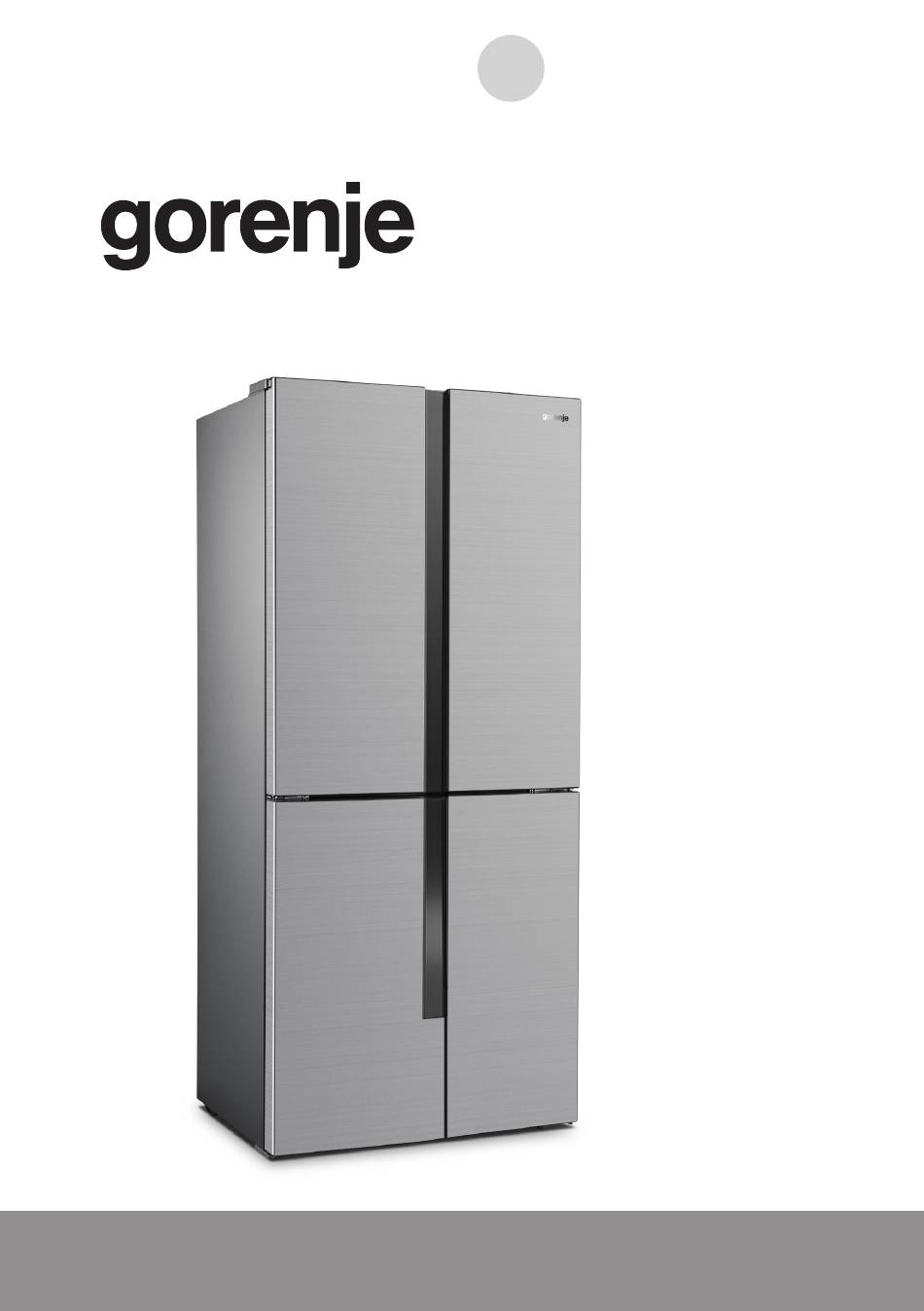

Page 1
DETAILED INSTRUCTIONS FOR USE OF UPRIGHT REFRIGERATOR AND FREEZER www.gorenje.com www.gorenje.com...
Page 2
Please visit our website where you can enter your appliance model number, indicated on the rating plate or the warranty sheet, to find detailed description of your appliance, tips on use, troubleshooting, service information, instructions for use etc. http://www.gorenje.com Important safety warning...
CONTENTS INTRODUCTION 4 IMPORTANT NOTES AND PRECAUTIONS 4 SAFETY AND WARNING INFORMATION APPLIANCE 11 INSTALLING YOUR NEW APPLIANCE DESCRIPTION 13 APPLIANCE DESCRIPTION 14 OPERATING THE APPLIANCE 17 USING YOUR APPLIANCE 22 HELPFUL HINTS AND TIPS DEFROSTING AND CLEANING 23 CLEANING AND CARE THE APPLIANCE MISCELLANEOUS 25 TROUBLESHOOTING...
IMPORTANT NOTES AND PRECAUTIONS SAFETY AND WARNING INFORMATION For your safety and correct usage, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to make sure that all people using the appliance are thoroughly familiar with its operation and safety features.
Page 5
According to IEC standard This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. •...
Page 6
• WARNING — Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance. • WARNING — If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. •...
Page 7
flammable. During transportation and installation of the appliance, ensure that none of the components of the refrigerant circuit becomes damaged. The refrigerant (R600a) is flammable. • WARNING — Refrigerators contain refrigerant andgases in the insulation. Refrigerant and gases must be disposed of professionally as they may cause eye injuries or ignition.
Page 8
• You must not operate the appliance without the interior lighting lamp cover. • The fridge is only applied with power supply of single phase alternating current of 220~240V/50Hz. If fluctuation of voltage in the district of user is so large that the voltage exceeds the above scope, for safety sake, be sure to apply A.C.
Page 9
• Keep buring candles,lamps and other items with naked flames away from the appliance so that do not set the appliance on fire. • The appliance is intended for keeping food stuff and/ or beverages in normal household as explained in this instruction booklet The appliance is heavy.Care should be taken when moving it.
Page 10
Installation Important! • For electrical connection carefully, follow the instructions given in this manual. • Unpack the appliance and check if there are damages on it. Do not connect the appliance if it is damaged. Report possible damages immediately to the place you bought it.
INSTALLING YOUR NEW APPLIANCE • Before using the appliance for the first time, you should review the following tips. Ventilation of appliance In order to improve efficiency of the cooling system and save energy, it is necessary to maintain good ventilation around the appliance for the dissipation of heat.
Page 12
• Stand you appliance in a dry place to avoid damage moisure. • Keep the appliance out of direct sunlight, rain or frost. Stand the appliance away from heat sources such as stoves, fires or heaters. Leveling of appliance • For sufficient leveling and air circulating in the lower rear section of the appliance, the bottom feet may need to be adjusted, You can adjust them by your fingers or a suitable spanner.
OPERATING THE APPLIANCE Use your appliance according to the following control regulations, your appliance has the corresponding functions and modes as the control panels showed in the pictures below. When the appliance is powered on for the first time, the backlighting of the icons on display panel will be illuminated for 3 seconds, then the display panel starts working.
Page 15
1. Freezer Press the middle part of button A ( ) to set the freezer temperature between -16°C and -24°C to suit your desired temperature, and the freezer temperature indicator will display corresponding value according to the following sequence. °C 18°C °C °C...
Page 16
4.Super Cool Super Cool can refrigerate the food quicker and, keep food fresh for a longer period. • Press the middle part of D ( ) button for 3 seconds to activate this function. The light F ( ) will be illuminated and the fridge temperature indicator will display 2°C.
USING YOUR APPLIANCE Your appliance has the accessories as the »Description of the appliance” showed in general, with this part instruction you can have the right way to use them. Door rack It is suitable for the storage of eggs, canned liquid, bottled drinks and packed food, etc.
Page 18
Crisper cover • It is for avoiding the vegetable losing moisture. You can adjust the humidity inside the crispers by using the sliding block. Crisper and humidity control • The humidity control adjust the airflow in the crisper; higher airflow results in lower humidity.
Page 19
Using your freezer drawer The freezer drawers are suitable for storage of foods required to be frozen, such as meat, ice cream and others. Caution! Ensure that bottles are not stored in the freezer as freezing may cause the bottle to break. Using the refrigerator chamber The refrigerator chamber is suitable for storage of vegetable and fruits.
Page 20
To avoid contamination of food, please respect the following instructions • Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance. • Clean regularly surfaces that can come in contact with food and accessible drainage systems.
Page 21
–6 ≤ 0 0 star Fresh pork, beef, fish, chicken, some packaged processed foods, etc. (Recommended to eat within the same day, preferably not later than 3 days) . Partially packed/wrapped up encapsulated processed foods (non-freezable foods) Chill –2 ≤ +3 Fresh/frozen pork, beef, chicken, freshwater aquatic products, etc.
HELPFUL HINTS AND TIPS Energy saving tips We recommend that you follow the tips below to save energy. • Try to avoid keeping the door open for long periods. • Ensure the appliance is away from any sources of heat (Direct sunlight, electric oven or cooker etc.) •...
CLEANING AND CARE For hygienic reasons the appliance (including exterior and interior accessories) should be cleaned regularly (at least every two months). Warning! The appliance must not be connected to the mains during cleaning. Danger of electrical shock! Before cleaning switch the appliance off and remove the plug from the mains socket.
Page 24
Warning! Do not use sharp objects to remove frost from the freezer compartment. Only after the interior is completely dry should the appliance be switched back on and plugged back into the mains socket. Door seals cleaning Take care to keep door seals clean. Sticky food and drinks can cause seals to stick to the cabinet and tear when you open the door.
TROUBLESHOOTING If you experience a problem with your appliance or are concerned that the appliance is not functioning correctly, you can carry out some easy checks before calling for service, please see below. You can carry out some easy checks according to this section before calling for service. Warning! Don't try to repair the appliance yourself.
Page 26
Problem: Possible cause & Solution It is normal to frequently hear the sound of the motor, it will need to run more during following circumstances: • Temperature setting is set colder than necessary. The motor runs • Large quantity of warm food has recently been continuously stored within the appliance.
