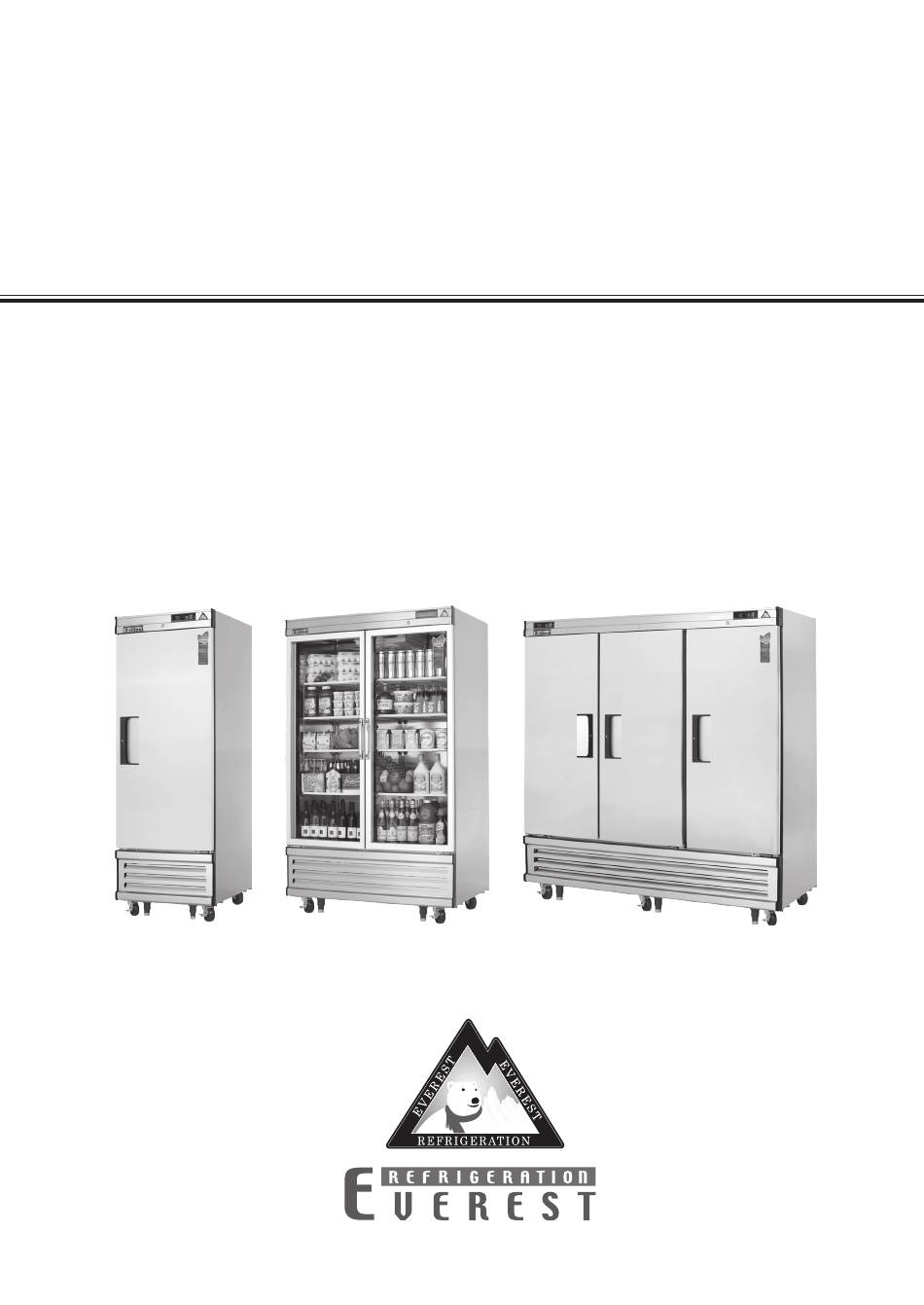

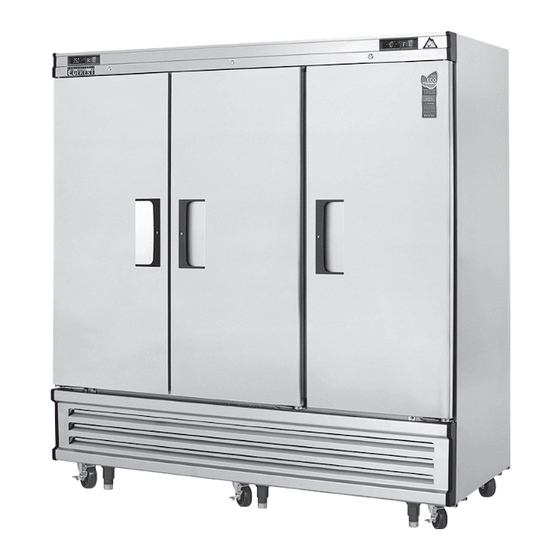

- Page 1 Upright Reach-Ins Bottom Mounted Condensing Unit Owner’s Manual EBR1, EBWR1, EBWRH2, EBNR2, EBSR2, EBR2, EBR3, EBR1D, EBNR2D, EBR2D, EBF1, EBWF1, EBWFH2, EBNF2, EBSF2, EBF2, EBF3, EBF1D, EBF2D, EBWRFH2, EBSRF2, EBRF2, EBRF2D, EBRF3, EBGR1, EBGNR2, EBGR2...
- Page 2 this page intentionally left blank...
-
Page 3: Table Of Contents
Upright Reach-Ins Bottom Mounted Condensing Unit EBR1, EBWR1, EBWRH2, EBNR2, EBSR2, EBR2, EBR3, EBR1D, EBNR2D, EBR2D, EBF1, EBWF1, EBWFH2, EBNF2, EBSF2, EBF2, EBF3, EBF1D, EBF2D, EBWRFH2, EBSRF2, EBRF2, EBRF2D, EBRF3, EBGR1, EBGNR2, EBGR2 Contents 1, 2 Hydrocarbon Guidelines ......3, 5 Installation Instructions ........ -
Page 4: Hydrocarbon Guidelines
Hydrocarbon Guidelines This section applies to R290 Hydrocarbon units only. To identify the refrigerant type, see the data plate in the cabinet interior. WARNING - THIS UNIT USES R290, A HYDROCARBON, PROPANE REFRIGERANT THAT IS ENVIRONMENTALLY FRIENDLY BUT IS ALSO HIGHLY FLAMMABLE AND EXPLOSIVE. PLEASE READ THIS MANUAL CAREFULLY AND FOLLOW ALL SAFETY PRECAUTIONS CONTAINED HEREIN TO AVOID THE RISK OF FIRE OR EXPLOSION. - Page 5 PROPANE (R290) IS HIGHLY APPROVED FOR USE AS A REFRIGERANT IN COMMERCIAL, SELF-CONTAINED UNITS IN THE US UNDER LIMITED USE CONDITIONS. IT CAN ONLY BE USED IN NEW EQUIPMENT. BACKFITTING OR MODIFICATIONS OF OLD EQUIPMENT ARE NOT ALLOWED. IT MUST BE CHARGED IN A STRICTLY LIMITED VOLUME OF UP TO 150 GRAMS (5.3 OZ) PER REFRIGERATION CIRCUIT.
-
Page 6: Installation Instructions
Installation Instructions This section applies to all Everest products. Correct installation ensures proper performance and longevity of your appliance. Professional installation by a trained refrigeration technician and electrician is recommended. Warranty is void if the following guidelines are not met. 1. - Page 7 Shelf Installation 1. Attach the shelf clips onto the pilasters by inserting its top hook into a pilaster notch followed by the bottom hook. Do not use pliers or other crimping tools to modify the shape of the shelf clips. This will result in shelf mounting instability.
- Page 8 Product Load Level & Shelf Placement Product Load Level for EB Solid Door Load Level 12" Load Level 12" Airflow Guard Load Level 12" Shelf Front Rear Load Level 12" Air Vent Air Flow Front Rear Side View Installation Instructions...
-
Page 9: General Safety
• If you suspect a refrigerant leak or a compromised refrigeration system, disconnect the unit, and contact Everest Refrigeration immediately. • When disposing the unit, remove all doors and shelves to avoid any risk of injury or entrapment. -
Page 10: Electrical Safety
Electrical Safety This section applies to all Everest products. Basic safety precautions must be observed when using electrical appliances in addition to the following. Warranty is void if these guidelines are not met. Everest units come as 115 volts, 60 hertz, Do not use extension cords, adapter plugs or single phase. -
Page 11: Operation
Operation This section applies to all Everest products. Use according to the described and intended functions. Warranty is void if these guidelines are not met. Starting your Everest Product After plugging in the unit, the current temperature and compressor symbol will appear on the digital temperature control’s LED display. - Page 12 Carel ‘Easy’ Digital Temperature Control Everest units are equipped with a Carel Digital Temperature Control. The type of controller is dependent on the model and production date. Evaporator Fan Running Compressor Running Alarm in Progress Power / Up Button Temperature Set Button Cabinet Temperature Manual Defrost / Down Button...
- Page 13 Setting the Temperature ( continued ) 2. Toggle through the desired temperature by pressing UP or DOWN The number increases or decreases by a decimal point. 3. The recommended setting is 35.0°F (2.0°C) for refrigerators and -4.0°F (-20.0°C) for freezers. The available temperature setting range is 33.0°F to 54.0°F (1.0°C to 12.0°C) for Refrigerators and -10.0°F to 54.0°F (-23.0°C to 12.0°C) for Freezers.
- Page 14 Carel ‘ir33’ Digital Temperature Control Everest units are equipped with a Carel Digital Temperature Control. The type of controller is dependent on the model and production date Evaporator Fan Running Program Button Compressor Running Up Button / Alarm in Progress Auxiliary Cabinet in Defrost Down Button /...
- Page 15 Initiating Manual Defrost The controller has an automatic defrost cycle in place so initiating manual defrost is not necessary unless there is an abnormal accumulation of ice around the evaporator coil. 1. Press and hold down the Manual Defrost Button until the Defrost Symbol appears on the LED display.
-
Page 16: Care And Maintenance
Care and Maintenance This section applies to all Everest products. Regular care and maintenance of your appliance will significantly extend service life and dependability. In severe cases, lack of upkeep will contribute to the rapid decline in performance and component health. Care and maintenance is the product owner’s personal responsibility. - Page 17 Condenser Coil Cleaning Instructions * R404A freezer models are equipped with a condenser coil air filter. R290 refrigerator models are not equipped with a condenser coil air filter. If your product is an R290 refrigerator model, you may skip this section. This section applies to all Everest products.
-
Page 18: Door Reversal Instructions
Door Reversal Instructions Some products have field reversible doors to accommodate specific kitchen layouts. Door reversals must be performed by qualified technicians. A second person is required. Safety goggles must be worn to protect from spinning parts. Warranty is void if the following guidelines are not met. - Page 19 Door Reversal Instructions (Continued) 5. Extra precaution must be taken for the following steps. Release the door tension from the door spring by inserting a sharp pointed implement into one of the door hinge shaft’s unoccupied C- 2 tension lock screws 6.
-
Page 20: Troubleshooting Guide
Troubleshooting Guide In most cases, your Everest product may be exhibiting behavior that is typical of standard operation. Observe the following when troubleshooting symptoms. ‘cht’ or ‘CHt’ appears on the LED alternating The compressor operates continuously or for with the current temperature and accompanied prolonged periods. - Page 21 The cabinet temperature is too warm. Condensation in the interior cabinet. The condenser coil may be clogged with dust, The door or door gasket may not be sealing grime or debris. Clean it following the instructions properly. Check product placement in the cabinet on page 14.
- Page 22 Warranty Registration Registering your new appliance is important. In the unlikely event a safety notification or warranty service is required, we will have the means to contact you. Your completed appliance registration also verifies your ownership in the event of an insurance loss or theft. You may register online at www.EVERESTref.com or use your smart phone to scan the QR code below: 1.
- Page 23 Warranty Certificate YEAR YEAR YEAR PARTS & LABOR ELECTRICAL COMPRESSOR...
- Page 24 A Step Above The Standard 201 W. Artesia Blvd., Compton, CA 90220 Tel: 800-444-6285 / 310-323-6586 Fax: 310-323-7524 / 310-761-1127 www.EVERESTref.com v101722...
