This unit is a pump that will clear the waste from a toilet, domestic shower and washbasin.
The unit is gravity fed from a toilet, shower and wash basin. It has a built-in pressure switch which detects the incoming
waste and starts the pump automatically.
Water temperature should be a minimum of 1°C and it is important that the unit does not freeze. Maximum water tempera-
ture is 45°C.
Electrics: The unit must be installed to comply with current UK electrical regulations, with a fused spur rated at 3 amps. We
advise that this is done by a qualified professional installer.
This appliance must be earthed. If the supply cord is damaged, it must be replaced by a qualified person. The cable type is
H05VV-F, 3G0.75mm2 VDE. The IP rating of this appliance is IP54.

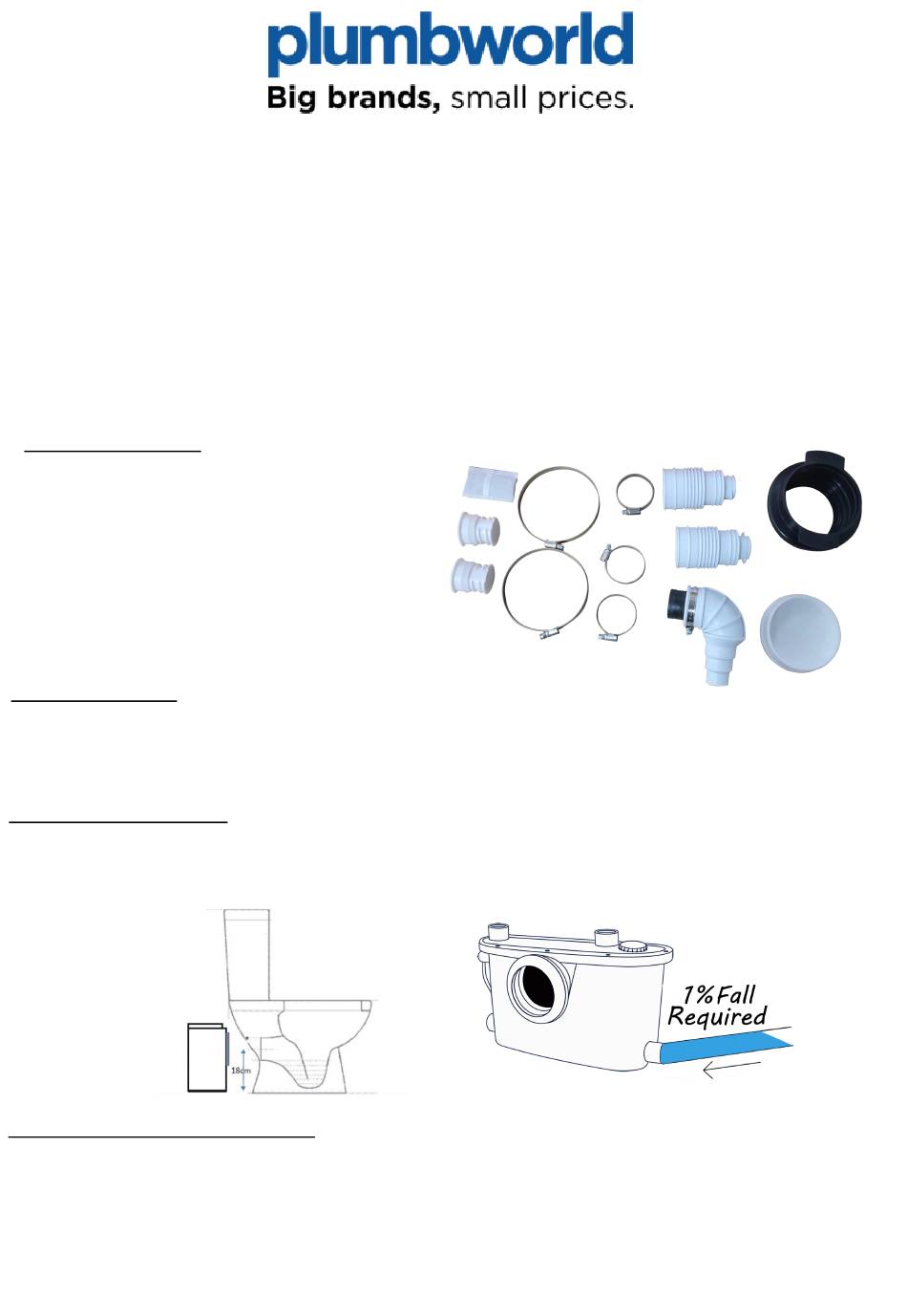

List of items included
1 x Black toilet connector
1 x Outlet connector (curved) complete with check valve
2 x Jubilee clips/bigger
3 x Jubilee clips/smaller
1 x Charcoal bag
1 x Inlet blocking cap/toilet
2 x Inlet blocking cap
2 x Inlet connectors
Connecting to inlets
Use the rubber connectors to connect pipes to the toilet, one or both of the side inlets and secure with jubilee clips. If only
using one in-let, close off the second with the blocking cover cap. The rubber connector end should be cut to the required
size to allow the liquid to pass into the lifting station unit.
Connecting to toilet waste
The toilet should be with the standard horizontal outlet, with EU standard 18cm to the outlet center from the floor. The toilet
must also have a flushing tank or tap. Place this horizontal toilet outlet into the macerator, and clamp the rubber sleeve of the
macerator around the pipe using the supplied jubilee clip.
Connecting to shower or basin waste
Connect pipework to the lifting station at one end as above 'connecting to inlets' and then connect to the shower waste
at the other end. Ensure that the shower waste exit is 85mm above the level of the lifting station inlet to ensure a gradient
for the water to flow down to the unit. The gradient should be at least 1% (1cm per metre).
Connect pipework to the lifting station at one end as above 'connection to inlets' and then connect to the basin waste
at the other end. The gradient should be at least 1% (1cm per metre).
