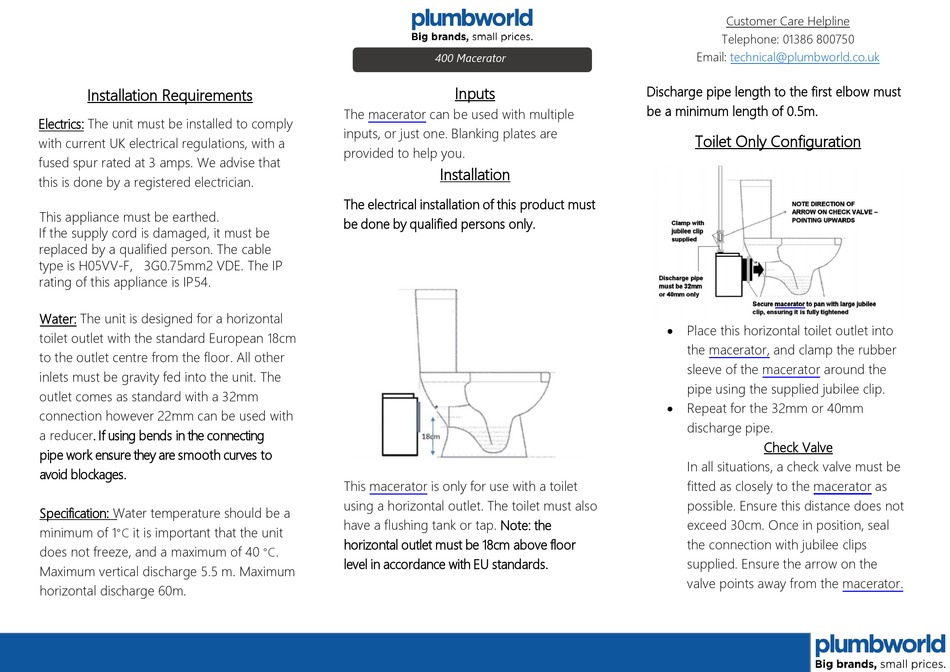

Installation Requirements
Electrics: The unit must be installed to comply
with current UK electrical regulations, with a
fused spur rated at 3 amps. We advise that
this is done by a registered electrician.
This appliance must be earthed.
If the supply cord is damaged, it must be
replaced by a qualified person. The cable
type is H05VV-F, 3G0.75mm2 VDE. The IP
rating of this appliance is IP54.
Water: The unit is designed for a horizontal
toilet outlet with the standard European 18cm
to the outlet centre from the floor. All other
inlets must be gravity fed into the unit. The
outlet comes as standard with a 32mm
connection however 22mm can be used with
a reducer. If using bends in the connecting
pipe work ensure they are smooth curves to
avoid blockages.
Specification: Water temperature should be a
minimum of 1
it is important that the unit
°C
does not freeze, and a maximum of 40
Maximum vertical discharge 5.5 m. Maximum
horizontal discharge 60m.

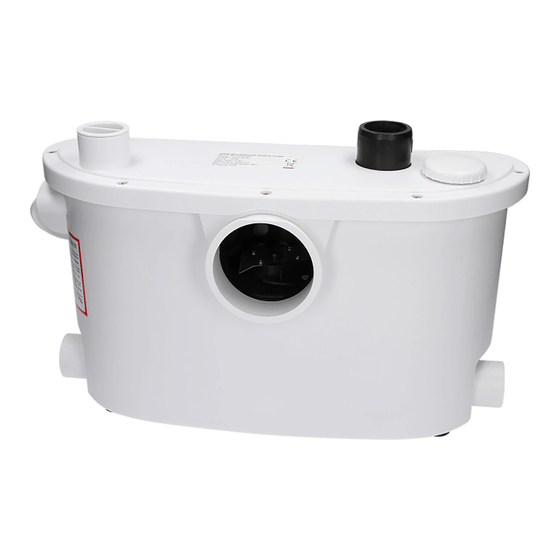

400 Macerator
The macerator can be used with multiple
inputs, or just one. Blanking plates are
provided to help you.
Installation
The electrical installation of this product must
be done by qualified persons only.
This macerator is only for use with a toilet
using a horizontal outlet. The toilet must also
have a flushing tank or tap. Note: the
horizontal outlet must be 18cm above floor
.
°C
level in accordance with EU standards.
Inputs
Customer Care Helpline
Telephone: 01386 800750
Email:
technical@plumbworld.co.uk
Discharge pipe length to the first elbow must
be a minimum length of 0.5m.
Toilet Only Configuration
Place this horizontal toilet outlet into
the macerator, and clamp the rubber
sleeve of the macerator around the
pipe using the supplied jubilee clip.
Repeat for the 32mm or 40mm
discharge pipe.
Check Valve
In all situations, a check valve must be
fitted as closely to the macerator as
possible. Ensure this distance does not
exceed 30cm. Once in position, seal
the connection with jubilee clips
supplied. Ensure the arrow on the
valve points away from the macerator.
