Summary of Contents for VESTEL UNB Series
- Page 1 VIDEO WALL INSTALLATION GUIDE...
- Page 2 VIDEO WALL PACKAGE 1- VIDEO WALL PANEL...

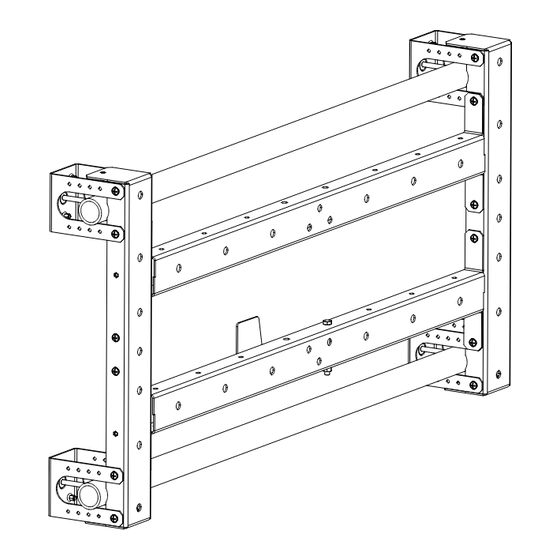

- Page 3 VIDEO WALL PACKAGE 2- WALL MOUNTS...
- Page 4 VIDEO WALL PACKAGE 2-.1 ==>UNIT A Will be installed to 2.2 ==>UNIT B Will be installed on to the the back side of the video wall panels wall or metal construction Wall Mount UNIT-A Wall Mount UNIT-B...
- Page 5 INSTALLATION of UNIT A and UNIT B Mounting UNIT-A Wall mount Unit A should be installed back side of the video wall panel with 4 M8 screws as shown in the figure below...
- Page 6 Mounting UNIT-A...
- Page 7 Mounting, Unit B Unit - B should be mounted to on a wall or metal construction as shown in the figure below. RECOMMENDED SCREW HOLES...
- Page 8 Unit A Unit B PANEL+ MOUNTING PANEL+UNIT-A TO UNIT-B...
- Page 9 Unit A Unit B PANEL+...
- Page 10 VIDEO WALL SAMPLE INSTALLATION (3X3)
- Page 11 SAMPLE INSTALLATION (3X3) STEP 1-ALL WALL MOUNT UNITS SHOULD BE MOUNTED ON WALL OR METAL CONSTRUCTION AS SHOWN IN FIGURE BELOW WALL MOUNT UNIT-B WALL MOUNT UNIT-B WALL MOUNT UNIT-B WALL MOUNT UNIT-B WALL MOUNT UNIT-B WALL MOUNT UNIT-B WALL MOUNT UNIT-B WALL MOUNT UNIT-B WALL MOUNT UNIT-B HORIZONTAL DIMENSION...
- Page 12 3x3 Video Wall Montajı 1. Uygulama PANEL KABLO BAĞLANTISININ YAPILMASI 1. UYGULAMA DP GÖRÜNTÜ AKTARMA KABLO UYGULAMASI. KABLO BAĞLANTILARI AŞAĞIDA VERİLEN ŞEMAYA UYGUN OLARAK YAPILMALIDIR. ile GÖRÜNTÜ GİRİŞİ VE HER PANELE ÖZEL OLARAK DAĞILMASI, GÖSTERİMİ.
- Page 13 KABLO BAĞLANTILARI AŞAĞIDA VERİLEN ŞEMAYA UYGUN OLARAK YAPILMALIDIR. SIGNAGE ID : 1 Daisy Chain RS232 kablolaması ve kumanda alıcı gözü.
- Page 14 PANEL CABLES SETTINGS POWER CABLE SETTINGS; FROM POWER BOX TO UNIT. 220 V power cables 220 V AC HDMI OUT REMOTE CONTROL CABLE SOCKET. SAMPLE INSTALLATION (3X3) POWER CABLE SOCKET...
- Page 15 PANEL CABLE SOCKETS HDMI OUT REMOTE CONTROL CABLE SOCKET. POWER CABLE SOCKET...
- Page 16 Step-3 Mount the Panels 1.PANEL 2.PANEL 3.PANEL Mounting of panels must be started from top.
- Page 17 After mounting , panels should be set to maintenance mode.
- Page 18 AFTER MOUNTING THE TOP LINE , ALL THE PANELS OF THE TOP LINE SHOULD BE SET TO MAINTENANCE MODE . MAINTANENCE MODE. TOP LINE MIDDLE LINE BOTTOM LINE SAMPLE INSTALLATION (3X3)
- Page 19 STEP -4 MECHANICAL ADJUSTING OF THE SYSTEM SAMPLE INSTALLATION (3X3) HOW TO ADJUST THE PANEL'S DEPTH, HORIZONTAL AND VERTICAL SEETING'S ARE EXPLAINED IN NEXT PAGE...
- Page 20 DEPTH, SETTING. VERTICAL, SETTING HORIZONTAL, SETTING.
- Page 21 SAMPLE INSTALLATION (3X3) REFERENCE PANEL 90-DEGREES PARALLEL GROUND LAYER. 1) ADJUST THE REFERENCE PANEL PARALLEL TO THE GROUND. 2) THE BOTTOM LINE'S HORIZONTAL, DEPTH , VERTICAL POSITION SHOULD BE ADJUSTED ACCORDING TO THE REFERENCE PANEL. 3) THE RIGHT VERTICAL LINE'S HORIZONTAL, VERTICAL, DEPTH POSITION SHOULD BE ADJUSTED ACCORDING TO THE REFERENCE PANEL.
-
Page 22: Software Adjustment
SOFTWARE ADJUSTMENT... -
Page 23: Enter Menu
SOFTWARE ADJUSTMENT 3X3 VIDEO WALL SOFTWARE ADJUSTMENT > ENTER MENU. MENU > SETTINGS > OTHER SETTINGS > VIDEO WALL SETTINGS > ROW COUNT :3 (IF THERE ARE 3 ROW ) > COLUMN COUNT :3 (IF THERE ARE 3 COLUMN ) >... -
Page 24: Maintenance
MAINTENANCE... - Page 25 MAINTENANCE REMOVING SPECIFIED SCREEN FROM THE SYSTEM 2.PANEL 1.PANEL 3.PANEL 4.PANEL 6.PANEL SPECIFIED SCREEN FOR REMOVE. 5.PANEL IF PANEL 5 REMOVED FROM THE SYSTEM FOLLOW THE STEPS BELOW. STEP 1 : 3. AND 6. PANEL MOVE TO RIGHT. STEP 2 : 1. AND 4.PANEL MOVE TO LEFT. STEP 3 : 2.
- Page 26 MAINTENANCE...
