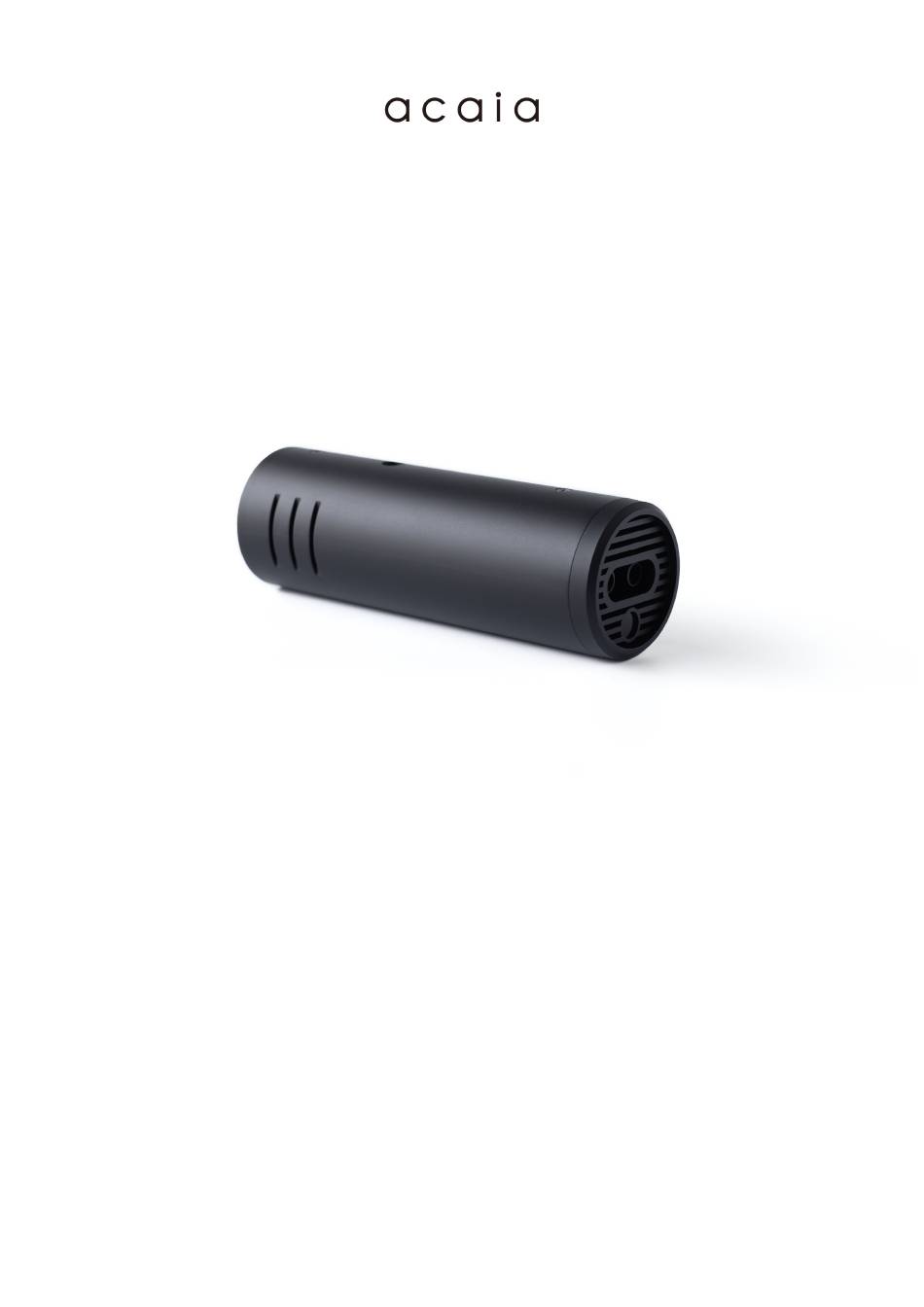

- Page 1 Acaia Ion Beam User Manual AIM101 / AIM102 / AIM103 FW 1.0.0...
-
Page 2: Table Of Contents
7 Product Care Information 7 Battery Charge 8 Product Cleaning 10 Setting Up the Acaia Ion Beam 10 Using Acaia Ion Beam for the Orbit 11 Using Acaia Ion Beam with a Tripod 12 Operation Instructions 12 Power On / Off... -
Page 3: Introduction
It neutralizes the static electricity that causes coffee grounds to cling together. This reduces the retention of grounds and minimizing flying chaff and clumps. With the Acaia Ion Beam, you can expect a better coffee grinding experience. Less mess and more consistency. -
Page 4: In The Box
In The Box ________________________________________________________________________________ Thank you for choosing one of our products. First, check the package to find the following: USB Type-C Acaia Ion Beam L-Shaped Mount Charging Cable Spacer x 2 1/4-20x12 Thumb Screw M3x12 mm Screw Cleaning Brush... -
Page 5: Ion Beam Overview
Ion Beam Overview... -
Page 6: Safety Information
! Do NOT direct the Ion Beam and its light directly towards human eyes. ! Do NOT immerse the Ion Beam in liquids or allow liquids to enter the unit. Use a soft, clean with warm water only to clean the product. -
Page 7: Product Care Information
• A DC car-charger with an output of 5 volts and 1 amp • When plugging in the Ion Beam for charging, it will automatically turn off. A red charging indicator will be displayed during the charging process. It is possible to use the Ion Beam when it is being charged. -
Page 8: Product Cleaning
Product Cleaning To clean the Ion Beam, follow the steps below: Ensure that the Ion Beam is powered Gently turn to remove the front cover off and unplugged to prevent any of the Ion Beam. electrical hazards. Use the provided cleaning brush to After cleaning, examine the sensor gently remove dust or coffee grounds... - Page 9 Note: • The Acaia Ion Beam is equipped with charging protection to prevent the battery from charging under high temperatures. • Be cautious not to apply excessive force or use sharp objects during the cleaning process, as this may cause damage to the sensor or its components.
-
Page 10: Setting Up The Acaia Ion Beam
Setting up the Acaia Ion Beam ______________________________________________________________________________ Using Acaia Ion Beam with the Orbit To install the Ion Beam on the Orbit, Remove the M3x8 mm screw on the you will need: L-Shaped mount x 1, left side of the motor housing of the Spacer x 2, 1/4-20x12 Thumb Screw x 1, Orbit. -
Page 11: Using Acaia Ion Beam With A Tripod
Using Acaia Ion Beam with a Tripod Insert the tripod screw thread into the Rotate the tripod clockwise until it designated tripod socket on the Ion Beam. securely attaches to the Ion Beam. A standard 1/4- inch tripod socket ensures... -
Page 12: Operation Instructions
2. Click again to turn on the spotlight and enter the Continuous mode. 3. To turn off the Ion Beam, click the switch at the bottom again. Note: When the Ion Beam’s battery is low, the status light will flash for five times as a warning before turning off. Modes •... -
Page 13: Usage
1 - 5 cm range. Reset to Default With the Ion Beam powered off, press and hold the switch for 10 seconds until the indicator flashes, release the switch to reset all settings to default. Firmware Update To enter the Update Mode, follow the steps below: 1. -
Page 14: Specifications
Lithium-ion rechargeable 3.7 V 780 mAh Battery Life 8 hours Material Connectivity Bluetooth 5.0 US / EU: 2 Years Warranty Other: 1 Year Acaia Ion Beam x 1 L-Shaped Mount x 1 Inside the Package USB Type-C Cable x 1 Cleaning Brush x 1... - Page 15 This user manual is protected by copyright. All rights reserved. No part of this manual may be reproduced, processed, duplicated or published in any form by photocopying, microfilming, reprinting or any other method, in particular electronic means, without the written consent of Acaia. © Acaia, California, 2024.
