Osaka TE 32 User Manual

TE 32
DIGITAL ELECTRONIC
MICROPROCESSOR
User Manual
Cod.: 21/11 - ISTR_M_TE 32_E_02_--
Osaka Solutions S.L
TEL.: +34 934 351 495
web: http:\\www.osakasolutions.com
e-mail: comercial1@osakasolutions.es
PREFACE
a
This manual contains the information necessary for the
product to be installed correctly and also instructions for
its maintenance and use; we therefore recommend that
the utmost attention is paid to the following instructions
and to save it.
This document is the exclusive property of Osaka Solutions .
which forbids any reproduction and divulgation, even partially,
of the document, unless expressly authorized.
Osaka Solutions . reserves the right to make any formal or func-
tional changes at any moment and without any notice.
Osaka Solutions . and its legal representatives do not assume
any responsibility for any damage to people, things or animals
deriving from violation, wrong or improper use or in any case
not in compliance with the instrument features.
a
Whenever a failure or a malfunction of the device may cause
dangerous situations for persons, thing or animals, please
remember that the plant has to be equipped with additional
devices which will guarantee safety.
TIMER
Osaka Solutions S.L - TE 32- OPERATING INSTRUCTIONS - PAG. 1
Index
1. Instrument description ....................................................... 1
1.1 General description .............................................................................. 1
1.2 Front panel description ....................................................................... 2
2. Programming ....................................................................... 2
2.1 Fast Set Times programming ............................................................ 2
2.2 Standard mode parameters setting ................................................ 2
2.3 Parameter protection using a password ....................................... 3
2.4 Customized mode parameter programming
(parameters programming level) ........................................................3
2.5 Reset parameters to default value .................................................. 3
2.6 Keyboard lock function ........................................................................ 3
3. Usage warnings ................................................................... 3
3.1 Allowed Usage ....................................................................................... 3
4. Installation warnings .......................................................... 4
4.1 Mechanical Mounting .......................................................................... 4
4.2 Mechanical Dimensions [mm] ........................................................... 4
4.2.1 Instrument dimensions ...................................................................................................... 4
4.2.2 Panel cutout .............................................................................................................................. 4
4.2.3 Mounting brackets ................................................................................................................ 4
4.3 Electrical connections .......................................................................... 4
4.3.1 Electrical connection diagram ....................................................................................... 4
5. Operating mode ................................................................... 5
5.1 Display operation .................................................................................. 5
5.2 Operation of the Counting commands ........................................... 5
5.3 Out1 Operating mode .......................................................................... 6
5.4 Out2 Operating mode .......................................................................... 6
5.5 Internal buzzer operation ................................................................... 9
5.6 Operation in case of power supply failure (backup) .................... 9
6. Accessories .......................................................................... 9
6.1 Parameters configuration with A01 ................................................ 9
6.2 Parameters configuration with AFC1 .......................................... 10
7. Programmable parameters table ..................................... 11
8. Problems and maintenance .............................................. 12
8.1 Cleaning ................................................................................................ 12
8.2 Disposal ................................................................................................ 12
9. Warranty and repairs ........................................................ 12
10. Technical data .................................................................... 12
10.1 Electrical data ...................................................................................... 12
10.2 Mechanical characteristics .............................................................. 12
10.3 Functional features ........................................................................... 12
11. How to order ...................................................................... 13
1. INSTRUMENT DESCRIPTION
1.1 General description

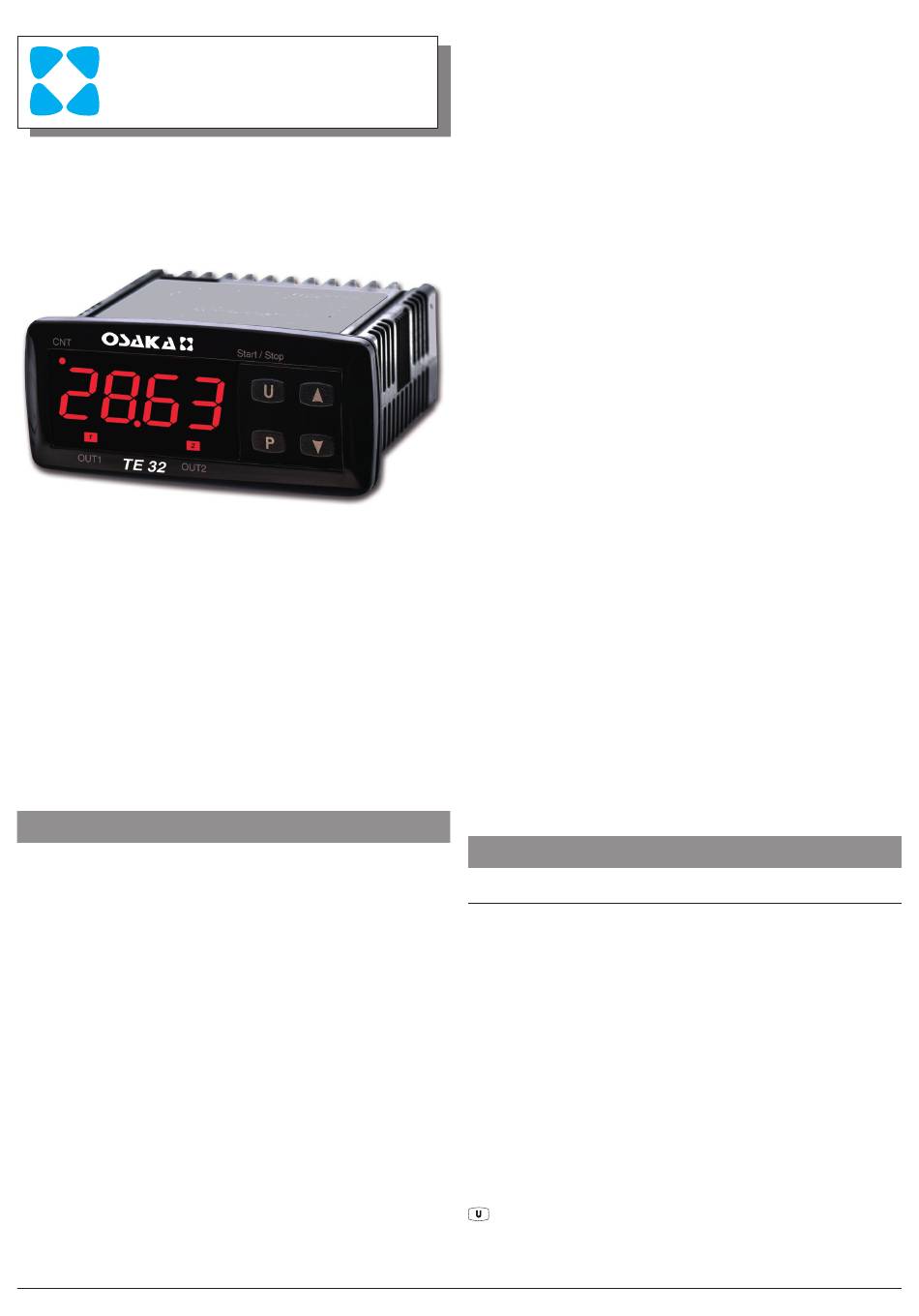

TE 32 is a digital microprocessor timer, it offers the possibility to
program: up to 3 delay times (or Set Times), 6 operating modes
for Out1 output, 10 operating modes for Out2 output, 4 time
scales (allowing timings from 9999 hours max. to 0.01 s min.), 6
counting start modes and 2 counting modes (UP or DOWN). The
timer can also be equipped with an internal or external buzzer for
signaling the end of the count.
The 4 digits display normally shows the counting status while
the outputs status is signalled by 2 LEDs. The instrument has
also 2 digital inputs for voltage-free contacts that can be used
for the count enabling (CNT EN) and Reset (RES) commands
and can have up to 2 relay outputs or SSR for driving Solid
State Relays.
The instrument is programmed by using the 3 of the front panel
keys while the counting commands can be submitted using the
-Start/Stop or through the digital inputs CNT EN and RES.
The operating parameters configuration can be done through
keypad, A01 device connected to TTL port (standard) or using
