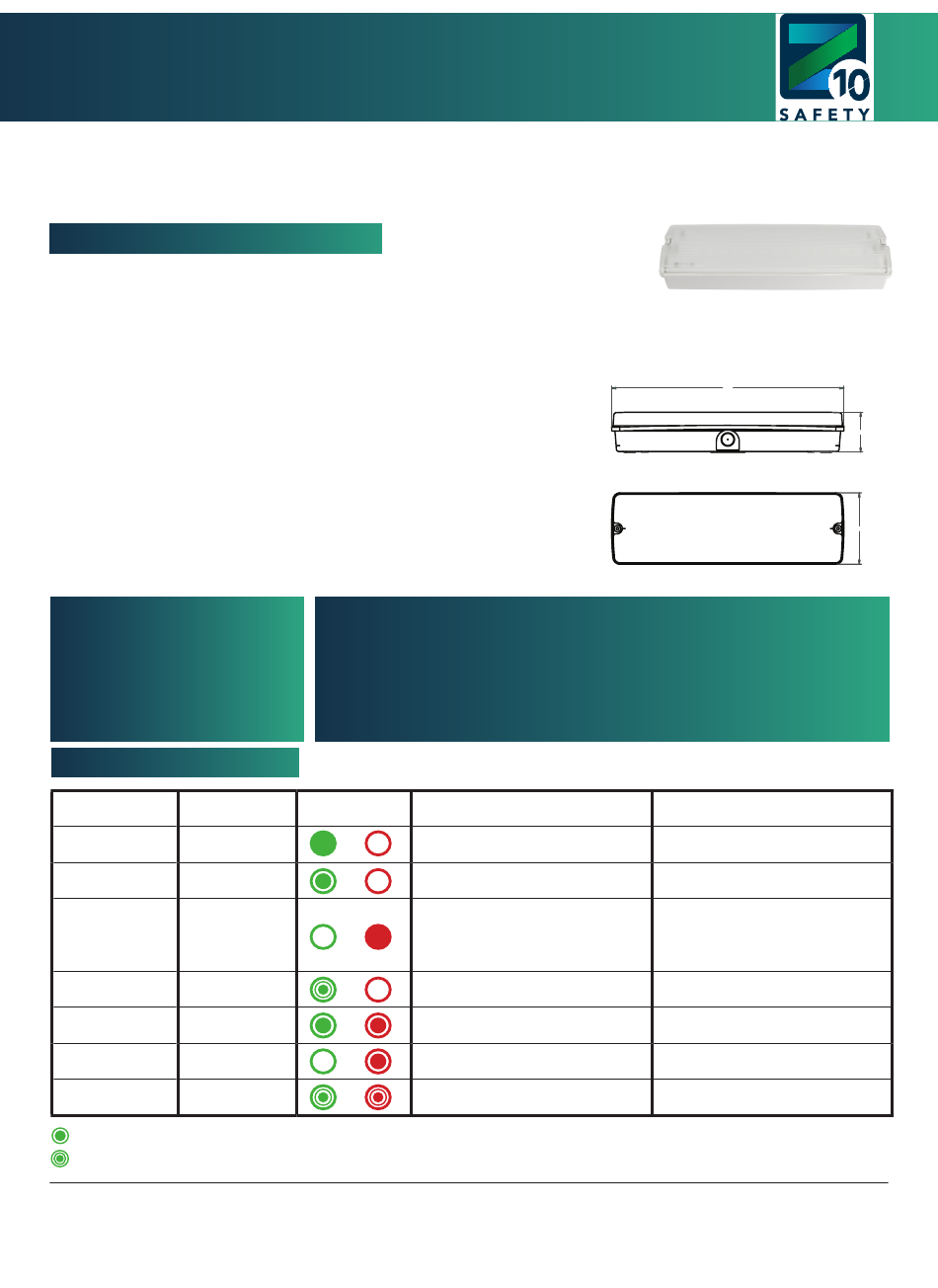

LiteGear Emergy Brick LED User Manual

Emergy Brick - LED
user manual
Thank you for purchasing our LED emergency light. Be assured that our products have been de-
signed according to the relevant standards below and if installed and maintained correctly they
will provide long life service.
BS EN 60598-1 / BS EN 60598-2-22 / BS EN 50172 / BS EN 1838 / BS EN 62034
Installation/maintenance/servicing notes:
• Read the instructions before mounting/installation and hand it over to the custo-
mer for storage after installation.
• Luminaires should only be installed by qualified personnel.
• This product is configured as non-maintained. This means that it only switches
on in case of failure of the power supply. Maintained mode is possible. Refer to
installation and mounting on the following page.
• The LED light source and control gear are non-replaceable. Once end-of-life is
reached, the whole luminaire will need to be replaced.
• In case of mains supply failure, the battery will automatically energise the emer-
gency light for a minimum of 3 hours. After 3 hours 5 minutes the luminaire will
enter into stand-by mode to prevent battery over-discharge. The battery must be
recharged again no later than 6 months after mains supply's failure.
• Self-test emergency luminaires are programmed to carry out functional and full
duration tests according to DIN EN 50172:2004.
• First battery charge takes up to 16 hrs.
• Battery re-charge takes up to 8hrs. Note that full cycle (discharge and recharge)
takes up to 12 hours.
• Contact Z10 Safety if a battery replacement is required.
• This product is subject to Z10 Safety's Warranty Policy.
AST (Advanced Self-Test)
Coding „LED indicator status":
Green LED Red LED
Solid ON OFF
Normal Flash OFF
OFF Solid ON
Fast Flash OFF
Normal Flash
Normal Flash
OFF Normal Flash
Fast Flash Fast Flash
Normal flash = 1Hz (about once/second)
Fast flash = 2Hz (about twice/second)
Z10 Safety GmbH
This is a self-test luminaire. Functional test is carried out automatically once a week
and runs for 30 seconds. Full duration test is carried out automatically every 52
weeks. First full duration test is carried out automatically within the first 4 weeks
after the luminaire being connected to mains voltage. This luminaire can be used in
conjunction with the Advanced Remote Control (ARC). ARC IR Remote control is an
optional tool that adds extra features to AST emergency luminaires. Please refer to
the ARC's user guide.
G R
Functional/Duration test in progress
An Fürthenrode 45
54511 Geilenkirchen
Status
OK
Charging
Battery disconnected /
Duration test failure
Battery temperature
Light source fault
PST clock unsync
tel.: +49(0)2451-484-53-10
355
Action required
-
-
Connect battery/
Replace battery
-
Consult with Z10 Safety
Replace Luminaire
Consult with Z10 Safety
info@z10safety.de
www.z10safety.de
60.8
109
