LiteGear LITEMAT SPECTRUM User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

LITEMAT
SPECTRUM (2023)
USER GUIDE
TM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LITEMAT SPECTRUM and is the answer not in the manual?

Questions and answers

Related Manuals for LiteGear LITEMAT SPECTRUM

Summary of Contents for LiteGear LITEMAT SPECTRUM

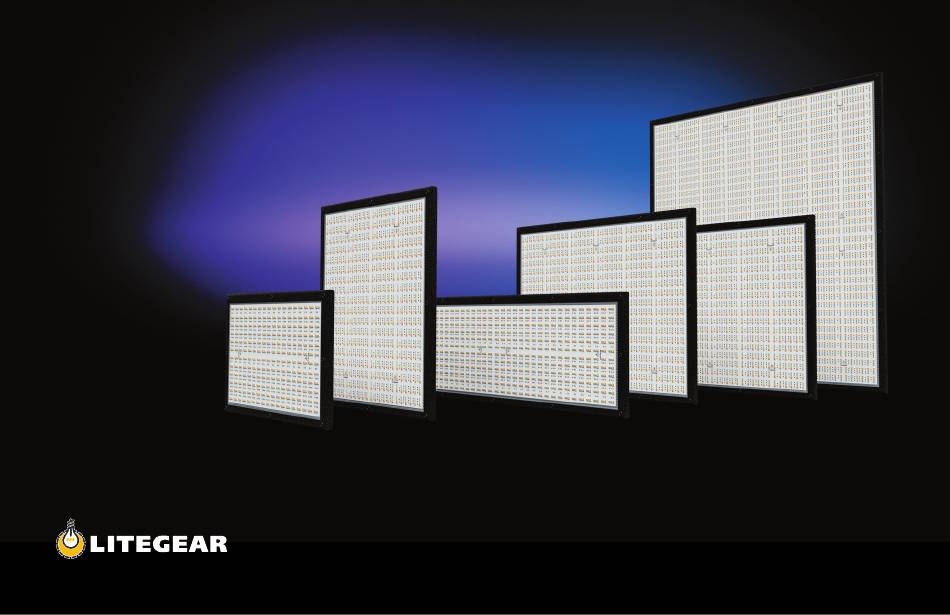

  • Page 1 LITEMAT SPECTRUM (2023) USER GUIDE...
  • Page 2 © 2023 LITEGEAR, INC. All rights reserved. Information subject to change without notice. LiteGear and all affiliated companies disclaim liability for any injury, damage, direct or indirect loss, consequential or economic loss or any other loss occasioned by the use of, inability to use or reliance on the information contained in this document.

  • Page 3: Table Of Contents

    LiteMat Spectrum 2 (2023) Spects ....25 Features ................. 4 LiteMat Spectrum 2 (2023) Dimensions ..26 Overview LiteMat Spectrum 2L (2023) Specs ....27 LiteMat Spectrum 2L (2023) Dimensions ..28 LiteMat Spectrum 1 (2023) Front ....... 5 LiteMat Spectrum 1 (2023) Back ......6 LiteMat Spectrum 3 (2023) Specs ....29...

  • Page 4: Dangers

    DANGER • Repairs must be performed by LiteGear or an authorized service agent. • Maintenance to be performed only when identified in this user guide. • Hight voltage! Risk of electric shock and fire. • Follow all safety information and operation instructions before operating or installing this product or system.

  • Page 5: Warning

    WARNING Risk of electric shock from high humidity. • Do not operate or expose this product to rain or moisture. • If the product is exposed to moisture, allow unit to dry for a period of 4 hours to prevent any electrical damage from occurring to electrical components.

  • Page 6: Introduction

    LiteDimmer Spectrum AC/DC 200 & 400 brings advanced electronics, Ethernet communication, and AC or DC operation in a compact unit. Designed to be rigid, lightweight, ultra-thin, and easy to rig, the versatile LiteMat Spectrum is the go-to lighting solution for stage, studio, or location lighting setups.

  • Page 7: Features

    Precision-Calibrated Electronics Improved calibration in LiteDimmer Spectrum electronics ensures consistent performance across the Spectrum family of products. Updatable Pixel driver firmware The ability to install the latest firmware keeps your LiteMat Spectrum running smoothly with improved functionality and performance.
  • Page 8 LiteMat Spectrum 1 (2023) Overview Fixture - Front View 1. Spectrum Light Engine 2. Protective Clear Film 3. Velcro Border 4. Mounting Eyelets...
  • Page 9 LiteMat Spectrum 1 (2023) Overview Fixture - Back View 5. Pixel Control Cover 6. Mount Plate 7. PDX Connector 8. Inline Fuse Block...
  • Page 10 LiteMat Spectrum 2 (2023) Overview Fixture - Front View 1. Spectrum Light Engine 2. Protective Clear Film 3. Velcro Border 4. Mounting Eyelets...
  • Page 11 5. Pixel Control Cover 6. Mount Plate 7. PDX Connector 8. Inline Fuse Block...
  • Page 12 LiteMat Spectrum 2L (2023) Overview Fixture - Front View 1. Spectrum Light Engine 2. Protective Clear Film 3. Velcro Border 4. Mounting Eyelets...
  • Page 13 LiteMat Spectrum 2L (2023) Overview Fixture - Back View 5. Pixel Control Cover 6. Mount Plate 7. PDX Connector 8. Inline Fuse Block...
  • Page 14 LiteMat Spectrum 3 (2023) Overview Fixture - Front View 1. Spectrum Light Engine 2. Protective Clear Film 3. Velcro Border 4. Mounting Eyelets...
  • Page 15 LiteMat Spectrum 3 (2023) Overview Fixture - Back View 5. Pixel Control Cover 6. Mount Plate 7. PDX Connector 8. Inline Fuse Block...
  • Page 16 LiteMat Spectrum 4 (2023) Overview Fixture - Front View 1. Spectrum Light Engine 2. Protective Clear Film 3. Velcro Border 4. Mounting Eyelets...
  • Page 17 LiteMat Spectrum 4 (2023) Overview Fixture - Back View 5. Pixel Control Cover 6. Mount Plate 7. PDX Connector 8. Inline Fuse Block...
  • Page 18 LiteMat Spectrum 8 (2023) Overview Fixture - Front View 1. Spectrum Light Engine 2. Protective Clear Film 3. Velcro Border 4. Mounting Eyelets...
  • Page 19 LiteMat Spectrum 8 (2023) Overview Fixture - Back View 5. Pixel Control Cover 6. Mount Plate 7. PDX Connector 8. Inline Fuse Block...

  • Page 20: Overview

    Overview Connections Best practices for connecting to and disconnecting from the connector. 1. Toggle the Power Switch to the OFF position. 2. Insert the cable connector into the PDX OUT port until the connector locks in place. 3. Toggle the Power Switch to the ON position. Best practices for connecting to and disconnecting from the Battery...

  • Page 21: Litedimmer Stand Mount

    Dimmer Installation LiteDimmer Stand Mount The LiteDimmer Stand Mount provides a secure attachment of the LiteDimmer Spectrum AC/DC 200 or the LiteDimmer Spectrum AC/DC 400 to a light stand. A k-Mount enables quick attachment to the AC600, while the Super Clamp affixes firmly to the stand stem.

  • Page 22: Accessories

    Accessories Light Control LiteMat Polyskirt: A multi-wall polypropylene (coroplast) skirt that helps control the light output by limiting the amount of light exiting the fixture beyond the 120 degree primary field. The PolySkirt is assembled using shock-cord and mounts to the LiteMat head with Velcro. The PolySkirt also serves as an accessory holder as all remaining accessories require its use.

  • Page 23: Cable/Mounting/Transportation

    Accessories Cables / Mounting / Transportation PDX Cable: Used to connect the LiteMat Spectrum fixture to the LiteDimmer Spectrum. Available in 25 ft (7.6 m) or 50 ft (15.2 m) lengths. LiteMount: Is based on the RAM® ball-and-socket mounting system – a trusted, durable, and reliable mounting system with many ancillary accessories.
  • Page 24 Color Temperature Range: 2,000K to 11,000K Tint Control: Full plus and minus green adjustment Dimming Range: 0 to 100% Continuous (When paired with a compatible LiteGear Dimmer) Colored Light: 6-color, wide gamut hue and saturation control Estimated LED Lifetime: 50,000 hrs Power &...
  • Page 25 LiteMat Spectrum 1 (2023) Specifications Dimensions [1.0] [1.0] 21.1 [1.0] 21.1 21.1 25.4 535.4 25.4 25.4 535.4 535.4 Front Side 1 in (25.4 mm) 21.1 in (535.4 mm) Back...
  • Page 26 Color Temperature Range: 2,000K to 11,000K Tint Control: Full plus and minus green adjustment Dimming Range: 0 to 100% Continuous (When paired with a compatible LiteGear Dimmer) Colored Light: 6-color, wide gamut hue and saturation control Estimated LED Lifetime: 50,000 hrs Power &...
  • Page 27 LiteMat Spectrum 2 (2023) Specifications Dimensions [1.0] [1.0] [1.0] Side Front 25.4 25.4 25.4 1 in (25.4 mm) 21.1 in (535.4 mm) Back [ 21.1 ] [ 21.1 ] [ 21.1 ] [ 21.1 ] [ 21.1 ] [ 21.1 ]...
  • Page 28 Color Temperature Range: 2,000K to 11,000K Tint Control: Full plus and minus green adjustment Dimming Range: 0 to 100% Continuous (When paired with a compatible LiteGear Dimmer) Colored Light: 6-color, wide gamut hue and saturation control Estimated LED Lifetime: 50,000 hrs Power &...
  • Page 29 LiteMat Spectrum 2L (2023) Specifications 11.6 Dimensions Front 40 in (1015.5 mm) Side 1 in (25.4 mm) [ 1.0 ] [ 40.0 ] [ 1.0 ] [ 40.0 ] 25.4 1016 25.4 1016 Back 11.6 11.6...
  • Page 30 Color Temperature Range: 2,000K to 11,000K Tint Control: Full plus and minus green adjustment Dimming Range: 0 to 100% Continuous (When paired with a compatible LiteGear Dimmer) Colored Light: 6-color, wide gamut hue and saturation control Estimated LED Lifetime: 50,000 hrs Power &...
  • Page 31 LiteMat Spectrum 3 (2023) Specifications [ 1.0 ] [ 1.0 ] [ 1.0 ] 25.4 25.4 25.4 Side Front [ 30.5 ] [ 30.5 ] [ 30.5 ] 1 in (25.4 mm) 775.7 775.7 775.7 40 in (1015.5 mm) Back [ 21.1 ]...
  • Page 32 Color Temperature Range: 2,000K to 11,000K Tint Control: Full plus and minus green adjustment Dimming Range: 0 to 100% Continuous (When paired with a compatible LiteGear Dimmer) Colored Light: 6-color, wide gamut hue and saturation control Estimated LED Lifetime: 50,000 hrs Power &...
  • Page 33 LiteMat Spectrum 4 (2023) Specifications Dimensions 40.0 40.0 40.0 1015.5 1015.5 [ 1.0 ] 1015.5 [ 1.0 ] [ 1.0 ] Side Front 25.4 25.4 25.4 1 in (25.4 mm) 40 in (1015.5 mm) Back [ 21.1 ]...
  • Page 34 Color Temperature Range: 2,000K to 11,000K Tint Control: Full plus and minus green adjustment Dimming Range: 0 to 100% Continuous (When paired with a compatible LiteGear Dimmer) Colored Light: 6-color, wide gamut hue and saturation control Estimated LED Lifetime: 50,000 hrs Power &...
  • Page 35 LiteMat Spectrum 8 (2023) Specifications Dimensions 40.0 40.0 40.0 1015.5 1015.5 1015.5 [ 1.0 ] [ 1.0 ] [ 1.0 ] 25.4 25.4 25.4 Front Side 1 in (25.4 mm) 40 in (1015.5 mm) Back...

  • Page 36: Certifications

    Certifications...

  • Page 37: Maintenance

    2. Product surface can be cleaned by lightly spraying a mild detergent onto a soft cloth and wiping the product. Help Need Assistance You can always email us at info@litegear.com or for immediate assistance please call LiteGear customer experience at (818) 358-8542 Monday to Friday from 8:00 am to 4:30 pm PST.
  • Page 38 For additional information on your LiteMat Spectrum (2023), visit us at litegear.com/litemat-spectrum...
