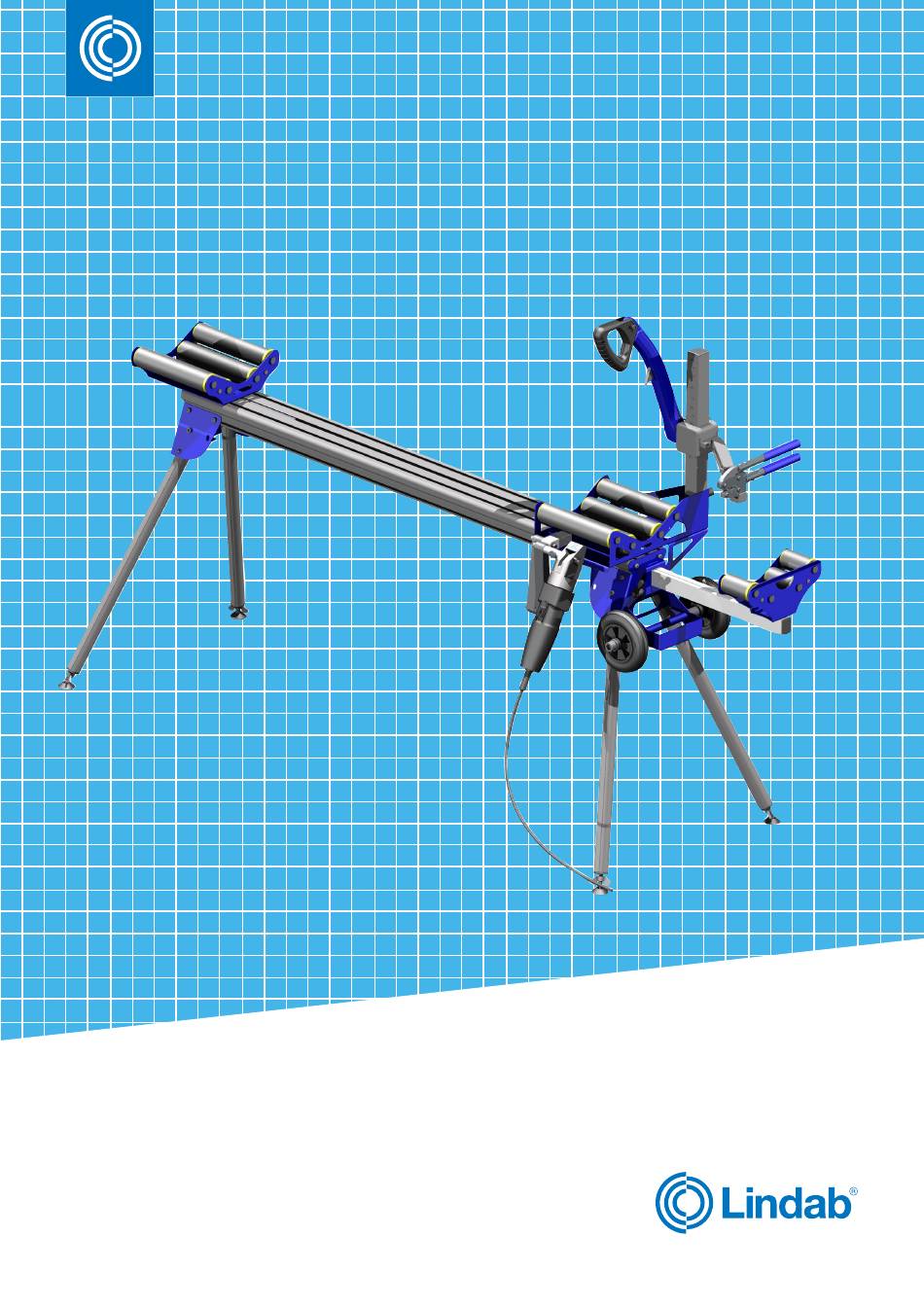

- Page 1 | fo r a b et t e r c l i m at e Lindab SR Cutter User manual...
-
Page 2: Table Of Contents
lin d a b | fo r a bet te r c li mate Content Safety instructions ..................3 SR cutter 103427 ...................4 Technical data ....................4 Bench - collapsed ..................4 Bench - erected ..................4 Accessories ....................4 Shears .......................4 Adapter (for shears TRC200) ..............5 Needle plier ....................5 Click plier, small (Ø... -
Page 3: Safety Instructions
l ind ab | for a b ette r clim ate Safety instructions Read through the manual before you start using the SR Cutter. Keep the manual at hand so that everyone who uses the SR Cutter has access to the manual. Wear protective goggles Risk of chips from the nibbling machine. -
Page 4: Sr Cutter 103427
lin d a b | fo r a bet te r c li mate SR cutter 103427 Technical data Bench - collapsed Part name Part nr Length 1645 mm SRCS2 3000 103 427 Width 470 mm SRCS2 3000 US 103428 Height 350 mm Bench - erected... -
Page 5: Adapter (For Shears Trc200)
l ind ab | for a b ette r clim ate Adapter (for shears TRC200) Part name Part nr Length 195 mm CSAD 179 007 Weight 0,37 kg Needle plier SRCS2 3000 103 427 Length 200 mm SRCS2 3000 US 103428 Weight 0,35 kg... -
Page 6: Presentation
lin d a b | fo r a bet te r c li mate Presentation Knife arm Slidable duct support Handle Stand Knife protection Arm for click pliers Knife Click pliers Setting block Fixed duct support Foldable legs Arm for shears Stopper Shears Telescopic arm... -
Page 7: Preparations For Cutting
l ind ab | for a b ette r clim ate Preparations for cutting Fold out the bench 1. Lift the bench opposite the wheel side. 3. Lift the bench by the handle on the wheel side. 2. Press in the buttons and turn out the legs until the buttons have 4. -
Page 8: Mount The Shears (Applies To Dräco 3514-7R)
lin d a b | fo r a bet te r c li mate Mount the shears (applies to Dräco 3514-7R) 1. Turn the split pin so that it is possible to mount the shears onto 2. Mount the shears and fold back the split pin so that the pin locks. the arm. -
Page 9: Instructions For Cutting
l ind ab | for a b ette r clim ate Instructions for cutting Set the desired duct length Set the desired duct length, 200–1500 mm: Set the desired duct length, 1500 mm and longer: 1. Loosen the telescopic arm's locking handle. 1. -
Page 10: Adjust The Knife Arm So That It Matches The Duct´s Diameter
lin d a b | fo r a bet te r c li mate Adjust the knife arm so that it matches the duct´s diameter 1. Loosen the locking handle on the setting block. 2. Move the block so that the top of the block is at the mark of the duct's diameter. -
Page 11: Cutting The Duct With The Shears
2. Insert the shears' cutting tooth into the hole. 3. Turn the duct almost one full turn towards you. Make sure the Lindab recommends to cut the outer needle from Ø 100 and scratched line is in the centre of the strip that is cut off. -
Page 12: Making Notches
5. Place the notches evenly around the circumference. You can easily loosen the pliers from the arm for separate use. For the recommended number of notches, see Mounting instruction - Lindab Safe and Lindab Safe Click. Moving the bench 1. Push in the telescopic arm and lock the handle. -
Page 13: Folding The Bench
li ndab | for a bette r cli m ate Folding the bench 1. Move the setting block so that the top of the block is above the 4. Move the click plier so that it is positioned horizontally above 250 mark. -
Page 14: Problem Solving
lin d a b | fo r a bet te r c li mate Problem solving Problem Cause Solution Remove and sharpen the knife or replace it The knife is blunt. with a new one. The knife is difficult to press through Move the setting block so that the mark above the duct. - Page 15 li ndab | for a bette r cli m ate Problem Cause Solution The scale is set to an Set correct length on the scale. incorrect length. During cutting, the duct was not pressed close enough to the stopper Press the duct close to the stopper. at the end of the telescopic arm.
-
Page 16: Bench (Sr Cutter)
lin d a b | fo r a bet te r c li mate Bench (SR cutter) Bench SRCS2 3000 103 427 SRCS2 3000 US 103 428 Spare parts Handle, block knife arm (1) Handle, block telescopic arm (2) Handle, stand knife arm (3) CSHSK2 160 976 CSHBT2... -
Page 17: Shears (Dräco 3514-7R)
li ndab | for a bette r cli m ate Foot for leg Knife protection Knife arm + tension block SRCSF2 103 497 CSKP2 112 787 SRCKA2 115 699 Shears (Dräco 3514-7R) Shears 3514-7R CSS EU 230 226 607 CSS UK 110 226 609 CSS CH 230 226 608... -
Page 18: Shears (Trumpf Trutool C200)
lin d a b | fo r a bet te r c li mate Shears (Trumpf TruTool C200) Shears TRC200 TRC200 984 316 Spare parts Adapter (see page Set curve Set Spiro 1 x SC cutter, 2 x toothed cutting 1 x curve cutter, 2 x cutting blade CSAD 179 007... -
Page 19: Contact
( +31 (010) 524 26 00 www.r-vent.com Norway Lindab A/S ( +47 22 80 39 00 www.lindab.no Poland Lindab SP. z o.o. ( +48 22 250 50 50 www.lindab.pl Romania Lindab SRL ( +40 21 209 4100 www.lindab.ro We reserve the right to make changes without prior notice... - Page 20 We at Lindab have therefore made it our most important objective to contribute to an indoor climate that improves people’s lives. We do this by developing energy-efficient ventilation solutions and durable building products.
