Lindab SR Series User Manual

Hide thumbs Also See for SR Series:
Table of Contents

Advertisement

Quick Links

lindab | w e simplify co nstructio n

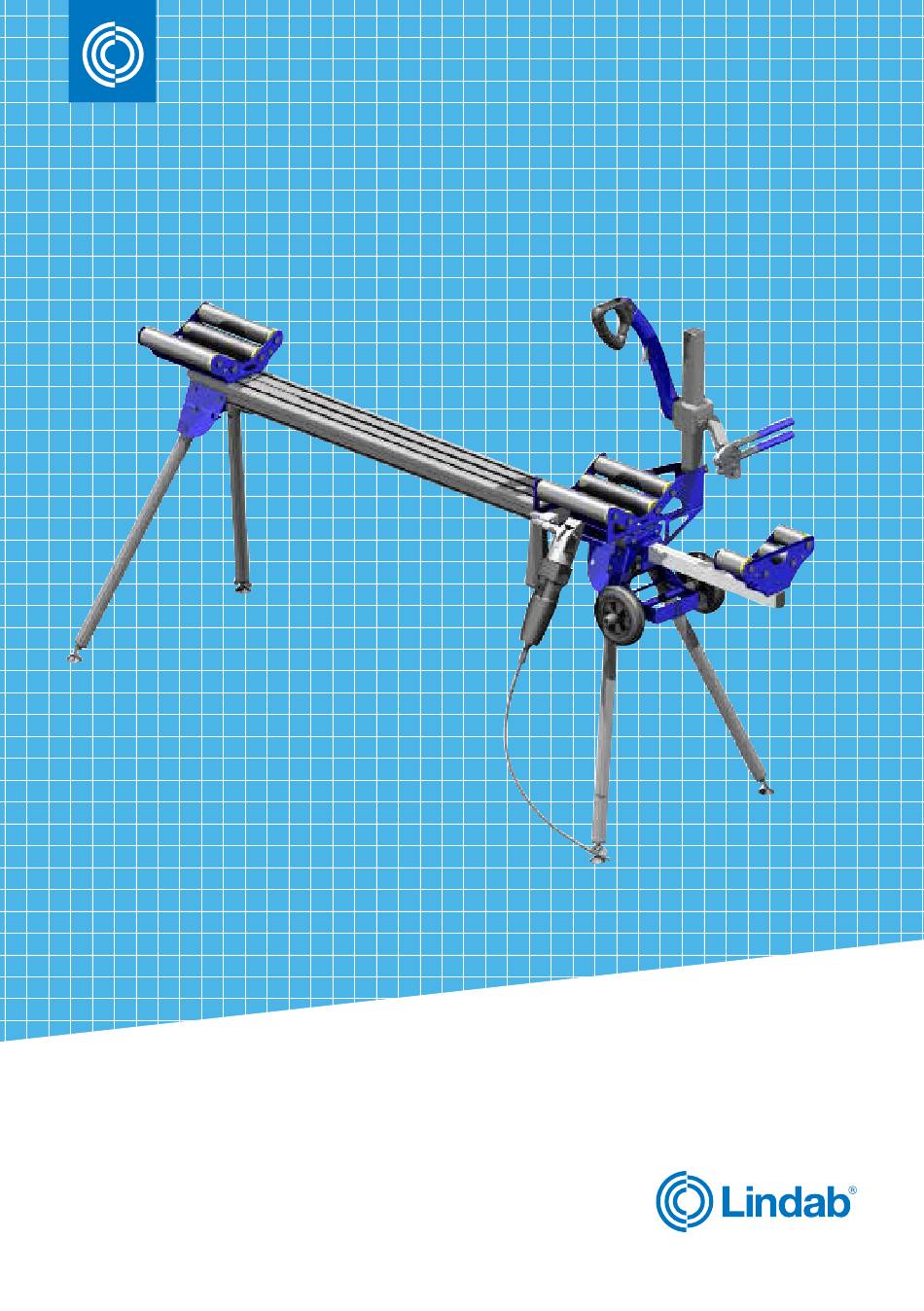

LindabSR Cutter
User manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SR Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lindab SR Series

Summary of Contents for Lindab SR Series

  • Page 1 | w e simplify co nstructio n LindabSR Cutter User manual...

  • Page 2: Table Of Contents

    SR Cutter 103427 Declaration of conformity 3 Wear ear defenders The noise level can vary when cutting the Lindab hereby declares under sole responsibility ducts, sometimes it exceeds 85 dB(A). Always wear ear defenders to protect your- self. 4 Make sure the stand is steady...

  • Page 3: Technical Data

    Technical data Bench – collapsed Part name Part nr Length 1645 SRCS2 3000 103 427 Width SRCS2 3000 US 103 428 Height Bench – erected Length 1880 Length 3140 (with extended telescope arm) Width Height 1180 Maximum permitted load 75,0 Weight 23,0 Accessories...

  • Page 4: Presentation

    Presentation Knife arm Slidable duct support Handle Stand Knife protection Arm for click pliers Knife Click pliers Setting block Fixed duct support Foldable legs Arm for shears Stopper Shears Telescopic arm Adjustable feet Lift handle Transport wheels Foldable legs Adjustable feet With this workbench you can cut ducts of 80-315 mm diameters and lengths of 200 mm and upwards.

  • Page 5: Preparations For Cutting

    Preparations for cutting Fold out the bench 1. Lift the bench opposite the wheel side. 3. Lift the bench by the handle on the wheel 2. Press in the buttons and turn out the legs side. until the buttons have snapped into the cor- 4.
  • Page 6 Mount the shears 1. Turn the split pin so that it is possible to 2. Mount the shears and fold back the split pin mount the shears onto the arm. so that the pin locks. Mount the arm for click pliers 1.

  • Page 7: Instructions For Cutting

    Instructions for cutting Set the desired duct length Set the desired duct length, 1500 mm and longer: 1. Measure how long the duct is that you want to cut. 2. Subtract the length you want your duct to be Set the desired duct length, 200–1500 mm: and the width of the knife (7 mm).
  • Page 8 Adjust the knife arm so that it matches the duct's diameter 1. Loosen the locking handle on the setting block. 2. Move the block so that top of the block is at the mark of the duct's diameter. 3. Tighten the locking handle. Make a hole with the knife Scratch a line with the knife 1.
  • Page 9 NCP 3. Turn the duct almost one full turn towards Lindab recommends to cut the outer needle you. Make sure the scratched line is in the from Ø 100 and upwards and to cut the inner centre of the strip that is cut off.

  • Page 10: Making Notches

    Use the 60-pliers for Ø 250–315 (Ø 10"-12"). Making notches For the recommended number of notches, see 3. Press the handles fully together. "Assembly Instructions Lindab Safe and Lindab 4. To control the notch, see the instructions for Safe Click". "Checking the notch".

  • Page 11: Moving The Bench

    Moving the bench 1. Push in the telescopic arm and lock the 5. Move the bench as shown in the picture. handle. 2. Move the slidable duct support as close to the fixed as possible. 3. Lower the knife arm. 4.

  • Page 12: Problem Solving

    Problem solving Problem Cause Solution Remove and sharpen the knife or The knife is blunt. replace it with a new one. The knife is difficult to press Move the setting block so that the through the duct. The knife arm is set at an mark above the block is the same incorrect height.
  • Page 13 Problem Cause Solution The scale is set to an Set correct length on the scale. incorrect length. During cutting, the duct was not pressed close enough to Press the duct close to the stopper. the stopper at the end of the The cut duct is the wrong telescopic arm.

  • Page 14: Bench (Sr Cutter)

    Bench (SR Cutter) Bench SRCS2 3000 103 427 SRCS2 3000 US 103 428 Spare parts Roller (100) Roller (250) CSPR2 100 103 493 CSPR2 250 103 494 Arm for click plier Pin for Dräco Knife blade CSCPS2 103 430 CSSAA2 103 498 CSKE2 103 496...

  • Page 15: Shears (Dräco 3514-7R)

    Handle, block knife arm (1) Handle, block knife arm (1) Handle, block telescopic arm (2) Handle, stand knife arm (3) CSHSK2 CSHSK2 160 976 160 976 CSHBT2 160 977 CSHBK2 160 978 Shears (Dräco 3514-7R) Shears 3514-7R CSS EU 230 226 607 CSS UK 110 226 609...

  • Page 16: Click Pliers

    Click pliers Click pliers CSCP 40 100 754 CSCP 60 100 755 Spare parts Gauge CSNC 100 096...

  • Page 17: Contact

    Contact Belgium Poland Lindab N.V. Lindab SP. z o.o. ( +32 9 385 5011 ( +48 22 489 88 00 www.lindab.be www.lindab.pl Czech Republic Romania Lindab s.r.o. Lindab SRL ( +420 233 107 100 ( +40 21 2094 100 www.lindab.ro...
  • Page 20 At Lindab, good thinking is a philosophy that gui- des us in everything we do. We have made it our mission to create a healthy indoor climate – and to simplify the construction of sustainable buil- dings. We do that by designing innovative pro- ducts and solutions that are easy to use, as well as offering efficient availability and logistics.

This manual is also suitable for:

Srcs2 3000Srcs2 3000 us
