AFX Gilbert GILW0707LAJEN Series Manual

LED Outdoor Luminaires
Wall Mount
120VAC / 60HZ
INSTALLATION INSTRUCTIONS
CAUTIONS
THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE
APPLICABLE INSTALLATION CODE BY A PERSON FAMILIAR WITH
THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE
HAZARDS INVOLVED;CE PRODUIT DOIT ÊTRE INSTALLÉ SELON
LE CODE D'INSTALLATION PERTINENT, PAR UNE PERSONNE QUI
CONNAÎT BIEN LEPRODUIT ET SON FONCTIONNEMENT AINSI QUE
LESRISQUES INHÉRENTS.
CONSULT A QUALIFIED ELECTRICIAN TO ENSURE CORRECT BRANCH
CIRCUIT CONDUCTOR BEFORE INSTALLING.
"CONSULTER UN ÉLECTRICIEN QUALIFIÉ POUR VOUS ASSURER QUE
LES CONDUCTEURS DE LA DÉRIVATION SONT ADÉQUATS".
1. Please read and understand this entire manual before
attempting to assemble, install, or operate this light fixture.
2. This fixture is designed for use in a 120VAC / 60Hz fused circuit.
This fixture is not compatible with dimming circuit.
3.
Some codes require installation by a qualified electrician.
This light fixture must be properly grounded.
4.
5. Make sure connections are secure using included
connector, crimp-on lugs or other UL approved connecting
devices.
6. Before installation or servicing, turn the power OFF at the circuit
breaker or fuse. Place tape over the circuit breaker switch and
verify power is OFF at the light fixture.
This fixture is intended to be used for general outdoor lighting in
7.
dry, damp, or wet locations. For wet locations, fixture must be
mounted at least 48 inches above ground level.
8. MIN 90 °C SUPPLY CONDUCTORS;
"LES FILS D'ALIMENTATION 90°C MIN" .
SAVE THESE INSTRUCTIONS
FOR FUTURE REFERENCE
Page 1 of 2

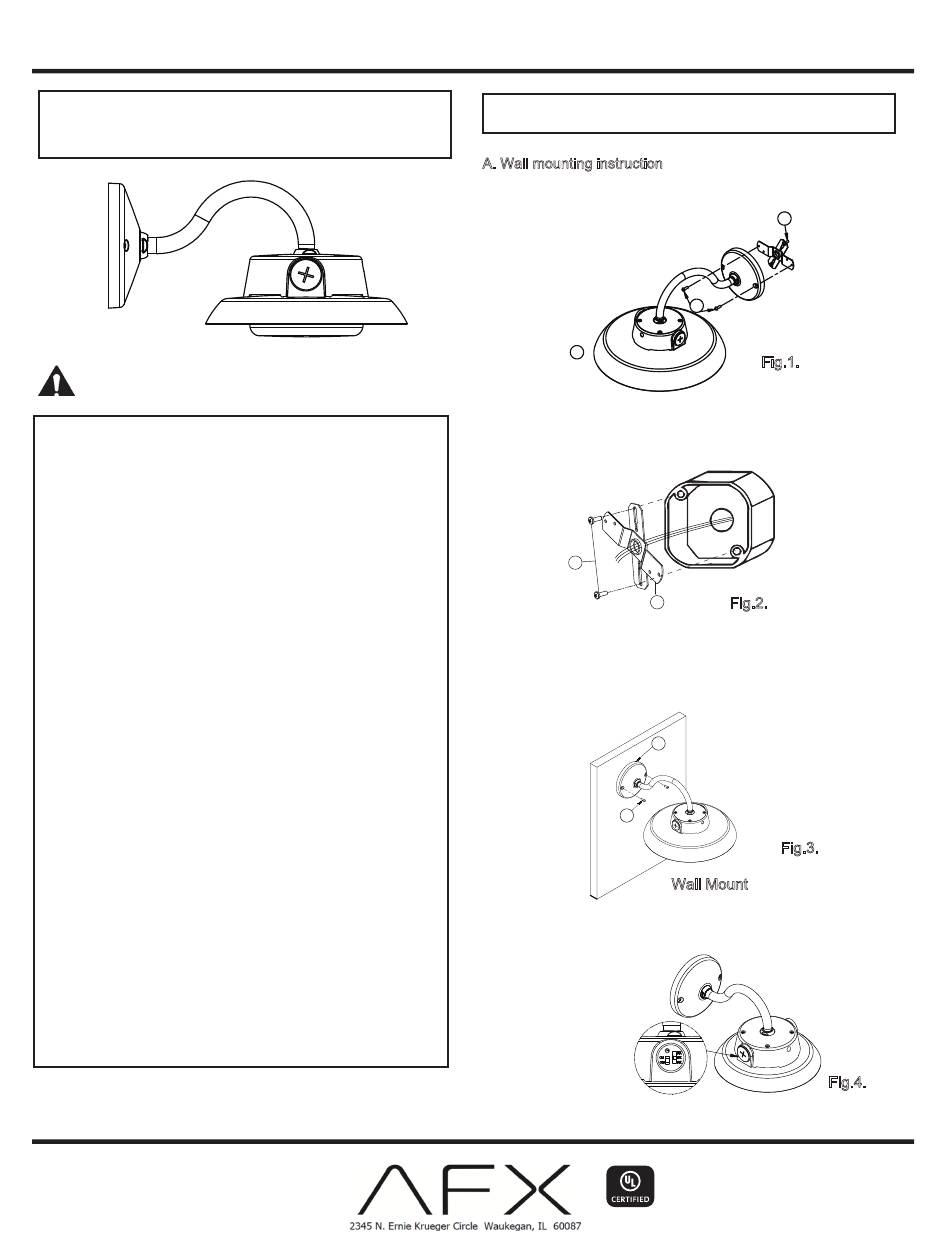

A. Wall mounting instruction
1. Remove the mounting bracket (D) from the back of the fixture
by removing the mounting bracket screws (F) (fig 1). Retain
screws for later use.
2. Route the junction box wires through the large center hole in the
mounting bracket (D). Align the holes on the mounting bracket (D) with
the holes of the junction box. Use two #8 screws (AA)to secure it. (fig .2)
3. Complete the electrical connections per the Fixture Wiring section
4. Once wiring is complete, mount the fixture by aligning the mounting holes
in the cover plate (C) with the holes in the mounting bracket. Secure with
mounting bracket screws (F) as shown In Fig.3.
Wago
5. CCT switch is located on the side of the fixture (fig. 4). Adjust the switch to
desired color temperature of 3000K, 4000K, or 5000K. Note: Fixture is preset
to 3000K from factory.
6. Restore power at the fuse or circuit breaker box.
Model # GILW0707LAJENxx
MOUNTING
F
A
AA
Fig.2.
D
C
F
Wall Mount
GILW1210LAJENxx
D
Fig.1.
Fig.3.
Fig.4.
8061709 R0
