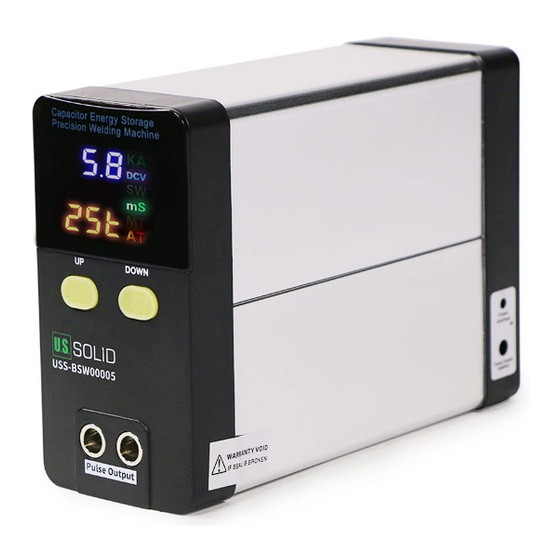

- Page 1 Manual No. 7076 BATTERY SPOT WELDER Capacitor Energy Storage Precision Welding Machine USS-BSW00005 User Manual...
-
Page 2: Table Of Contents
U.S. Solid Ba/ery Spot Welder USS-BSW00005 Manual, Version 2.4, 2024.4.2 www.ussolid.com Contents Product IntroducBon…………………………………….…………………………………………..…………1 II. Usage Scenarios………………………………………….…………………………………………..…………..2 III. Welding Reference Table…………………………….………………………………………………..……..2 IV. Product Parameters………………………………………………………………………..…………………..3 Package List…………………………………………………………………………………………………………3 VI. Product Diagram……………………………………….…………………………………………………………4 VII. How To Use…………………………………………………………………………………………………………5 • Usage Diagram………………………………….………………………………………………………………5 • ‘AT/MT’ Welding Modes…………………….………………………………………………………………7 •... -
Page 3: Product Introducbon
Product IntroducGon • The newly designed U.S. Solid USS-BSW00005 high-frequency inversion ba/ery spot welder equips with the two super capacitors for energy storage and power supply for pulse welding. Unlike tradiBonal AC transformer spot welders, it is more portable and it does not cause any interference to the electric circuit, eliminaBng tripping problems. -
Page 4: Usage Scenarios
U.S. Solid Ba/ery Spot Welder USS-BSW00005 Manual, Version 2.4, 2024.4.2 www.ussolid.com Usage Scenarios Lithium ba/ery pack quick building & maintenance for electric appliances, electric vehicles, etc. Especially designed for the 18650 lithium ba/ery pack quickly building. Circuit Board/Hardware/Electronic Components/Lead Wire spot welding. -
Page 5: Product Parameters
U.S. Solid Ba/ery Spot Welder USS-BSW00005 Manual, Version 2.4, 2024.4.2 www.ussolid.com Product Parameters Model USS-BSW00005 Welding Mode AT/MT AC 100-240 V 50/60 Machine Input Power Adjustment 0-99 t (0.1ms/t) Charging Current 4.5 A Pulse Delay Time 20 ms Welding Thickness of Charging Time ≤... -
Page 6: Product Diagram
U.S. Solid Ba/ery Spot Welder USS-BSW00005 Manual, Version 2.4, 2024.4.2 www.ussolid.com Product Diagram Panel Diagram Power Grade - 10 t Actual Capacitor Voltage - 5.8 V Welding Mode - MT ‘E-1’ Error - Check the Actual Welding Current - 800 A... -
Page 7: How To Use
U.S. Solid Ba/ery Spot Welder USS-BSW00005 Manual, Version 2.4, 2024.4.2 www.ussolid.com How To Use Usage Diagram 1. Plug in the power adapter on the back side of machine. 2. Connect to the right power supply. 3. Press the ‘UP/DOWN’ two bu/ons at the same Bme to switch on the machine and charging. - Page 8 U.S. Solid Ba/ery Spot Welder USS-BSW00005 Manual, Version 2.4, 2024.4.2 www.ussolid.com 6. Press the ‘UP/DOWN’ bu/ons to adjust the machine power grade, the adjustment range is 0-99t. 7. The default welding mode is ‘AT’ - AutomaBc Welding Mode. 8. Plug in the foot pedal switch and keep it stepped, press the ‘UP/ DOWN’...
-
Page 9: At/Mt' Welding Modes
U.S. Solid Ba/ery Spot Welder USS-BSW00005 Manual, Version 2.4, 2024.4.2 www.ussolid.com ‘AT’ Mode - AutomaGc Welding Mode Set the ‘AT’ welding mode Press two welding electrodes on Check the welding effect welding pieces with an enough and uniform pressure, welding pulse will be released automaBcally aper a 20ms delay. -
Page 10: Integrated-Style Welding Pen
U.S. Solid Ba/ery Spot Welder USS-BSW00005 Manual, Version 2.4, 2024.4.2 www.ussolid.com 70B Integrated-style Welding Pen 70B Welding Pen Parameters Welding Pen Size 150x40x22 mm Wire SecBonal Area 16 mm² Welding Pins Distance 2-7 mm Welding Pins Size Φ1.5mm x 7mm... -
Page 11: Handle-Push Welding Arm
U.S. Solid Ba/ery Spot Welder USS-BSW00005 Manual, Version 2.4, 2024.4.2 www.ussolid.com 73S Handle-push Welding Arm The distance between the welding needle and ba/ery pack is 4-9mm. InstallaGon of 73S welding arm 1. Install the handle 2. Unscrew the lid 3. Take down the lid 4. -
Page 12: Usage Nobce
U.S. Solid Ba/ery Spot Welder USS-BSW00005 Manual, Version 2.4, 2024.4.2 www.ussolid.com Usage NoGces • Precious metals like gold, silver and jewelry cannot be welded. • Never contact the two welding electrodes of welding pen. • Never contact the ba/ery posiBve and negaBve terminals at the same Bme. -
Page 13: Troubleshoobng Table
U.S. Solid Ba/ery Spot Welder USS-BSW00005 Manual, Version 2.4, 2024.4.2 www.ussolid.com TroubleshooGng Table Problems Possible Causes SoluBons welding material not supported check the material welding material too thick check the thickness the welding pen electrodes, clean the welding components welding pieces and welding or replace new welding Error Type - ‘E01’... -
Page 14: Warranty
No responsibility is assumed for any consequenBal damages that may result from the use of a U.S. Solid product, nor for damages due to accident, abuse, lack of care, affixing of unauthorized a/achment, loss of parts or subjecBng this unit to any but the specified voltage.
