Powering On/Off - Geometrics MagEx Quick Start Manual

the cap (Otherwise, the gasket inside the cover may get damaged!). Align the cap and push it against the
main body until it is latched on both top and bottom.

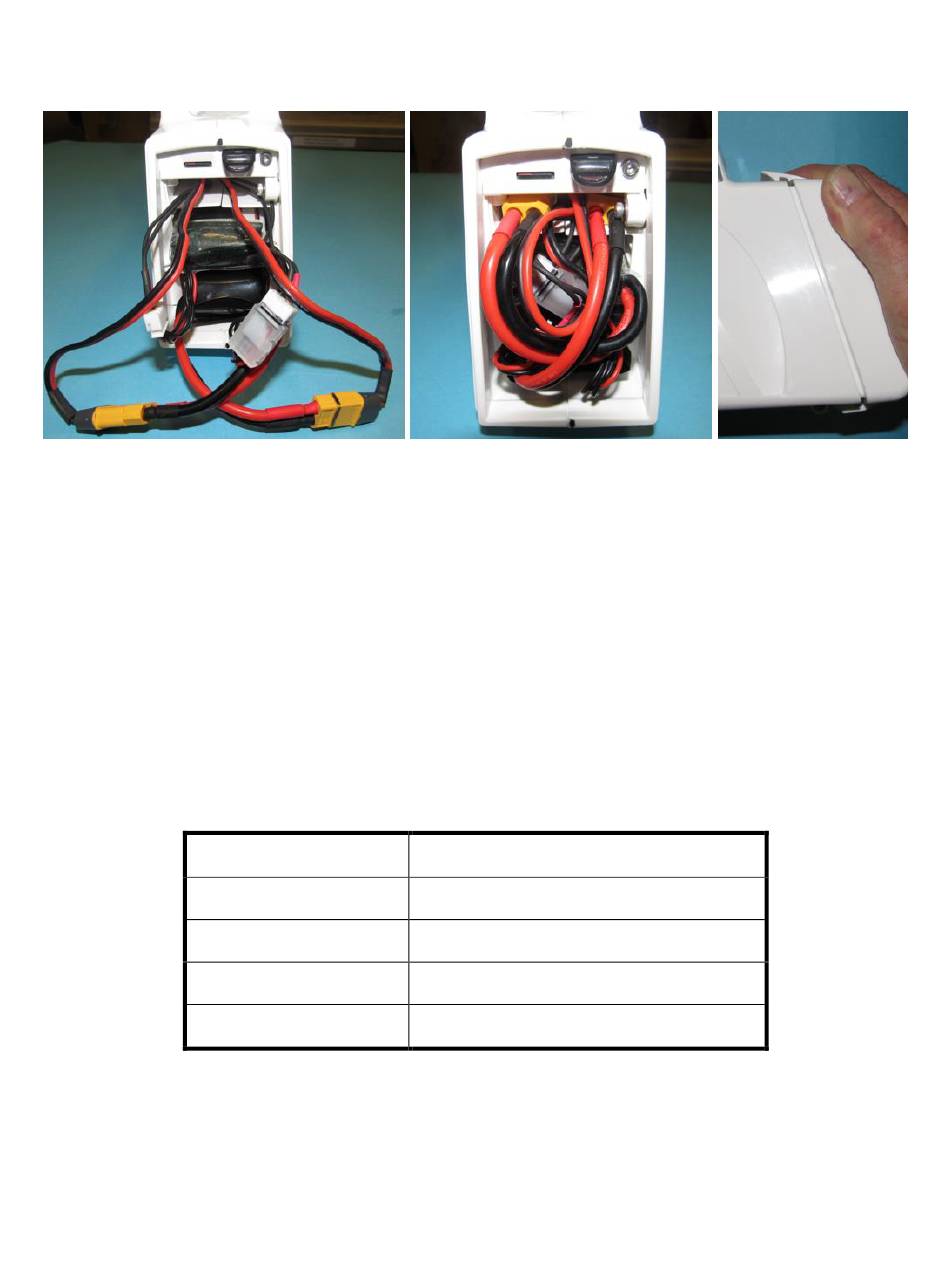

Figure 2-1 – Battery connectors, USB and SD card locations, battery end cap. The battery connector and
voltage monitor come in pairs. To get the most accurate battery monitoring, make sure that you match
wires so that each battery is plugged into the voltage monitor that corresponds to its matched battery
connector.

3.0 Powering On/Off

The power button is located on the end of the handle section.
On - depress and release power switch.
Reset - Depress and release power switch once while the unit is on.
Off - Press and hold power button for 3 seconds. The LED's will go out once the unit is completely powered
down.
Power Switch LED Meaning
Solid Green
Battery > 30%
Solid Blue 30% > Battery > 20%
Solid Red 20% > Battery > 5%
Flashing Red Charge Immediately
Table 1 - LED Light Patterns (Reference purpose only. A brand new 6000mAh battery can typically last 6
o
hours at room temperature, but only 3 hours at -20 C. The battery lifetime will also vary depending on
the condition of the batteries. To avoid data loss, customers are encouraged to change the batteries
before reaching 20% level.)
