- Page 1 QuickStart Guide FortiAnalyzer 3510G FAZ-3510G...
-
Page 2: Before You Begin
Fortinet. For absolute clarity, any such warranty will be limited to performance in the same ideal conditions as in Fortinet’s internal lab tests. -
Page 3: Package Contents
To access our Resource Center, Professional Services and Technical Support Services, visit https://www.fortinet.com/support 1x Ethernet Cable 1x Console Cable (DB9 to DB9) Thank you for choosing Fortinet 2x Sliding Rails with 1x Screw Kit Brackets (2x M4x4L, 8x M5x12L w/Washers,... -
Page 4: Setup Options
Data bits: Stop bits: Parity: None Console Cable Flow Control: None Port 1 Console Port Management Computer Management Computer Ethernet Cable Note: For static IP configuration, use 192.168.1.1 with subnet mask Note: For a detailed CLI guide, visit https://docs.fortinet.com 255.255.255.0... -
Page 5: Sfp Modules
SFP Modules Rack Installation Seperate the inner rails Installation 1. Extend the rails and press the push tab to release the inner rail Cage Socket Removal Cage Socket Push Tab Lock Outer Rail Middle Rail Inner Rail... - Page 6 Attach the inner rails Install the chassis 1. Align the inner rails with the chassis hooks. 1. Extend the middle rail until it locks into position. 2. Slide the inner rails forward until locked. 2. Slide the inner rails into the middle rails until locked. 3.

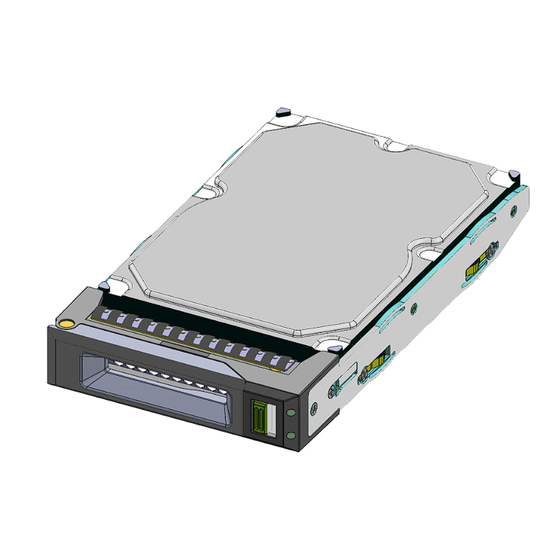

- Page 7 Front FAZ-3510G System Status Storage Slots 1 to 24 (SED SAS HDD) 4TB per slot, RAID-50, 84TB total usable capacity, hot-swappable Power button press on/off Storage Activity Reset press and hold to reset device Blue : Normal operation Power LED power detected Flashing Blue : Data activity : No power to storage device...
- Page 8 Rear FAZ-3510G Redundant Power Supplies (x2) Ports 1 & 2 (RJ45) 100-140VAC, 10-7A, 50-60Hz or 180-240VAC, 11-8A, 50-60Hz Speed (Left LED) Activity (Left LED) Green: PSU providing power Green: 10 Gbps Green: Connected Amber: PSU error or input not detected Amber: 1 Gbps Flashing Green: Data Activity...
-
Page 9: Cautions And Warnings
Beseitigung einer BATTERIE in Feuer oder einen heißen Ofen oder mechanisches Zerkleinern oder Schneiden einer BATTERIE, 限用物質含有情況表 (RoHS Table) 請到以下 網址下載： die zu einer EXPLOSION führen kann. https://www.fortinet.com/bsmi Verlassen einer BATTERIE in einer extrem hohen Umgebungstemperatur, die zu einer EXPLOSION oder zum Austreten von brennbarer Flüssigkeit oder Gas führen kann. - Page 10 地址：台北市內湖區行愛路176號2樓 電話：(02) 27961666 China 警告: 在居住环境中，运行此设备可能会造成无线电干扰。...
- Page 11 Fortinet.com...
