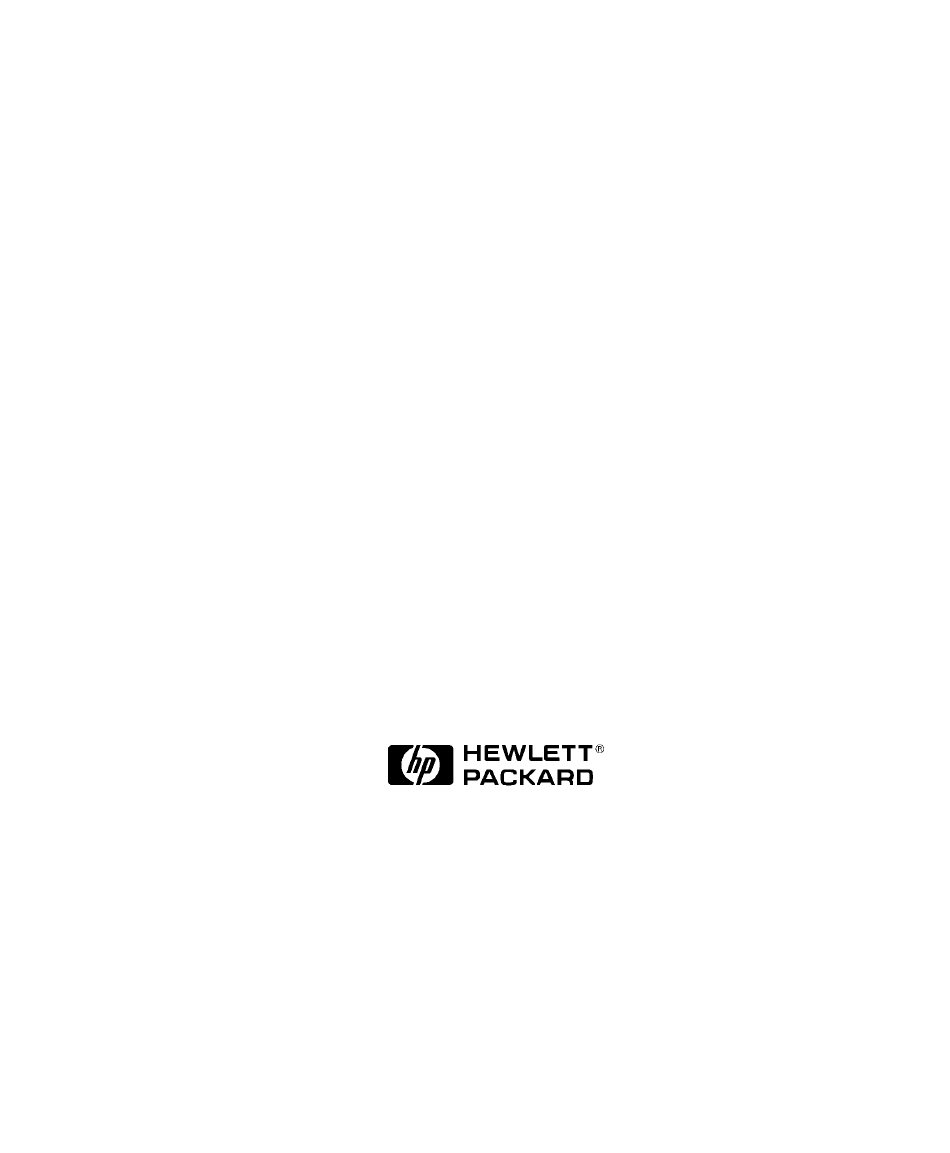

Addendum to D Class Enterprise Servers
Installation and User's Guide
Third Edition
HP 9000 Series 800t Computers
Manufacturing Part Number: Z7634-96002
February 2000
Communications Infrastructure Computer Operation
© Copyright 2000 Hewlett-Packard Company
Download from Www.Somanuals.com. All Manuals Search And Download.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 9000 800t Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Helwett Packard 9000 800t Series

Summary of Contents for Helwett Packard 9000 800t Series

  • Page 1 Addendum to D Class Enterprise Servers Installation and User’s Guide Third Edition HP 9000 Series 800t Computers Manufacturing Part Number: Z7634-96002 February 2000 Communications Infrastructure Computer Operation © Copyright 2000 Hewlett-Packard Company Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 2 Notice The information contained in this document is subject to change without notice. HEWLETT-PACKARD MAKES NO WARRANTY OF ANY KIND WITH REGARD TO THE MATERIAL, INCLUDING, BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Hewlett-Packard shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material.
  • Page 3 Printing History The Printing History below identifies the edition of this manual and any updates that are included. Periodically, update packages are distributed which contain replacement pages to be merged into the manual, including an updated copy of this printing history page. Also, the update may contain write-in instructions.
  • Page 4 About This Manual The HP 9000 family of products embraces the D Class Enterprise Server line which includes Series 800t, a NEBS-compatible version. This document explains how to install the seismic rack and DC power supply which provide NEBS compatibility for the system. Download from Www.Somanuals.com.

  • Page 5: Table Of Contents

    Contents 1. Addendum to D Class Enterprise Servers System Installation Guide Contents ........... .8 Purpose of this Addendum .
  • Page 6 Contents Download from Www.Somanuals.com. All Manuals Search And Download.
  • Page 7 Addendum to D Class Enterprise Servers System Installation Guide Download from Www.Somanuals.com. All Manuals Search And Download.

  • Page 8: Contents

    Addendum to D Class Enterprise Servers System Installation Guide Contents Contents • Purpose of this Addendum • Seismic Rack Kit • Installation • DC Power Supply Chapter 1 Download from Www.Somanuals.com. All Manuals Search And Download.

  • Page 9: Purpose Of This Addendum

    Addendum to D Class Enterprise Servers System Installation Guide Purpose of this Addendum Purpose of this Addendum This addendum provides information and procedures for installation of a Hewlett-Packard 9000 Series 800t D Class Server in a Central Office. It provides information about differences between this computer and the Hewlett-Packard D Class Enterprise Server, and contains the following procedures not found in the D Class Enterprise Servers System Installation Guide:...

  • Page 10: Seismic Rack Kit

    Addendum to D Class Enterprise Servers System Installation Guide Seismic Rack Kit Seismic Rack Kit The HP 9000 Series 800t D Class Server can be fitted with a seismic rack mount kit for installation in a 19-inch open relay rack. This earthquake rack fulfills Bellcore requirements for Telecommunication equipment installed in a NEBS-compatible central office.
  • Page 11 Addendum to D Class Enterprise Servers System Installation Guide Seismic Rack Kit Table 1-1 Earthquake Rack-Mount Components Description Quantity Item Part Number Number Split Lock Washer, #12 2190-0631 Flat Washer, #12 3050-0103 Screw 10-32 x, 38” Torx Pan 2680-0281 Flat Washer, #10 3050-0226 Nut w/lock, 10-32 2740-0003...

  • Page 12: Site Hazard Considerations

    Addendum to D Class Enterprise Servers System Installation Guide Seismic Rack Kit Site Hazard Considerations Hewlett Packard recommends the following environmental and mechanical factors for review and compliance prior to installation of equipment. 85° F T - Manufacturer’s maximum recommended ambient temp. 1.

  • Page 13: Installation

    Addendum to D Class Enterprise Servers System Installation Guide Installation Installation Install the seismic rack kit and the HP 9000 Series 800t D Class Server into an open relay rack using the following steps. References to item numbers in these steps pertain to the item numbers listed in Table 1-1 on page 10.
  • Page 14 Addendum to D Class Enterprise Servers System Installation Guide Installation Figure 1-1 Seismic Rack Installation D Class Server 5. Attach the right and left main bracket panels (items 2, 3 in Figure 1-2 on page 15) to the vertical mounting rails of the relay rack, using hardware item 24, Table 1-1 on page 10.
  • Page 15 Addendum to D Class Enterprise Servers System Installation Guide Installation 7. Assemble base pan (Figure 1-2, item 7) to lower row of holes on main brackets, but do not tighten the hardware yet. With pan positioned between the main bracket panels from the rear, raise it to align the holes as needed.
  • Page 16 Addendum to D Class Enterprise Servers System Installation Guide Installation 8. Using item 16 screws (only) attach the bezel mount brackets (items 5, 6 in Figure 1-3) to the vertical rails as shown. Attach the two clip-on receptacles (item 30) at the bottom of the brackets as shown. 9.
  • Page 17 Addendum to D Class Enterprise Servers System Installation Guide Installation 12. Attach cable retractor (item 26, Figure 1-3) to right main bracket as shown. 13. Attach the slide assemblies to the main brackets using the top row of holes (above the base pan). Do not tighten the hardware (items 20, 21) yet.
  • Page 18 Addendum to D Class Enterprise Servers System Installation Guide Installation Figure 1-4 Seismic Rack Installation WARNING The HP 9000 D Class Enterprise Server weighs about 49.5 kg (110 lbs).Use Two people to lift the D Class server cabinet. 16. With tray extended hoist computer into position, aligning base with locator pins in tray.
  • Page 19 Addendum to D Class Enterprise Servers System Installation Guide Installation 18. Attach the latch panel (item 4) to front of mounting tray using five screws. 19. With the computer securely engaged within the rack assembly, check alignment of top cover (refer to Step 10) and tighten all fasteners. Figure 1-5 Seismic Rack Installation D Class Server...
  • Page 20 Addendum to D Class Enterprise Servers System Installation Guide Installation 23. Secure the bezel to the bezel mounts with the cover plates (item 10, 2 places) shown in Figure 1-6. Figure 1-6 Seismic Rack Installation 24. Route all cables to allow unrestricted movement of the assembly when sliding in and out.

  • Page 21: Dc Power Supply

    Addendum to D Class Enterprise Servers System Installation Guide DC Power Supply DC Power Supply The HP 9000 Series 800t D Class Server contains a NEBS-compatible direct current (DC) power supply, rather than the alternating current (AC) power supply furnished with the standard HP 9000 D Class computer.
  • Page 22 Addendum to D Class Enterprise Servers System Installation Guide DC Power Supply Table 1-2 shows the pinouts for the site end of this cable. Figure 1-5 shows a diagram of the pins. The user/installer must make connections to the site installation using this information. Connect the 9-pin connector on the supplied cable to the negative 48/60 volt power supply at the rear of the system chassis.

  • Page 23: Safety Grounding Procedures

    Addendum to D Class Enterprise Servers System Installation Guide DC Power Supply To protect the equipment from overload or short circuits that may cause NOTE equipment damage or fire, the power supply is fused internally. For added safety and integrity in the Central Office, the circuit which connects to power supply should be protected with a 30 Amp over-current fuse.

  • Page 24: Specifications

    Addendum to D Class Enterprise Servers System Installation Guide DC Power Supply Specifications Table 1-3 DC Power Specifications Specification Data Input -48V, 20A max under full load -60V Shutdown Thresholds -72V (input over-voltage) -40V (input under-voltage) Power 650W Outputs (* = remote sense provided) 3.3V*, 25A (maximum) 5V*, 55A (maximum) 12.V, 10A (maximum)

  • Page 25: Regulatory/Safety Statements

    Regulatory/Safety Statements Download from Www.Somanuals.com. All Manuals Search And Download.

  • Page 26: Fcc Statement (Usa Only)

    Regulatory/Safety Statements FCC Statement (USA Only) FCC Statement (USA Only) The Federal Communications Commission (in 47 CFR 15.105) has specified that the following notice be brought to the attention of the users of this product. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.

  • Page 27: International

    Regulatory/Safety Statements International International VCCI Class A Statement (Japan Only) Spécification ATI Classe A (France seulement) DECLARATION D'INSTALLATION ET DE MISE EN EXPLOITATION d'un matériel de traitement de l'information (ATI), classé A en fonction des niveaux de perturbations radioélectriques émis, définis dans la norme européenne EN 55022 concernant la Compatibilité...

  • Page 28: Product Noise Declaration (Germany Only)

    Regulatory/Safety Statements International Arrêté du 27 Mars 1993, publié au J.O. du 28 Mars - ATI Product Noise Declaration (Germany Only) Acoustic Noise Emissions LpA: 57 dB At bystander position per ISO 7779. All data are the results from type tests of the product configuration having the highest acoustic emissions: 8 disk drives.

  • Page 29: Emc Regulatory

    Regulatory/Safety Statements EMC Regulatory EMC Regulatory EMC Certification prEN 55024-2 prEN 55024-3 prEN 55024-4 For USA, FCC Class A, part 15 For Europe, CISPR-22 Level A For Japan, VCCI Class A EMC Labels CE MarkFCC Statement Canadian EMC Statement Japanese VCCI Statement Safety Safety Certification UL 1950, 2nd Edition...
  • Page 30 Regulatory/Safety Statements EMC Regulatory DECLARATION OF CONFORMITY according to ISO/IEC Guide 22 and EN 45104 Manufacturer’s Name: Hewlett-Packard Company Manufacturer’s Address: 8000 Foothills Blvd. Roseville, CA 95747, USA declares that the product: Product Name: PA-RISC Computer System Model Numbers: HP 9000, Models Dxyz (x, y, z is any number 0-9) and Z76xy (x, y is any number from 0 to 9) Product Options: conforms to the following Product Specifications:...
