- Page 1 ASHE CONTROLS PRIVATE LIMITED. OPERATION MANUAL ASHE CONTROLS PRIVATE LIMITED. DIGITAL BAR-GRAPH INDICATOR...
-
Page 2: Installation
This calibration may be changed by the end-user by following the instructions under the “CONTROL & PARAMETER SETTINGS” section]. The BMX-21 provides two control Relays output. The set points of which can set in CONTROL SETTINGS menu explained below with it’s independent Hysterisis value, through the Keypad on the front panel [see C –... -
Page 3: Operation And Settings

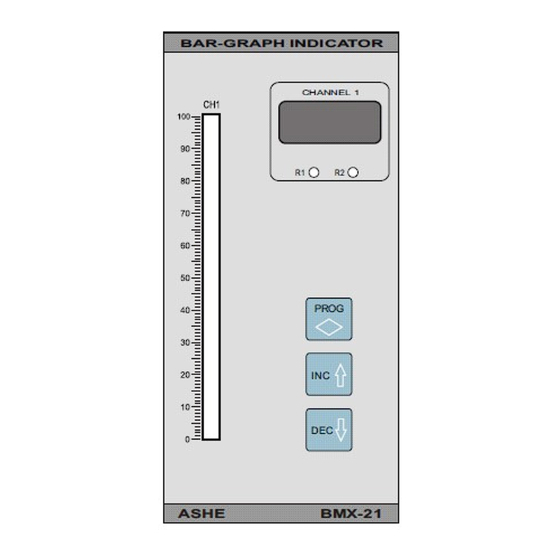

ASHE CONTROLS PRIVATE LIMITED. OPERATION & SETTINGS The front panel of the Digital Bar-Graph Indicator is as shown below: CHANNEL 1 - Four Digit Seven Segment Display shows process value of Input. 100 LED Bar-Graph shows process bar of Input. -
Page 4: Control Settings
ASHE CONTROLS PRIVATE LIMITED. CONTROL & PARAMETER SETTINGS The following is the sequence of settings on the Digital Indicator / Controller: CONTROL SETTINGS Alternate 100 LED MAIN FUNCTION Pressed Display Bar-Graph DISPLAY (POWER ASHE Process Initialization of internal controller. The instrument shows process value on Seven... -
Page 5: Display Menu
DEC ( While Parameter Setting Mode the both Bar-Graphs and all Relays are OFF. This completes the entire settings of the BMX-21 Digital Bar-graph Indicator. DISPLAY MENU The explanation of the various Displays and Messages that would be visible on the... -
Page 6: Technical Specifications
ASHE CONTROLS PRIVATE LIMITED. TECHNICAL SPECIFICATIONS Model BMX-21 Type Microcontroller based Digital Bar-graph Indicator with Control option No. of Channel One Nos. Input Signal 4 to 20 mA DC Display 100 LED Bar-graph and Seven-segment, Red LED display Indications Two LEDs for status of Relays.
