Grosvenor GT10/L Installation Manual

Version 1.0 January 2020
GT10/L Industrial Enclosure
Installation Guide
Part number: AE-ENC-EP-GT10

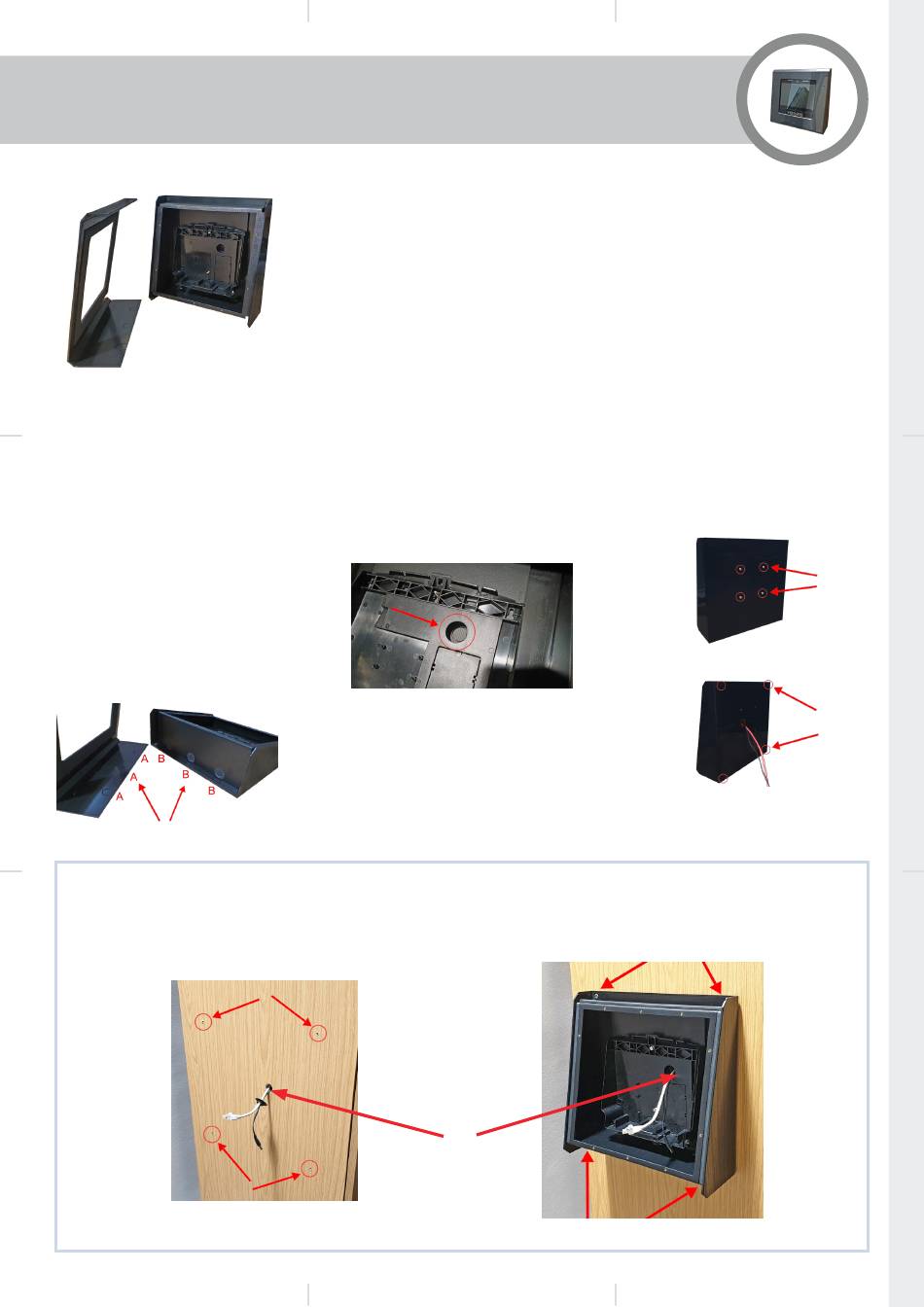

1. There are two routes for
cable ingress into the
enclosure.
▪ Back/wall side
(recommended)
▪ Bottom
2. If the bottom is chosen push
out one of the 3 breakout
holes (A) and puncture one
the 3 rubber grommets (B)
for cable ingress.
For wall mounting
Drill holes in the wall for the 4 corner screws and
cable feeds. Push grommet over the cables ready
for mounting in the enclosure.
3. If the back/wall entry is chosen
push through the rear break out
tab and fit the rubber grommet
to the hole once it has been
punctured for cable ingress.
Feed screws through grommets in the 4 corners of
the enclosure and secure to the wall.
Mount cables and
cable grommet
into the rear of the
enclosure.
4. There are two methods for
mounting the unit.
▪ VESA mounting points
▪ Wall mounting points
