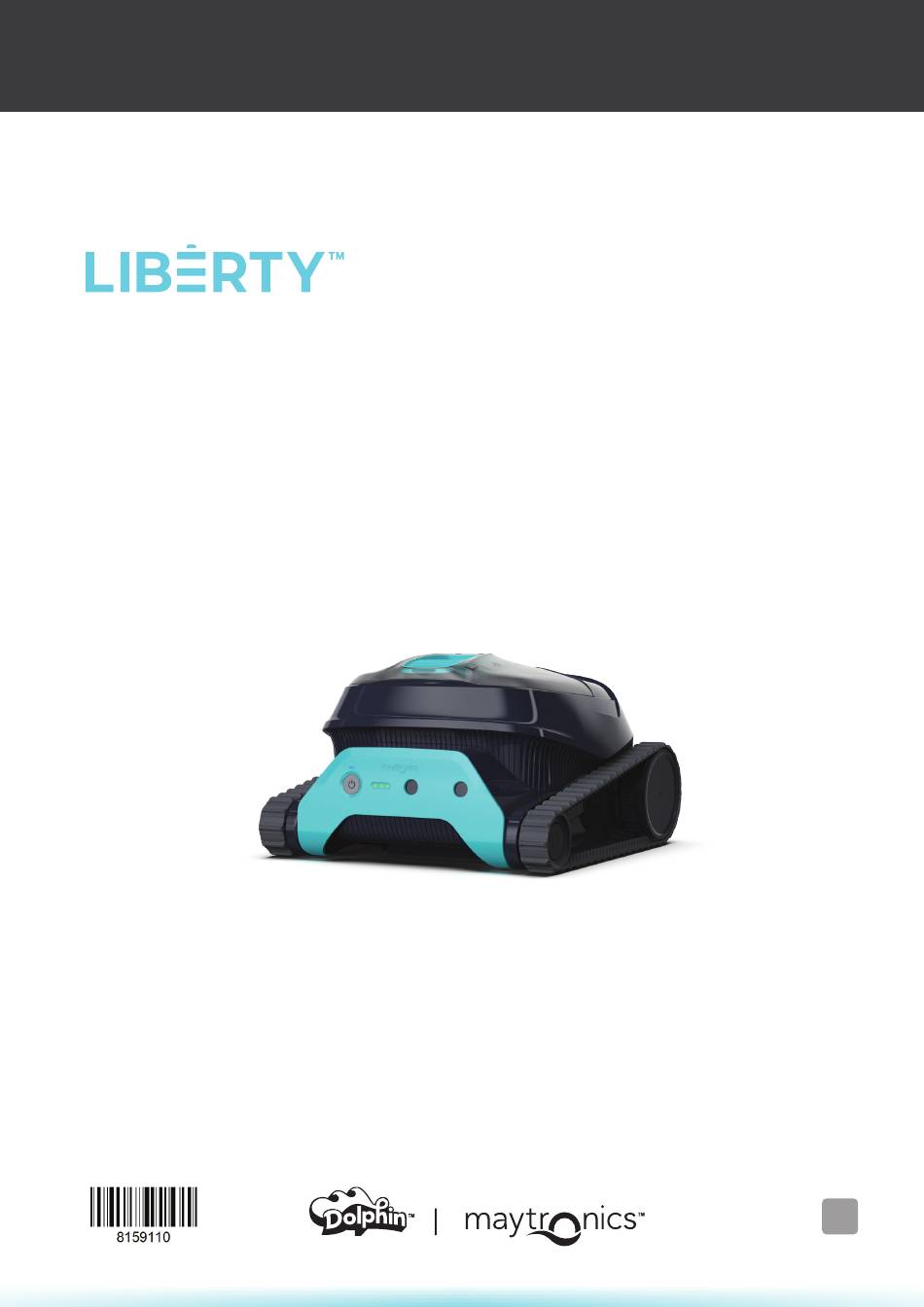

- Page 1 Robotic Pool Cleaner LIBERTY 100 | 200 | 300 | 400 User Instructions...
-
Page 2: Table Of Contents
LIBERTY 100 | 200 | 300 | 400 Cordless Robotic Pool Cleaner User Instructions Content Safety Instructions 1. Getting Started ..................................5 1.1 What's in the Box ................................5 1.2 First Time Use .................................. 5 2. Specifications .................................... 6 2.1 Robot ....................................6 2.2 Water Conditions ................................ - Page 3 IMPORTANT SAFETY INSTRUCTIONS READ AND FOLLOW ALL INSTRUCTIONS WARNINGS: WARNING Please adhere strictly to following Remove the robotic pool cleaner from the pool before allowing people to enter the pool. When examining the robotic pool cleaner, make sure the robotic pool cleaner is switched OFF. Charge the battery only in the temperature range between 6°C to 35°C / 43°F - 95°F.
- Page 4 IMPORTANT SAFETY INSTRUCTIONS The Lithium-Ion battery in this product is non-replaceable. It should be recycled at certified battery electronics recyclers that accept batteries. Batteries should NOT be discarded in the trash or put in municipal recycling bins. Do not disassemble the battery. Impeller blades hazard WARNING Read User Instructions before servicing...
-
Page 5: Getting Started
LIBERTY 100 | 200 | 300 | 400 Cordless Robotic Pool Cleaner User Instructions 1. GETTING STARTED 1.1 What’s in the Box Settings and Battery indicators status indicator Power button Inductive charger connection Impeller Accessories Filter panels Filter basket Grab hook Charger tool Clicker... -
Page 6: Specifications
2. SPECIFICATIONS 2.1 Robot Water depth range: 0.3m - 3m / 1ft - 9.8ft Motor protection: IP 68 Battery Lithium-ion | 5,000mAh | 25.2V ; 5Ah / 126Wh Radio communication: Bluetooth® 5.0 - 2402-2480 MHz - Maximum power 2.1mW 2.2 Water Conditions Use the robotic pool cleaner only in the following water conditions: •... -
Page 7: Charging Recommendations
4. CHARGING RECOMMENDATIONS • When the battery is low and all indicators are off - the cleaner is on standby mode. Connect the charger to the robot to wake it up. • Always charge the pool cleaner in a protected and shaded area at a temperature range of 6°C - 35°C / 43°F - 95°F, until you see 3 green bars in the battery indicator panel (up to 6 hours). -
Page 8: Cleaning The Filter Basket
6. CLEANING THE FILTER BASKET To prevent debris from hardening on the filter, we highly recommend quick-rinsing the filter immediately after removing the robot from the pool. Rinsing after each use - removing and cleaning the filter basket Open the filter cover. Upon opening the filter cover, the handle will lift independently. -
Page 9: Periodic Cleaning
7. PERIODIC CLEANING - RECOMMENDED ABOUT ONCE A MONTH Dismantle the 2 ultra-fine filter panels of the basket, using the following steps: Dismantle the 2 panels with your thumbs. Clean the filter panels with a hose. Re-assemble the filter panels. Insert the clean filter basket and close the filter cover. -
Page 10: Cleaning The Impeller
7.1 Cleaning the Impeller Hair and other debris can get stuck in the impeller causing the robot not to work well. Clean the impeller periodically to improve the robot's performance. CAUTION: Make sure you connect the charger to turn the robot off and insert the impeller Tap or scan for tutorial cleaning safety tool. -
Page 11: Mydolphin Tm Plus App User Guide (Liberty 400 Only)
6. Name your new Dolphin robotic cleaner and you're ready to go. If you start the cleaning cycle via the app, you will get a notification that your robot is at the end of its cleaning cycle. -
Page 12: Mydolphin Tm Plus Troubleshooting
10. MyDolphin™ Plus - TROUBLESHOOTING Symptom Possible reason Corrective action Cannot pair the • The Bluetooth® on one of your • Turn the Bluetooth® off and on in your smartphone. MyDolphin™ Plus app to devices is either OFF or not in For iOS –... -
Page 13: Robotic Pool Cleaner Troubleshooting
11. ROBOTIC POOL CLEANER - TROUBLESHOOTING Symptom Possible reason Corrective action The robot does • An object is stuck in the tracks or wheels. • Carefully remove the object from tracks or wheels. NOT start. • An object or hair is stuck in the impeller. •... -
Page 14: Contact Maytronics Customer Care
Contact Maytronics Customer Care: Australia, NZ, South Africa North America 1 300 693 657 US 1-888-365-7446 infoau@maytronics.com Canada 1-855-634-8572 customersupport@maytronicsus.com Rest of the world / Maytronics HQ France 00 800 69694141 (toll free number) 00 972 77 96 14 204 (international call) +33 (0)4 42 98 14 90 wecare@maytronics.com support@maytronics.fr...
