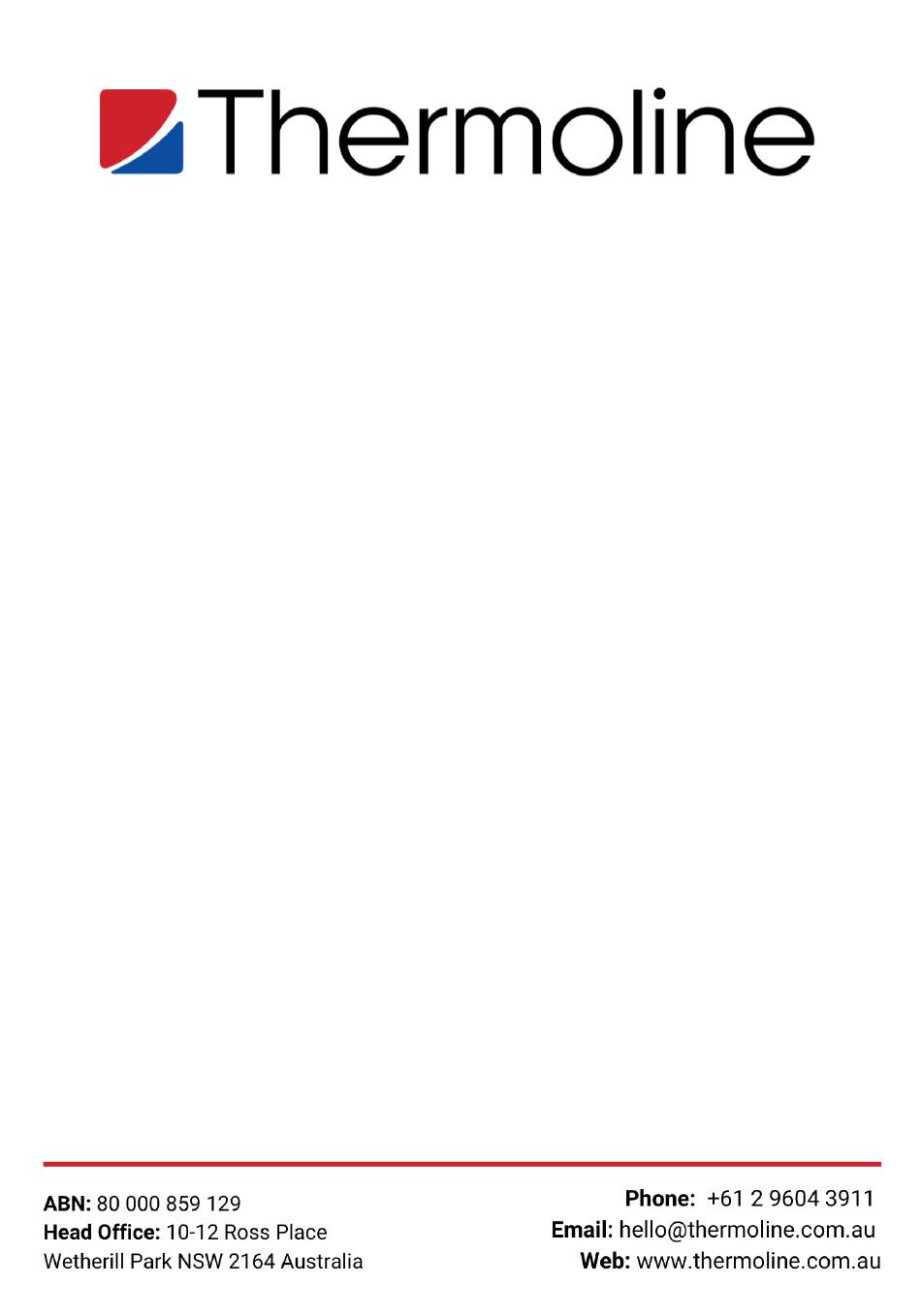

- Page 1 Hotplate Stirrer User Manual & Setup Guide THS RANGE...
-
Page 2: Table Of Contents
Contents Contents Symbol General Information Product Speci cations Setup Unpacking Packing List Hotplate Stirrer Components Location Electrical Connections Cleaning Hotplate Stirrer Operation Pre Use Procedure THS-135 Controls THS-185 Controls Safety Temperature Setting External Temperature Sensor Timer Setting (THS-185 only) Troubleshooting Warranty... -
Page 3: Symbol
Symbol Hotplate Stirrer User Manual By Thermoline Warning sign: signi es a general warning, and indicates a risk to people speci ed by the supplementary sign that if not avoided, may result in death or serious injury. General Warning Sign Warning;... -
Page 4: General Information
By Thermoline This user manual is intended for Thermoline's range of hotplate stirrers. We recommend that you read this user manual the whole way through before you start using the hotplate stirrer. Consider this manual as a component of the hotplate stirrer and an integral part to its function. -
Page 5: Product Speci Cations
Product Specifications Hotplate Stirrer User Manual By Thermoline Dimensions (WxDxHmm) THS-135 THS-185 External 250x148x85 350x220x100 Plate Dimensions (mm) Ø 135 185x185 Technical Specifications Stirring Capacity (Max litres) Speed Range (rpm) 50-1500 Max. stirring bar L x Ø (mm) 55x10 80x9.5 Temperature Range Ambient to +280°C... -
Page 6: Setup
Please see the below diagrams for removing the hotplate stirrer from the carton. • If upon opening your package damage is present, notify the detail of any damage to your supplier or to Thermoline Scienti c without delay at +61 2 9604 3911 or email at service@thermoline.com.au. -
Page 7: Hotplate Stirrer Components
Setup Hotplate Stirrer Components Stand and Clamp (sold separately) -
Page 8: Location
Setup Location Ensure the hotplate stirrer is placed in the correct environment, away from direct sunlight or direct heat sources. The product shouldn’t be placed in a room where the ambient temperature exceeds that of which it was designed to operate. The hotplate stirrer should be stored inside at all times. -
Page 9: Electrical Connections
Setup Electrical Connections The hotplate stirrer requires a 10amp 230V 50hz power supply. All hotplate stirrers should be used in a dedicated outlet. Do not use power boards or the like. The hotplate stirrer includes a removable mains power lead with a three-pin plug and straight female IEC plug. The hotplate stirrer itself has a 10 amp male IEC socket (power port). -
Page 10: Cleaning
Setup Cleaning Careful cleaning of the exterior of the plate can be done using a soft cloth and soapy water. Never use abrasive cleaners or scouring pads, as these will scratch the surface and may result in corrosion. Never use caustic-type cleaning agents. The hotplate stirrer has electrical components such as the temperature controller and stirring motor. -
Page 11: Hotplate Stirrer Operation
Hotplate Stirrer Operation Hotplate Stirrer User Manual By Thermoline Pre Use Procedure • Before proceeding, please make sure that all internal and external packaging has been removed from the hotplate stirrer and that all tape, plastic bags and foam pieces have been removed. -
Page 12: Ths-135 Controls
Hotplate Stirrer General Controls THS-135 Controls... -
Page 13: Ths-185 Controls
Hotplate Stirrer General Controls THS-185 Controls... -
Page 14: Safety Temperature Setting
Hotplate Stirrer General Controls Safety Temperature Setting The hotplate stirrer has a safety (maximum) temperature setting. This is adjusted using the supplied screwdriver through the hole next to the power on/off switch. Once you start to adjust the setting (turning the screw), the display will show the word SAFE and the current safety setting. -
Page 15: External Temperature Sensor
Hotplate Stirrer General Controls External Temperature Sensor Included with both models of hotplate stirrer as standard is a PT1000 external sensor. When the sensor is connected, the sensor indicator will light, and the machine is in the PT1000 operation mode. The temperature of the external sensor is set, and the actual temperature is displayed. -
Page 16: Troubleshooting
Serial Number and other related information with you. The serial number is on a white sticker, usually located near the power IEC socket. Contact Thermoline service on +61 2 9604 3911 or email at service@thermoline.com.au... -
Page 17: Warranty
Thermoline Scienti c Equipment Pty Ltd ABN 80 000 859 129 (‘Thermoline’) Thermoline warrants to the original purchaser that this product will perform to its product speci cation for a period of 2 years from date of purchase, provided that the installation of the product has been carried out in accordance with the latest version of the manufacturer’s instructions and further provided that the use of the product complies with that speci ed in the relevant... - Page 18 Doc ID: TM-062-V1...
