Summary of Contents for Vivitar VXXBR10

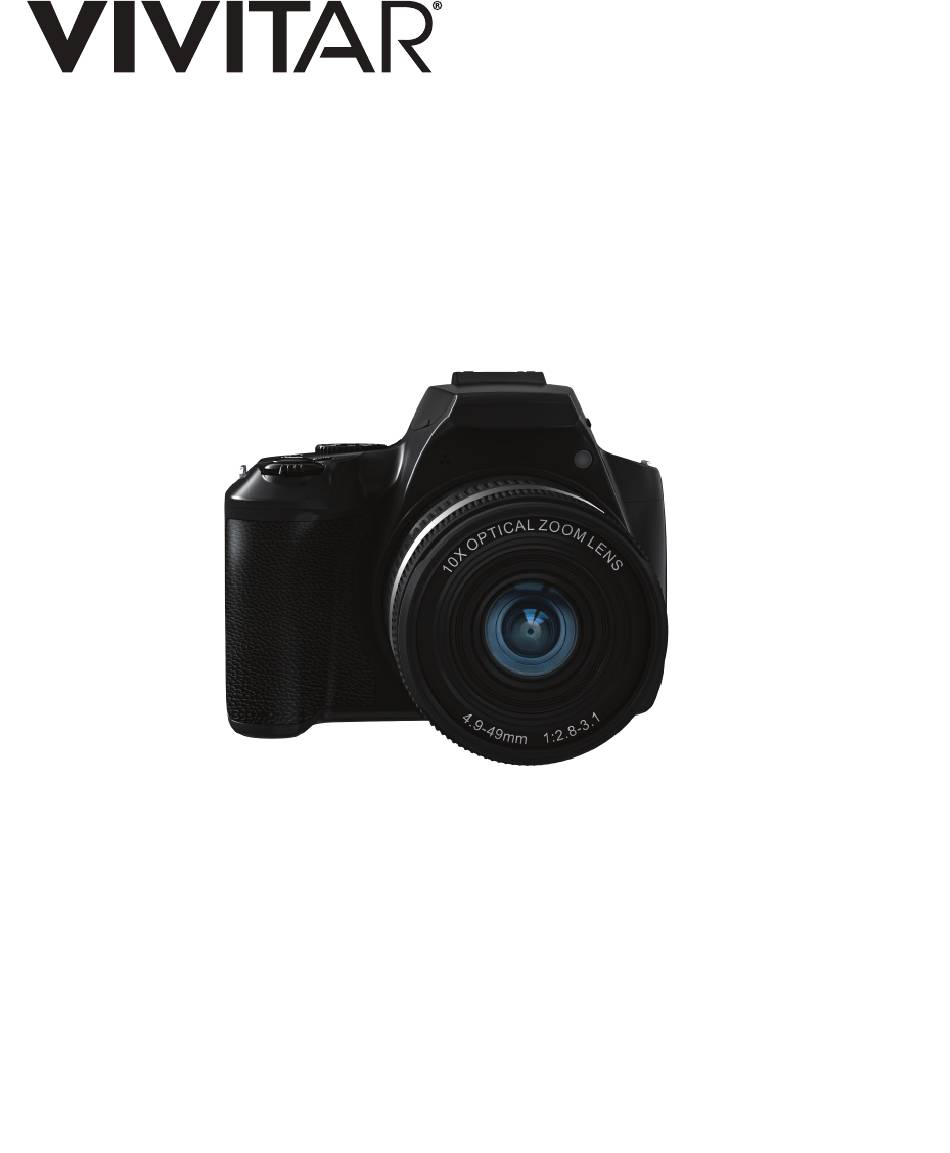

- Page 1 User’s Manual Item VXXBR10...
- Page 2 WARNING To reduce the risk of fire or electric shock, 1. ) Do not expose the unit to rain or moisture. 2.) Do not place objects filled with liquids, such as vases, on the apparatus. 3.)Do not expose the batteries to excessive heat, sunlight, smoke, fire or flames. Do not ingest battery;...
-
Page 3: Table Of Contents
Available System Settings 10-12 ......................Insert and Format the Memory Card ..................Using the Camera 14-16 ..........................Playback in HDTV ..........................Connect to Computer ........................Connect to the App ..........................Troubleshooting ..........................FCC Compliance Statement ......................Vivitar Warranty Card ........................ -

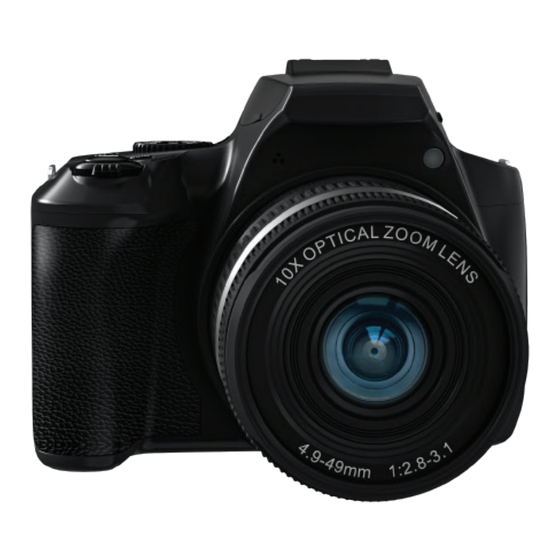

Page 4: A Quick Look At Your Camcorder
Closer Look Playback Auxillary Focus Light Left/Macro Button AE/AF Up/EV Button Down/Timer Button Indicator light Confirm ISO Shortcut Button Microphone (MIC) Right/Flash Button Delete Menu Type-C/HDMI Ports MIC interface... - Page 5 Closer Look (cont.) Flash Shutter Button Mode Dial Speaker Record Button Cold Shoe DISP Button Power Button Tripod Mounting Hole 26) Battery and SD Card Slot...
-
Page 6: Button Functions
Buttons/ Indicators Functions Playback Open/Exit Media Playback AE/AF Lock Auto Exposure(AE) and Auto Focus(AF) Indicator light Working / Charging Indicator Light Open Exposure Value(EV) Interface Up/EV Button Upward Pause & Play During Recording Confirm Confirm Open Flash Settings Interface Right/Flash Button Rightward Open Macro Settings Interface Left/Macro Button... -
Page 7: Battery Installation/Removal
Battery Installation/Removal This camera uses a high capacity rechargeable external lithium battery(NP-40). Slide the Memory Card/Battery Cover open. Carefully insert the battery with the polarity icons matching those found inside of the battery opening. The battery is secure when you hear a click. Charging the Battery Connect one end of the charging cable to the charging port located at the side of the camera. -
Page 8: Powering On & Off
Powering On the Camera Press the power button to turn the camera On and Off. Power Button Note: When turning the camera On for the first time press and hold the power button to turn it On. When removing an external battery note that after every installation to turn On the camera you must press and hold the power button. -
Page 9: Preview Screen
Preview Screen After turning on the camera the preview screen will be displayed. Below is an example preview screen. This number Indicates the current space available inside the 25304 inserted SD card for photos. It counts down as space is used. This icon shows the current timer for photos. -
Page 10: Camera Settings
Preview Screen (cont.) This icon shows the current flash setting. Using the Flash shortcut key opens the flash options. There are five choices for focus. Auto, Red-eye Reduction, Forced Flash, Slow Sync, No Forced Flash. The default is set to No forced Flash. Make sure any connected Flash Devices are turned on before use. -
Page 11: Available System Settings
Available System Settings Photography Settings: Sub-Menu Menu Content 64M (9200*6900), 32M (6480*4860), Resolution 16M (4608*3456), 8M (3264*2448) Quality Super Fine, Fine, Normal Auto, Daylight, Cloudy, Tungsten, Fluorescent Auto, ISO100, ISO200, ISO400, ISO800, ISO1600, ISO3200 Metering Multi, Center, Spot Model AF Lamp Auto, Turn On/Turn Off AE-L (Auto Exposure Lock), AF-L (Auto Focus AE-L&AF-L... - Page 12 Available System Settings (cont.) Video Settings: Sub-Menu Menu Content 4K (2880*2160), 2K (2560*1440), 1080P (1920*1080/60fps), 1080P (1920*1080/30fps), Resolution 720P Date Stamp Turn On/Turn Off Time-lapse video Off, 1 second, 3 seconds, 5 seconds recordingsensitivity Soft, Normal, Strong...
- Page 13 Provides 13 language options to choose from*. Language 50 Hz, 60 Hz Frequency Power-on sound, Shutter sound, Sound Operating volume Set Date Year, Month, Date, Hour, Minute, Second Format Cancel or Ok Default Cancel or Ok Version VIVITAR-202404 *English/German/French/Spanish/Italian/Turkiye/Russian/Portuguese/ Dutch/Simplified Chinese/Traditional Chinese/Japanese/Polish...
-
Page 14: Insert And Format The Memory Card
Insert and Format the Memory Card A class 10 or higher speed memory card is recommended for normal use. Insert the memory card into the memory card slot until you hear a “click”. Pay attention to the edges and corners. To remove the memory card: push the memory card in and it will automatically pop out. -
Page 15: Using The Camera
Using the Camera Taking a Photo Shutter Button Lightly press the Shutter button to take a quick shot. Full press to take a photograph. When taking a photo you can use the mode dial to change the current mode. Rotate the mode dial to select the desired mode. - Page 16 Using the Camera (cont.) Taking a Video Record Button Press the Record button to start and stop recording. Playback Mode Press the Playback button to enter playback mode. Press again to leave playback mode. Playback Button In playback mode use the Left and Right buttons to view photos and videos.
- Page 17 Using the Camera (cont.) Pressing the Menu button in playback mode will display the playback menu options. Slide Show: Select to create a slideshow from the photos saved on the camera. Set interval duration between slides and enable or disable looping. Protect: Use to lock photos.
-
Page 18: Playback In Hdtv
Playback in HDTV The high-definition interface of this camera can only be connected to a high definition TV, not to a computer. Insert the public port of an HD cable (not included) into the HD interface of the camera, and connect the other end of the port to the HD Input Interface of the HD TV. Note: Stop recording/playing videos before connecting/unplugging the HD cable. -
Page 19: Connect To Computer
Connect to a Computer 1. Connect one end of the included USB-C cable into the USB port on your camera. 2. Connect the other end of the included USB-C cable into an available USB port on your computer. 3. The camera will automatically turn ON if OFF when connected. The screen will display two options. -
Page 20: Connect To The App
Connecting to the App 1. Download the VD Cam App. Scan the below QR code or search for “VD Cam(Video Dimension Camera)” on the App Store. For Android search for “VD Cam” on Google Play. 2. Follow the “Help” menu on the app before use for the best user experience. -
Page 21: Troubleshooting
Troubleshooting If you encounter problems with the camera, please refer to this section. 1. The camera cannot be turned on after installing the battery: (1) The battery power is insufficient, please replace the battery with a new one or charge the battery. (2) The battery is installed in reverse, please confirm that the battery is installed in the correct way. -
Page 22: Fcc Compliance Statement
FCC Compliance Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 23: Vivitar Warranty Card
To Obtain Warranty Service and Troubleshooting Information: Call 1-800-592-9541 or Visit our website at www.vivitar.com. To receive Warranty service along with the name and address of an authorized product service center, the original consumer purchaser must contact us for problem determination and service procedures. - Page 24 You can find manuals, software and FAQ’s on the website. Can’t find what you are looking for? E-mail us at support@vivitar.com and one of our technical support team members will answer your questions. For phone support in the US please call 1-800-592-9541.
