| RC-828L/LB

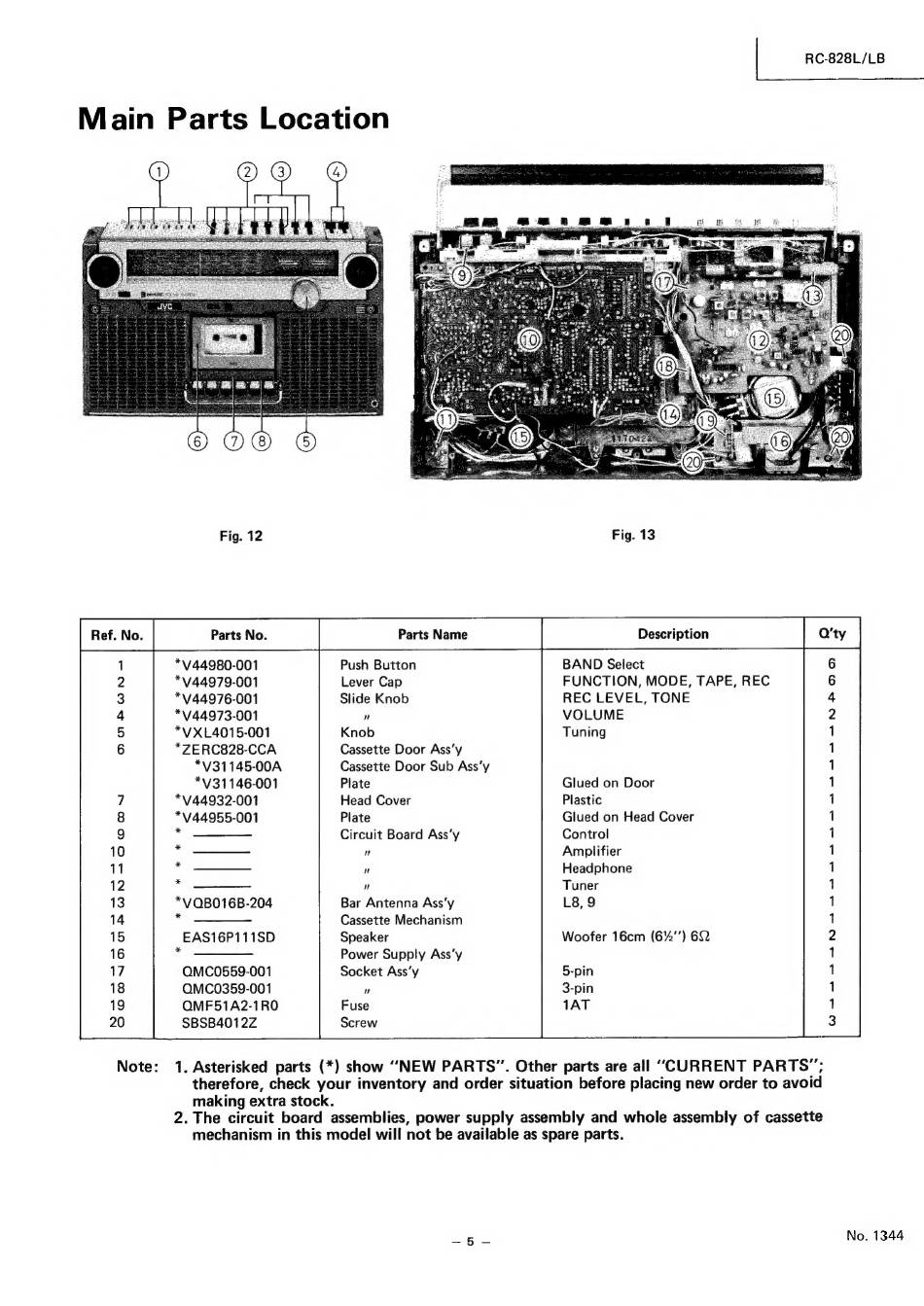

Main Parts Location
Fig. 12 Fig. 13
Tran [pwn nome [end |
*v44980-001 Push Button BAND Select 6
*V44979-001 Lever Cap FUNCTION, MODE, TAPE, REC 6
*V/44976-001 Slide Knob REC LEVEL, TONE 4
*V44973-001 " VOLUME 2
*VXL4015-001 Knob Tuning 1
*ZERC828-CCA Cassette Door Ass'y 1
*V31145-00A Cassette Door Sub Ass'y 1
*V31146-001 Plate Glued on Door 1
*V44932-001 Head Cover Plastic 1
*V44955-001 Plate Glued on Head Cover 1
* —____ Circuit Board Ass'y Control 1
Amplifier 1
Headphone 1
————_ Tuner 1
*VQB016B-204 Bar Antenna Ass'y L8,9 1
* —_—___ Cassette Mechanism 1
EAS16P111SD Speaker Woofer 16cm (6%"') 62 2
* ——. Power Supply Ass'y 1
QMC0559-001 Socket Ass'y 5-pin 1
QMC0359-001 " 3-pin 1
OMF51A2-1R0 Fuse 1AT 1
SBSB4012Z Screw 3
Note: 1. Asterisked parts (*) show "NEW PARTS". Other parts are all "CURRENT PARTS";
therefore, check your inventory and order situation before placing new order to avoid
making extra stock.
2. The circuit board assemblies, power supply assembly and whole assembly of cassette
mechanism in this model will not be available as spare parts.
a ae No. 1344
